SBTN01M-09
3.91
Details

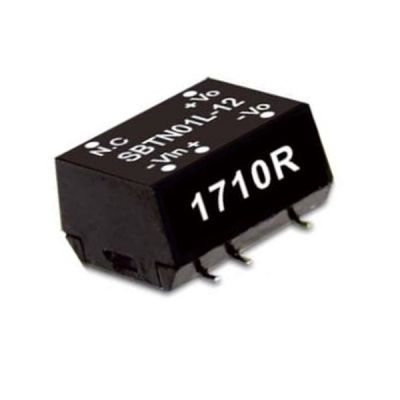

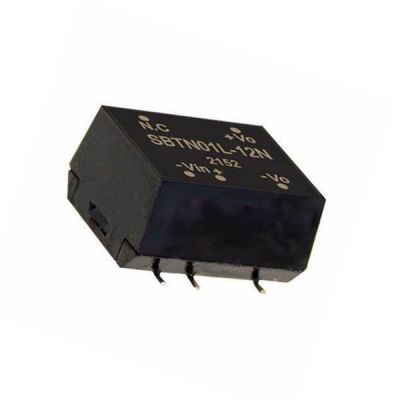

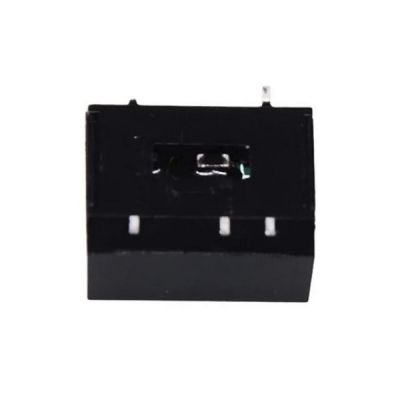

Meanwell SBTN01M-09 is 1W isolated unregulated DC- DC converter with 14mA107mA9V11.1~111mA. The item highlights module type and SMD package. Meanwhile, the main features are as following: international standard pins, high efficiency up to 84%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. Moreover, SBTN01M models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/9V/12V/15V for single output. Thanks to its longevity, excellent quality and high reliability, Meanwell SBTN01M-09 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SBTN01M-09 Encoding
| SBTN | Series Name |
| 01 | Rated Wattage |
| M | Input voltage (L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc ) |
| 09 | Output Voltage (5/9/12/15/Vdc |
| SC | Performance Difference |
| Blank | -40~ +90℃ working te mperature with max. 1 second short protection |
| SC | -40~+ 105℃ working temperature with continuous short protection |
Meanwell SBTN01M-09 Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SBTN01M-05 | 12V (10.8~13.2V) | 12mA | 112mA | 5V | 20~200mA | 79% | 220μF |
| SBTN01M-09 | 14mA | 107mA | 9V | 11.1~111mA | 78% | 220μF | |
| SBTN01M-12 | 12mA | 102mA | 12V | 8.4~84mA | 84% | 220μF | |
| SBTN01M-15 | 12mA | 102mA | 15V | 6.7~67mA | 83% | 220μF | |
| INPUT | VOLTAGE RANGE | L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 5Vin models: 9Vdc; 12Vin models: 16Vdc; 24Vin models: 30Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 5Vin models: 750mA Slow-Blow Type, 12Vin models: 300mA Slow-Blow Type, 24Vin models: 150mA Slow-Blow Type | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±2.0% | |||||
| RATED POWER | 1W | ||||||
| RIPPLE & NOISE | 75mVp-p | ||||||
| LINE REGULATION | 1.2% for 1% input variation | ||||||
| LOAD REGULATION | ±8% | ||||||
| SWITCHING FREQUENCY (Typ.) | 100KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Standard model: 0.5 second max. Optional models (SC-suffix): Continuous | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | Standard model: -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03%/℃ (0~85℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 10sec./240℃max. | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | UL62368-1 (Except for 9V output models), EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 80pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032(CISPR32) | N/A | |||||
| Radiated | BS EN/EN55032(CISPR32) | Class B | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3,±8KV air ; Level 2,±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV at power | |||||
| Surge | BS EN/EN61000-4-5 | Level 2, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V (e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | |||||
| OTHERS | MTBF | 880Khrs min. MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 12.9*10.9*7.1mm (0.50*0.43*0.28 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | Standard : 1.1g ; 38pcs/per tube, 4560pcs/120 tube/per carton Optional : 1.1g ; 500pcs/per reel, 2500pcs/5 reel/per carton |
||||||
Meanwell SBTN01M-09 Features
l High efficiency up to 84%
l Protection: Short circuit
l 1.5KVDC I/O isolation
l Low cost
l Optional reel packing
l 3 years warranty
l SMD package with industry standard pinout
l Operating temperature range -40~ +90℃
l Comply to BS EN/EN55032 radiated Class B without additional components
Meanwell SBTN01M-09 Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Telecom/datacom system
l Wireless network
l Industrial control facility
Meanwell SBTN01M-09 Mechanical Diagram
