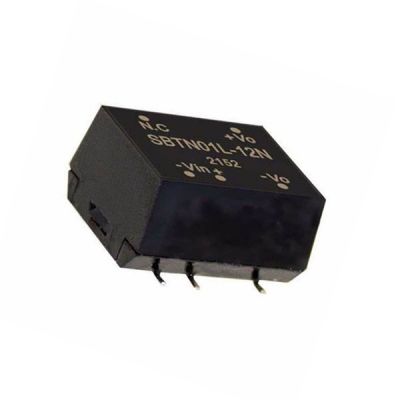

SBTN01L-09

$3.90

Meanwell 1W SMD Package DC-DC Unregulated Converter with 35mA260mA9V11.1~111mA

- +
Availability:In stock
SKU Meanwell SBTN01L-09
Brand Meanwell
Details

Meanwell SBTN01L-09 is 1W isolated unregulated DC- DC converter with 35mA260mA9V11.1~111mA. The unit highlights module type and SMD package. Meanwhile, the main features are as following: international standard pins, high efficiency up to 84%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. What’s more, SBTN01L models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/9V/12V/15V for single output. Thanks to its longevity, excellent quality and high reliability, Meanwell SBTN01L-09 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.Meanwell SBTN01L-09 price and specs 1W DC-DC Converter SBTN01L SBTN01L-05 SBTN01L-12 SBTN01L-15 35mA 9V ycict

Meanwell SBTN01L-09 Encoding

SBTN Series Name
01 Rated Wattage
L Input voltage (L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc )
09 Output Voltage (5/9/12/15/Vdc
SC Performance Difference
Blank -40~ +90 working te mperature with max. 1 second short protection
SC -40~+ 105 working temperature with continuous short protection

Meanwell SBTN01L-09 Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
SBTN01L-05 5V (4.5~5.5V) 30mA 270mA 5V 20~200mA 78% 220μF
SBTN01L-09 35mA 260mA 9V 11.1~111mA 77% 220μF
SBTN01L-12 30mA 257mA 12V 8.4~84mA 80% 220μF
SBTN01L-15 30mA 253mA 15V 6.7~67mA 79% 220μF
INPUT VOLTAGE RANGE L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc
SURGE VOLTAGE (100ms max.) 5Vin models: 9Vdc; 12Vin models: 16Vdc; 24Vin models: 30Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 5Vin models: 750mA Slow-Blow Type, 12Vin models: 300mA Slow-Blow Type, 24Vin models: 150mA Slow-Blow Type
OUTPUT VOLTAGE ACCURACY ±2.0%
RATED POWER 1W
RIPPLE & NOISE 75mVp-p
LINE REGULATION 1.2% for 1% input variation
LOAD REGULATION ±8%
SWITCHING FREQUENCY (Typ.) 100KHz
PROTECTION SHORT CIRCUIT Standard model: 0.5 second max. Optional models (SC-suffix): Continuous
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. Standard model: -40 ~ +90 (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.03%/ (0~85)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 10sec./240max.
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL62368-1 (Except for 9V output models), EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 80pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3,±8KV air ; Level 2,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V (e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
OTHERS MTBF 880Khrs min. MIL-HDBK-217F(25)
DIMENSION 12.9*10.9*7.1mm (0.50*0.43*0.28 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING Standard : 1.1g ; 38pcs/per tube, 4560pcs/120 tube/per carton
Optional : 1.1g ; 500pcs/per reel, 2500pcs/5 reel/per carton

Meanwell SBTN01L-09 Features

l  Low cost

l  High efficiency up to 84%

l  Protection: Short circuit

l  1.5KVDC I/O isolation

l  Optional reel packing

l  3 years warranty

l  SMD package with industry standard pinout

l  Operating temperature range -40~ +90℃

l  Comply to BS EN/EN55032 radiated Class B without additional components

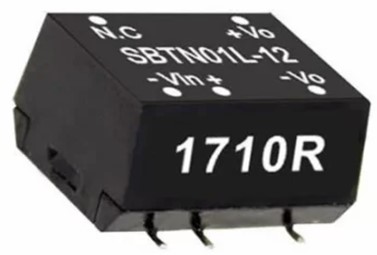

Meanwell SBTN01L-09 price and specs 1W DC-DC SMD Converter SBTN01L SBTN01L-05 SBTN01L-12 SBTN01L-15 35mA 9V ycict

Meanwell SBTN01L-09 Applications

l  Telecom/datacom system

l  Wireless network

l  Industrial control facility

l  Instrument

l  Analyzer

l  Detector

l  Data switch

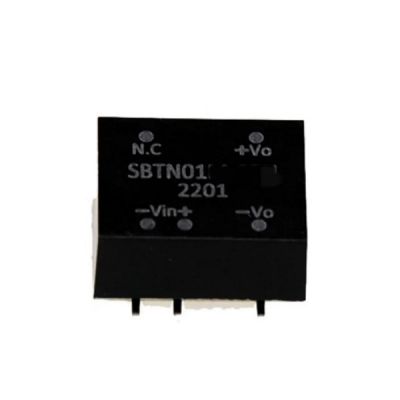

Meanwell SBTN01L-09 price and specs 1W DC-DC SMD package Converter SBTN01L SBTN01L-05 SBTN01L-12 SBTN01L-15 35mA ycict

Meanwell SBTN01L-09 Mechanical Diagram

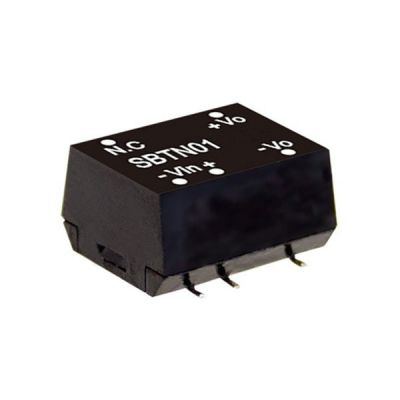

Meanwell SBTN01L-09 price and datasheet 1W DC-DC SMD Converter SBTN01L SBTN01L-05 SBTN01L-12 SBTN01L-15 35mA 9v ycict
