SBP-001
46.14
Details

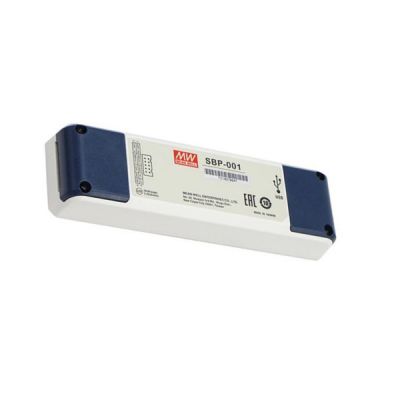

Meanwell SBP-001 Series is a programmer particularly for Meanwell various programmable battery charger models to program the parameters of charging curves such as constant current (CC), constant voltage (CV),float voltage (FV) and tapper current (TC), tapper current (TC) and so on, to accommodate the diversified battfor simplicity and convenience, users can easily configure Meanwell intelligent battery chargersery specification in industry. With the design accounting with SBP-001 programmer and the computer, all of the setups are able to be finished easily by the means of the specific software.
Meanwell SBP-001 Series Encoding
| Series Name |
| First Generation ( Smart Battery Programmer) |
Meanwell SBP-001 Series Specifications
| Model | SBP-001 | |
| FUNCTION | COMM. PC INTERFACE | Mini USB |
| COMM. PROGRAMMING INTERFACE | PMBus, CANBus, UART | |
| LED INDICATOR | Green: 3.3V interface Orange: 5V interface | |
| PROGRAMMING VOLT | 5V and 3.3V, for programming purpose only. Total 0.5W(max.) | |
| ENVIRONMENT | WORKING TEMP. | 0~ +40℃ |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -10 ~ +50℃, 10 ~ 95% RH non-condensing | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1 CB, EAC TP TC 004 approved |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-1(BS EN/EN50082-2), light industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 3103.9K hrs min. Telcordia SR-332 (Bellcore) ; 312.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 165*46*23mm (L*W*H) | |
| PACKING | 0.12Kg; 84pcs/11Kgs/1.81CUFT | |
Meanwell SBP-001 Product Features

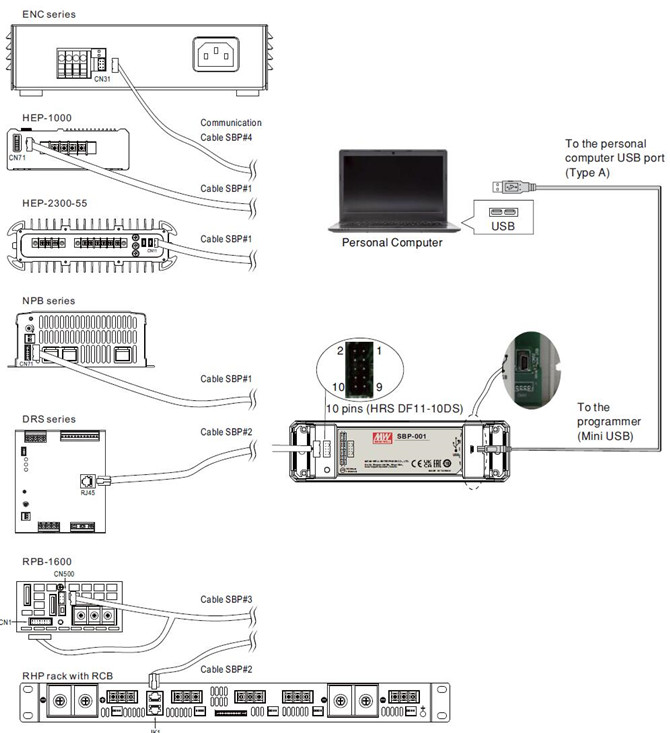

l For Meanwell’s intelligent battery chargers, Charging curve programmable suitable for models:
ENC-120/240/360
NPB-450/750/1200/1 700
DRS 240/480
HEP-1000, HEP-230-55
RPB/RCB-1 600
DBU/DBR-320O
l Simple connection and configuration
l No need of battery or AC power
l LED status indicator

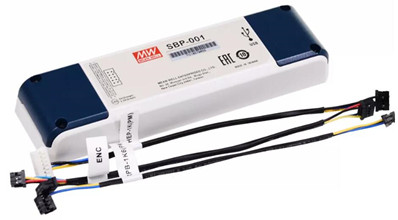

l Communication cables of SBP#1, SBP#2, SBP#3, SBP#4 included (USB cable Type A - Mini USB is not included)
Meanwell SBP-001 Series Applications
More Information
| Brand | Meanwell |
|---|
