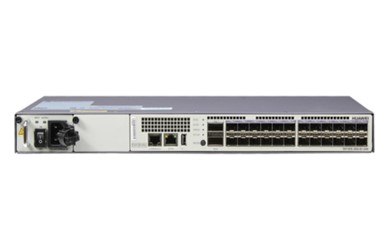

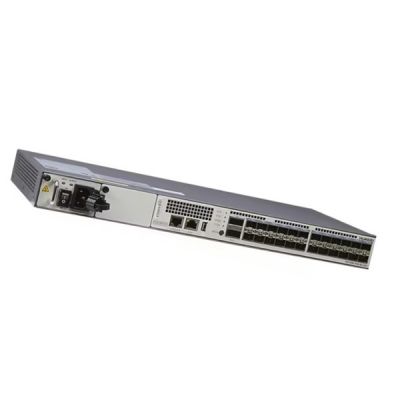

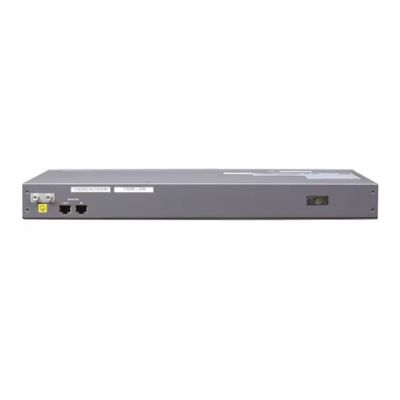

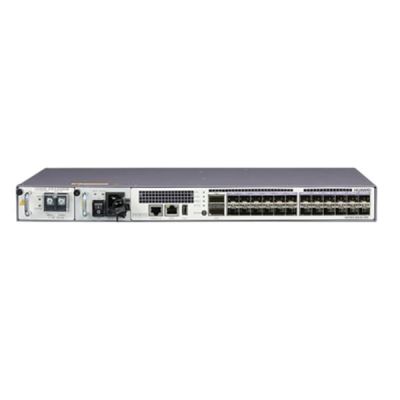

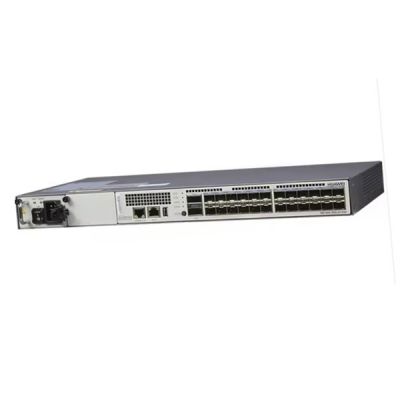

S6720S-26Q-EI-24S-AC
2289.95
Details

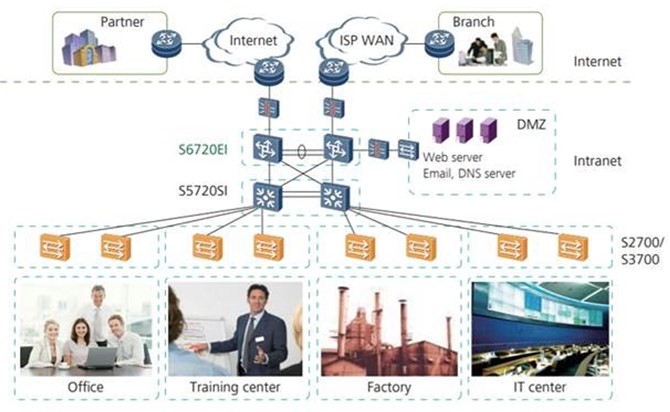

S6720S-26Q-EI-24S-AC is a next-generation 10GE fixed switch with 24 10GE SFP+ ports, 2 40GE QSFP+ ports. The product can function as an access switch in an Internet data center (IDC) or a core/aggregation switch on a campus network. Huawei S6720-EI has industry-leading performance and provides line-speed 10GE access ports and 40GE uplink ports. It can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 10 Gbit/s traffic aggregation. Additionally, S6720S-26Q-EI-24S-AC provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure data center networks.

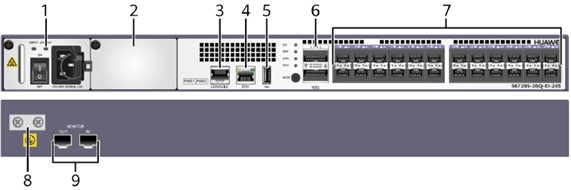

S6720S-26Q-EI-24S-AC Appearance and Structure
| 1, Power module slot 1 NOTE: Applicable power modules: W0PSA1701 (170 W AC Power Module) ES5M0PSD1700 (170 W DC Power Module) |
2, Power module slot 2 NOTE: Applicable power modules: W0PSA1701 (170 W AC Power Module) ES5M0PSD1700 (170 W DC Power Module) |
| 3, One console port | 4, One ETH management port |
| 5, One USB port | 6, Two 40GE QSFP+ ports Applicable modules and cables: QSFP+ optical module 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables 1 m, 3 m, and 5 m QSFP+ to 4*SFP+ high-speed copper cables 10 m QSFP+ to QSFP+ AOC cable 10 m QSFP+ to 4*SFP+ AOC cable NOTE: A 40GE QSFP+ optical port can be split into four 10GE ports. |
| 7, Twenty-four 10GE SFP+ ports Applicable modules and cables: GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module (100M/1000M auto-sensing supported) 10GE SFP+ optical module (OSXD22N00 and SFP-10G-ZR not supported) 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack copper cables (the last 16 ports are supported, used for zero-configuration stacking, supported in V200R011C10 and later versions) |
8, Ground screw NOTE: It is used with a ground cable. The switch has two ground screws, any of which can be used to install a ground cable. |
| 9, Monitoring port NOTE: This port is reserved and cannot be used currently. |
S6720S-26Q-EI-24S-AC Specifications
| Item | Description |
| Brand | Huawei |
| Part number | 02350MTR |
| Model | S6720S-26Q-EI-24S-AC |
| Port | 24 10GE SFP+ ports, 2 40GE QSFP+ ports |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 69.53 years |
| Mean time to repair (MTTR) | 2 |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode |
| Weight (with packaging) | 5.4 kg (11.91 lb) |
| Stack ports | Any 40GE QSFP+ ports (a maximum of 2 physical ports) |
| Any 10GE SFP+ ports (a maximum of 16 physical ports) | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -36 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 143.4 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 108.59 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 67.1 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.) DC power modules configured: 0-2000 m (0-6562 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 222.3 mm (1.75 in. x 17.4 in. x 8.75 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 44.4 mm x 442.0 mm x 250.0 mm (1.75 in. x 17.4 in. x 9.84 in.) |
S6720S-26Q-EI-24S-AC Features
l Provide sufficient bandwidth for users, many servers, particularly those in data centers, use 10G network adapters. The S6720-EI provides high-density 10GE ports and can be used in data centers to provide high forwarding performance and large switching capacity. Each S6720-EI provides up to six line-speed QSFP+ ports and 48 line-speed 10GE ports.
l Support GE and 10GE access and can identify optical module types, maximizing the return on investment (ROI) and allowing users to flexibly deploy services.
l Has a large buffering capacity and uses an advanced buffer scheduling mechanism to ensure non-block transmission when data center traffic volume is high.
S6720-EI Series Switches
S6720-30C-EI-24S-AC 24 10GE SFP+ ports, 2 40GE QSFP+ ports Double hot swappable AC power supplies
S6720-30C-EI-24S-DC 24 10GE SFP+ ports, 2 40GE QSFP+ ports Double hot swappable DC power supplies
S6720-54C-EI-48S-AC 48 10GE SFP+ ports, 2 40GE QSFP+ ports Double hot swappable AC power supplies
S6720-54C-EI-48S-DC 48 10GE SFP+ ports, 2 40GE QSFP+ ports Double hot swappable DC power supplies
S6720S-26Q-EI-24S-AC 24 10GE SFP+ ports, 2 40GE QSFP+ ports Double hot swappable AC power supplies
S6720S-26Q-EI-24S-DC 24 10GE SFP+ ports, 2 40GE QSFP+ ports Double hot swappable DC power supplies
