RST-5000-48
1132.59
Details

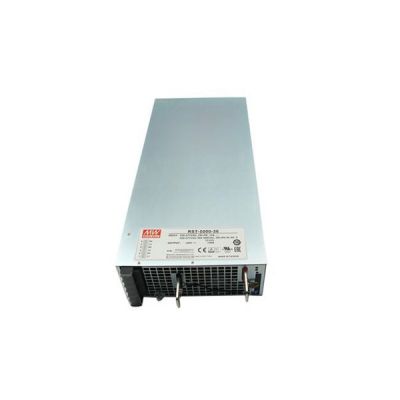

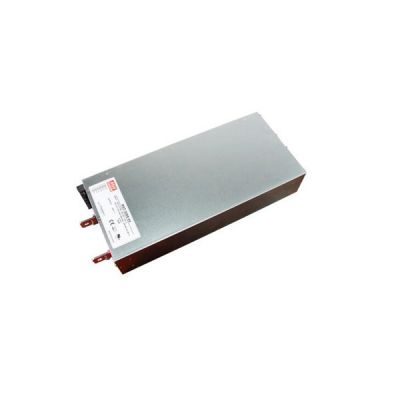

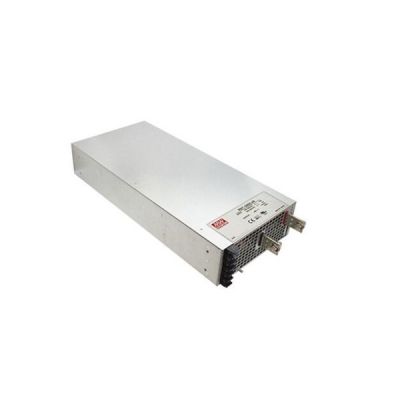

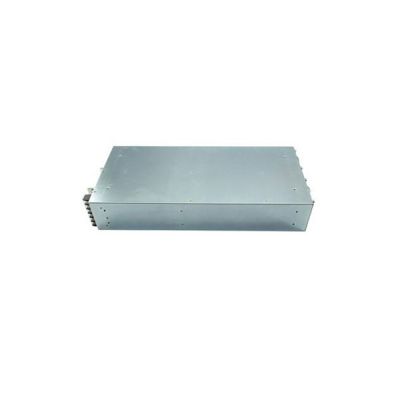

Meanwell RST-5000-48 is a 5KW single output enclosed type AC/DC power supply with 48V105A0-105A5040W200 mVp-p47-57.6V. It operates for the wide range three phase AC input (3 phase 3 wire/ Δ196~305VAC or 3 phase 4 wire / Y 340~ 530VAC). Meanwhile, RST-5000-48 is supplied with the DC output mostly needed from the industry. The model is cooled by the built-in fan with fan speed control. In addition, the product could work for the temperature up to 70℃ with the high efficiency up to 90.5%. Besides them, RST- 5000-48 provides vast design flexibility by offering various built-in functions such as the output programming, active current sharing, remote ON-OF F control, auxiliary power, etc. and also equipped with the complete protection functions such as Short circuit, Overload, Over voltage, Over temperature and Fan fail. In light of its longevity, high reliability and powerful performance, Meanwell RST-5000-48 serves as a high performance power supply solution for various industrial applications such as automation equipment, industrial control equipment, laser engraving machines, telecommunication systems and any application that requires high operating power.
Meanwell RST-5000-48 Encoding
| RST | Series Name |
| 5000 | Output Wattage |
| 24 | Output Voltage ( 24V/48V) |
Meanwell RST-5000-48 Specifications
| Model | RST-5000-48 | |
| Output | DC VOLTAGE | 48V |
| RATED CURRENT | 105A | |
| CURRENT RANGE | 0-105A | |
| RATED POWER | 5040W | |
| RIPPLE & NOISE (max.) | 200 mVp-p | |
| VOLTAGE ADJ. RANGE | 47-57.6V | |
| Can be adjusted via built-in potentiometer | ||
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 2200ms, 80ms at full load | |
| HOLD UP TIME | 20ms / 230VAC at 75% load 14ms / 230VAC at full load | |
| Input | VOLTAGE RANGE | З ѱ З-wіrе/ Δ 196~З05VАС оr Зѱ 4-wіrе / Y З40~5З0VАС |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.95/230VAC (400 VAC at full load | |
| EFFICIENCY (Typ.) | 90.50% | |
| AC CURRENT (Typ.) | 15A/230VAC(3ψ 3-wire / △) 9A/400VAC(3ψ 4-wire / Y) | |
| INRUSH CURRENT (Typ. ) | 75A/230VAC(3ψ 3-wire / △) 50A/400VAC(3ψ 4-wire / Y) | |
| LEAKAGE CURR ENT | <3.5mA /△305VAC(Y 530VAC) | |
| PROTECTION | OVERLOAD | 100 ~ 112% rated output power |
| User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 5 seconds, re-power on to recover | ||
| OVER VOLTAGE | 60 ~ 67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.3V. Please refer to the Function Manual. |
| CURRENT SHARING | Up to 20000W or (3+1) units. Please refer to the Function Manual | |
| OUTPUT VOLTAGE PROGRAMMABLE | Adjustment of output voltage is allowable to between 20 ~ 120% of nominal output voltage. | |
| CONSTANT CURRENT LEVEL PROGRAMMABLE | Adjustment of constant current level is allowable to between 20 ~ 100% of rated current. Please refer to the Function Manual | |
| AUXILIARY POWER(AUX) | 12V@0.1A (Only for Remote ON-OFF control) | |
| REMOTE ON-OFF CONTROL | Please refer to the Function Manual. | |
| ALARM SIGNAL OUTPUT | AC fail, DC OK, fan fail, OTP. Please refer to the Function Manual. | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |
| Others | MTBF | 293.3K hrs min. Telcordia SR-332 (Bellcore) ; 34.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 460*211*83.5mm (L*W*H) | |
| PACKING | 10Kg; 1pcs/10.1Kg/0.85CUFT | |
Meanwell RST-5000-48 Features
l 5 years warranty
l Built-in active PFC function
l High efficiency up to 90.5%
l Forced air cooling by built-in DC fan
l Active current sharing up to 20000W (3+1)
l Output voltage and constant current level programmable
l З ѱ З-wіrе/ Δ 196~З05VАС оr Зѱ 4-wіrе / Y З40~5З0VАС wide input range
l Protections: Short circuit/Overload/Over voltage/Over temperature/Fan fail
l Built-in remote ON-OFF control / Remote sense/ Auxilary power/Alarm signal
Meanwell RST-5000-48 Applications
l Burn-in facility
l RF application
l Constant current source
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Electric scooter or vehicle charger station
Meanwell RST-5000-48 Mechanical Diagram
