RST-10000
2488.46
Details

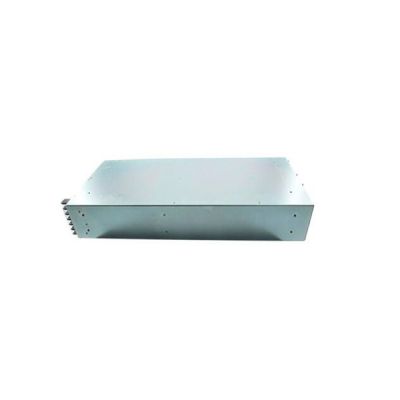

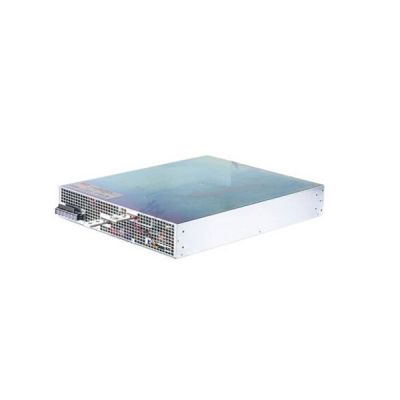

Meanwell RST-10000 Series is a 10KW single output enclosed type AC/DC power supply. The entire series operates for the wide range three phase AC input (3 phase 3 wire/ Δ196~305VAC or 3 phase 4 wire / Y 340~ 530VAC). Moreover, RST-10000 is equipped with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control. At the same time, they could work for the temperature up to 70℃ with the high efficiency up to 90.5%. Additionally, RST- 10000 series provides vast design flexibility via various built-in functions such as the output programming, active current sharing, remote ON-OF F control, auxiliary power, etc. Apart from them, the series provides the complete protection functions such as Short circuit, Overload, Over voltage, Over temperature and Fan fail. Considering its longevity, high reliability and powerful performance, Meanwell RST-10000 Series serves as a high performance power supply solution for various industrial applications such as automation equipment, industrial control equipment, laser engraving machines, telecommunication systems and any application that requires high operating power.
Meanwell RST-10000 Series Encoding
| RST | Series Name |
| 10000 | Output Wattage |
| 24 | Output Voltage ( 24V/36V/48V) |
Meanwell RST-10000 Series Model Specifications
| Model | RST-10000-24 | RST-10000-36 | RST-10000-48 | |
| Output | DC VOLTAGE | 24V | 36V | 48V |
| RATED CURRENT | 400A | 276A | 210A | |
| CURRENT RANGE | 0-400A | 0-276A | 0-210A | |
| RATED POWER | 9600W | 9936W | 10080W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | 200 mVp-p | 200 mVp-p | |
| VOLTAGE ADJ. RANGE | 23.5-28.8V | 35-43.2V | 47-57.6V | |
| Can be adjusted via built-in potentiometer | ||||
| VOLTAGE TOLERANCE | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 2200ms, 80ms at full load | |||
| HOLD UP TIME | 20ms / 230VAC at 75% load 14ms / 230VAC at full load | |||
| Input | VOLTAGE RANGE | З ѱ З-wіrе/ Δ 196~З05VАС оr Зѱ 4-wіrе / Y З40~5З0VАС | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.95/230VAC (400 VAC at full load | |||
| EFFICIENCY (Typ.) | 88.50% | 89.50% | 90.50% | |
| AC CURRENT (Typ.) | 30A/230VAC(3ψ 3-wire / △) 18A/400VAC(3ψ 4-wire / Y) | |||
| INRUSH CURRENT (Typ. ) | 150A/230VAC(3ψ 3-wire / △) 100A/400VAC(3ψ 4-wire / Y) | |||
| LEAKAGE CURR ENT | <7.0mA /△305VAC(Y 530VAC) | |||
| PROTECTION | OVERLOAD | 100 ~ 112% rated output power | ||
| User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 5 seconds, re-power on to recover | ||||
| OVER VOLTAGE | 30 ~ 33.6V | 45 ~ 50.4V | 60 ~ 67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.3V. Please refer to the Function Manual. | ||
| CURRENT SHARING | Up to 20000W or (3+1) units. Please refer to the Function Manual | |||
| AUXILIARY POWER(AUX) | 12V@0.1A (Only for Remote ON-OFF control) | |||
| OUTPUT VOLTAGE PROGRAMMABLE | Adjustment of output voltage is allowable to between 20 ~ 120% of nominal output voltage. Please refer to the Function Manual. | |||
| CONSTANT CURRENT LEVEL PROGRAMMABLE | Adjustment of constant current level is allowable to between 20 ~ 100% of rated current. Please refer to the Function Manual | |||
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:open Power OFF:short. Please refer to the Function Manual | |||
| ALARM SIGNAL OUTPUT | AC fail, DC OK, fan fail, OTP. Please refer to the Function Manual. | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, IS13252(Part1)/IEC60950-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) | Class A | ||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | ||
| Harmonic Current | BS EN/EN61000-3-2 | ---- | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | Level 4, 4KV/Line-Earth ; Level 3, 2KV/Line-Line | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 147.5K hrs min. Telcordia SR-332 (Bellcore) ; 17.1K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 540*424*83.5mm (L*W*H) | |||
| PACKING | 23.5Kg; 1pcs/23.5Kg/2.82CUFT | |||
Meanwell RST-10000 Series Features
l З ѱ З-wіrе/ Δ 196~З05VАС оr Зѱ 4-wіrе / Y З40~5З0VАС wide input range
l Built-in active PFC function
l High efficiency up to 90.5%
l Forced air cooling by built-in DC fan
l Output voltage and constant current level programmable
l Active current sharing up to 20000W (1+1)
l Built-in remote ON-OFF control / Remote sense
l Auxilary power / Alarm signal
l Protections: Short circuit/Overload/Over voltage/Over temperature/Fan fail
l 5 years warranty
Meanwell RST-10000 Series Applications
l Burn-in facility
l RF application
l Laser related machine
l Constant current source
l Electric scooter or vehicle charger station
l Factory control or automation apparatus
l Test and measurement instrument
Meanwell RST-10000 Series Mechanical Diagram
