RST-10000-24
2488.46

RST-10000-24

$2,488.46

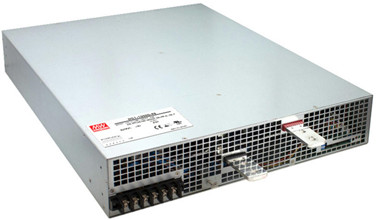

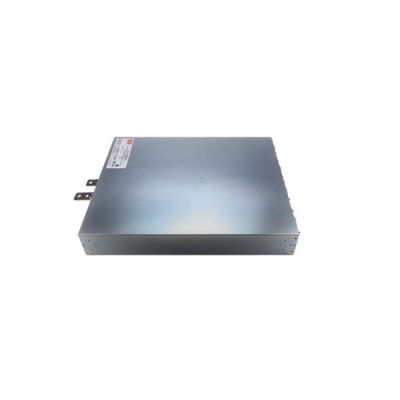

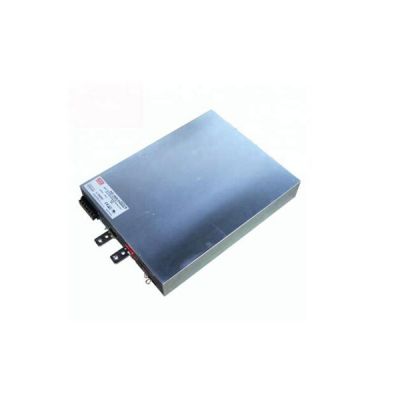

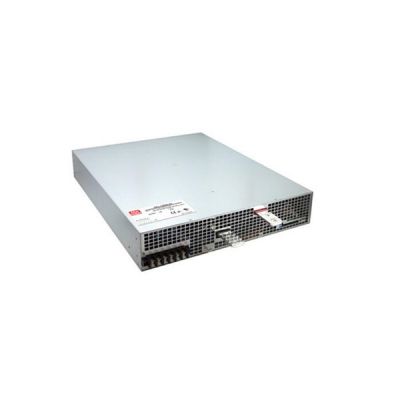

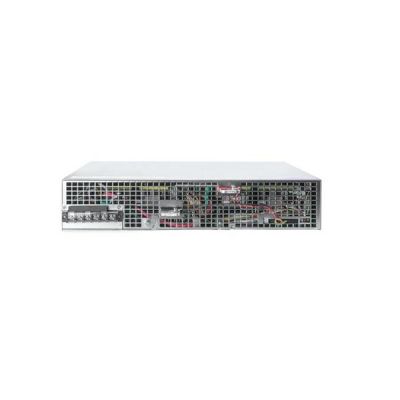

Meanwell 10KW single output enclosed type AC/DC power supply with 24V400A0-400A9600W150 mVp-p23.5-28.8V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell RST-10000-24
Brand Meanwell
Details

Meanwell RST-10000-24 is a 10KW single output enclosed type AC/DC power supply with 24V400A0-400A9600W150 mVp-p23.5-28.8V. The product operates for the wide range three phase AC input (3 phase 3 wire/ Δ196~305VAC or 3 phase 4 wire / Y 340~ 530VAC). What’s more, RST-10000-24 is equipped with the DC output mostly needed from the industry. The model is cooled by the built-in fan with fan speed control. Apart from them, it could work for the temperature up to 70℃ with the high efficiency reaching up to 90.5%. In addition, RST- 10000-24 provides vast design flexibility  via various built-in functions such as the output programming, active current sharing, remote ON-OF F control, auxiliary power, etc. Furthermore, it offers the complete protection functions such as Short circuit, Overload, Over voltage, Over temperature and Fan fail. Due to its longevity, high reliability and powerful performance, Meanwell RST-10000-24 functions as a high performance power supply solution for various industrial applications such as automation equipment, industrial control equipment, laser engraving machines, telecommunication systems and any application that requires high operating power.

Meanwell RST-10000-24 RST-10000 price and specs ac dc single output enclosed type 10kw ycict

Meanwell RST-10000-24 Encoding

RST Series Name
10000 Output Wattage
24 Output Voltage ( 24V/36V/48V)

Meanwell RST-10000-24 Specifications

Model RST-10000-24
Output DC VOLTAGE 24V
RATED CURRENT 400A
CURRENT RANGE 0-400A
RATED POWER 9600W
RIPPLE & NOISE (max.)  150 mVp-p
VOLTAGE ADJ. RANGE 23.5-28.8V
Can be adjusted via built-in potentiometer
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 2200ms, 80ms at full load
HOLD UP TIME  20ms / 230VAC at 75% load 14ms / 230VAC at full load
Input VOLTAGE RANGE З ѱ З-wіrе/ Δ 196~З05VАС оr Зѱ 4-wіrе / Y З40~5З0VАС
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 0.95/230VAC (400 VAC  at full load
EFFICIENCY (Typ.)  88.50%
AC CURRENT (Typ.) 30A/230VAC(3ψ 3-wire / ) 18A/400VAC(3ψ 4-wire / Y)
INRUSH CURRENT (Typ. ) 150A/230VAC(3ψ 3-wire / ) 100A/400VAC(3ψ 4-wire / Y)
LEAKAGE CURR ENT <7.0mA /305VAC(Y 530VAC)
PROTECTION OVERLOAD 100 ~ 112% rated output power
User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 5 seconds, re-power on to recover
OVER VOLTAGE 30 ~ 33.6V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE SENSE Compensate voltage drop on the load wiring up to 0.3V. Please refer to the Function Manual.
CURRENT SHARING Up to 20000W or (3+1) units. Please refer to the Function Manual
AUXILIARY POWER(AUX) 12V@0.1A (Only for Remote ON-OFF control)
OUTPUT VOLTAGE PROGRAMMABLE Adjustment of output voltage is allowable to between 20 ~ 120% of nominal output voltage. Please refer to the Function Manual.
CONSTANT CURRENT LEVEL PROGRAMMABLE Adjustment of constant current level is allowable to between 20 ~ 100% of rated current. Please refer to the Function Manual
REMOTE ON-OFF CONTROL By electrical signal or dry contact Power ON:open Power OFF:short. Please refer to the Function Manual
ALARM SIGNAL OUTPUT AC fail, DC OK, fan fail, OTP. Please refer to the Function Manual.
ENVIRONMENT WORKING TEMP -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, IS13252(Part1)/IEC60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55024, BS EN/EN61000-6-2
Others MTBF 147.5K hrs min. Telcordia SR-332 (Bellcore) ; 17.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 540*424*83.5mm (L*W*H)
PACKING 23.5Kg; 1pcs/23.5Kg/2.82CUFT

Meanwell RST-10000-24 Features

l  5 years warranty

l  Auxilary power / Alarm signal

l  Built-in active PFC function

l  High efficiency up to 90.5%

l  Forced air cooling by built-in DC fan

l  Output voltage and constant current level programmable

l  Active current sharing up to 20000W (1+1)

l  Built-in remote ON-OFF control / Remote sense

l  Protections: Short circuit/Overload/Over voltage/Over temperature/Fan fail

l  З ѱ З-wіrе/ Δ 196~З05VАС оr Зѱ 4-wіrе / Y З40~5З0VАС wide input range

Meanwell RST-10000-24 Meanwell RST-10000-24 price and specs AC DC enclodes single output 10kw rst

Meanwell RST-10000-24 Applications

l  Burn-in facility

l  RF application

l  Laser related machine

l  Constant current source

l  Test and measurement instrument

l  Electric scooter or vehicle charger station

l  Factory control or automation apparatus

Meanwell RST-10000-24 Meanwell RST-10000-24 price and specs AC DC enclodes single output 10kw meanwell ycict

Meanwell RST-10000-24 Mechanical Diagram

Meanwell RST-10000-24 Mechanical Diagram rst-10000 price and specs ac dc single output 10kw pfc ycict

Meanwell RST-10000-24 Meanwell RST-10000-24 price and specs AC DC enclodes single output 10kw meanwell RST YCICT
