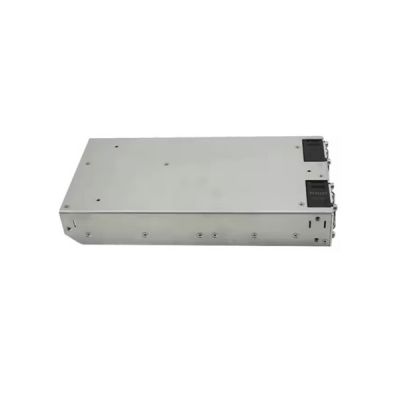

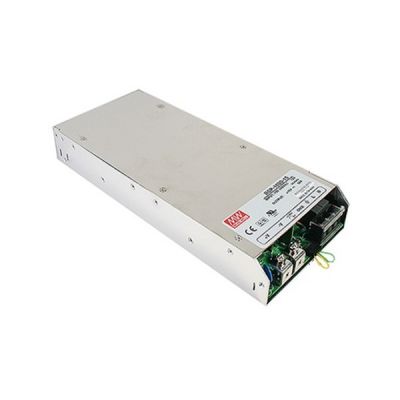

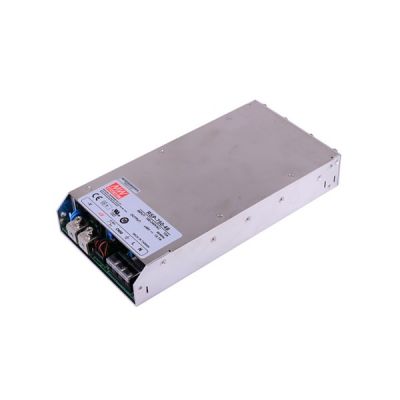

RSP-750
150.24
Details
Meanwell RSP-750 Series is a 750W single output enclosed type AC/DC power supply. This entire series is designed low profile, which is very suitable for industrial equipment where space is limited. With the high efficiency up to 92% and PFC function, RSP-750 operates for 90~264VACinput voltage and equipped with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, and they could work for the temperature up to 70℃. Moreover, RSP-750 provides vast design flexibility by equipping various built-in functions such as the output programming, remote ON-OFF control, auxiliary power, etc. Apart from them, the series offers the complete protection functions such as Short circuit, Overload, Over voltage, Over temperature. Considering its longevity, high reliability and powerful performance, Meanwell RSP-750 Series serves as a high performance power supply solution for various industrial applications such as industrial control systems, IC test equipment, instrumentation, telecommunications, data storage, laser engraving machines, charging systems and so on.
Meanwell RSP-750 Series Encoding
| RSP | Series Name |
| 750 | Output Wattage |
| 48 | Output Voltage ( 5V/12V/15V/24V/27V/48V) |
Meanwell RSP-750 Series Model Specifications
| Model | RSP-750-5 | RSP-750-12 | RSP-750-15 | RSP-750-24 | RSP-750-27 | RSP-750-48 | |
| Output | DC VOLTAGE | 5V | 12V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 100A | 62.5A | 50A | 31.3A | 27.8A | 15.7A | |
| CURRENT RANGE | 0-100A | 0-62.5A | 0-50A | 0-31.3A | 0-27.8A | 0-15.7A | |
| RATED POWER | 500W | 750W | 750W | 751.2W | 750.6W | 753.6W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75-5.5V | 10-13.5V | 13.5-16.5V | 20-26.4V | 24-30V | 43-55V | |
| VOLTAGE TOLERANCE | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms at full load | ||||||
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | ||||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR (Typ.) | 0.97/230VAC 0.98/115VAC at full load | ||||||
| EFFICIENCY (Typ.) | 82.00% | 87.00% | 89.00% | 90.50% | 90.50% | 92.00% | |
| AC CURRENT (Typ.) | 5V : 5.6A/115VAC 2.8A/230VAC 12V~48V : 8.2A/115VAC 3.9A/230VAC | ||||||
| INRUSH CURRENT (Typ. ) | 25A/115VAC 40A/230VAC | ||||||
| LEAKAGE CURR ENT | <2.0mA / 240VAC | ||||||
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power | |||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 5.75-6.75V | 13.8-16.8V | 17-20.5V | 27.6-32.4V | 31-36.5V | 56.6-66.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 110% of nominal output voltage | |||||
| CONSTANT CURRENT LEVEL PROGRAMMABLE(PC | Adjustment of constant current level is allowable to 40 ~ 110% of rated current | ||||||
| AUXILIARY POWER | 12V @ 0.1A ; tolerance : ±10% | ||||||
| REMOTE ON-OFF CONTROL | Power on : short between Remote ON-OFF(pin13) & 12V-AUX(pin14) on CN50 Power off : open between Remote ON-OFF(pin13) & 12-AUX(pin14) on CN50 | ||||||
| DC OK SIGNAL | The TTL signal out, power supply turn on = 0 ~ 1V ; power supply turn off = 3.3 ~ 5.6V | ||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | Class A | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | |||||
| Harmonic Current | BS EN/EN61000-3-2 | ---- | |||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | |||||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, CCC GB17625.1,GB/T9254, BSMI CNS13438 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | |||||
| Radiated | BS EN/EN61000-4-3 | Level 3 | |||||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | |||||
| Surge | BS EN/EN61000-4-5 | Level 4, 4KV/Line-Earth ; Level 3, 2KV/Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 3 | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | |||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||||
| Others | MTBF | 1036.8K hrs min. Telcordia SR-332 (Bellcore) ; 109.2K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 250*127*41mm (L*W*H) | ||||||
| PACKING | 1.64Kg; 6pcs/10.8Kg/1.1CUFT | ||||||
Meanwell RSP-750 Series Features
l Universal AC input/ Full range
l Built-in active PFC function
l High efficiency up to 92%
l Forced air cooling by built-in DC fan
l Output voltage and constant current level programmable
l Built-in remote ON-OFF control / remote sense /auxiliary power/DC OK signal
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Optional conformal coating
l 5 years warranty
Meanwell RSP-750 Series Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Burn-in facility
l RF application

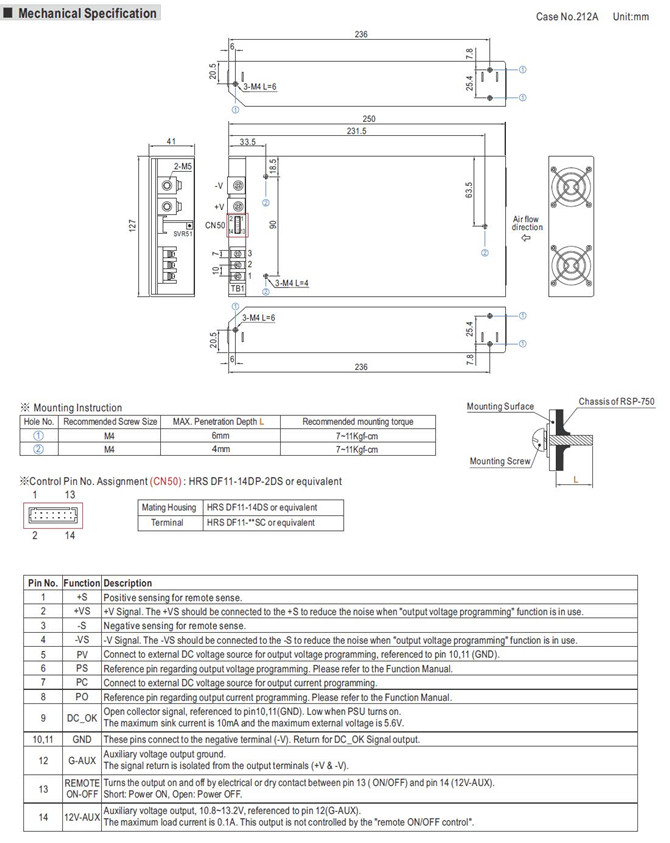

Meanwell RSP-750 Series Mechanical Diagram
