RSP-750-48
155.83
Details

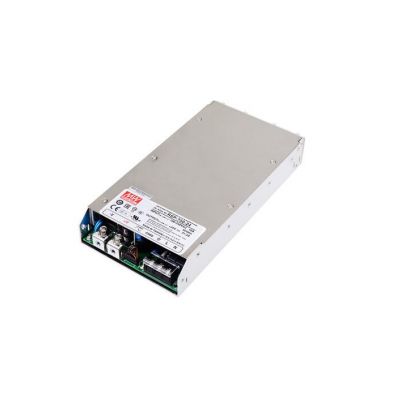

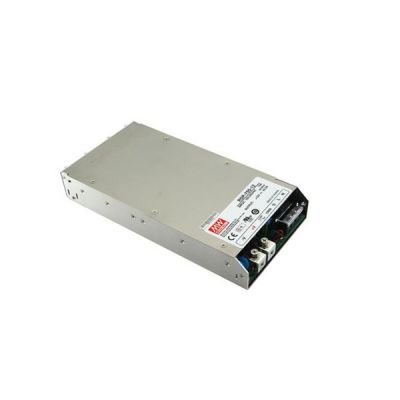

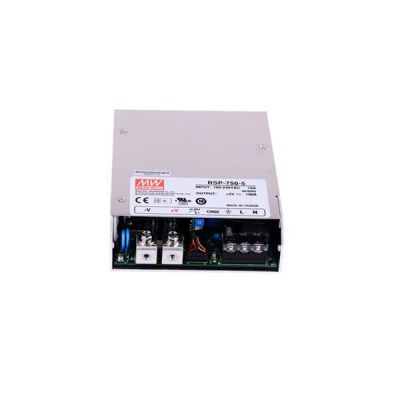

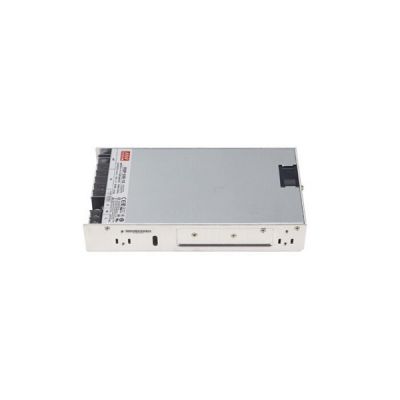

Meanwell RSP-750-48 is a 750W single output enclosed type AC/DC power supply with 48V15.7A0-15.7A753.6W150 mVp-p43-55V. The unit is designed low profile, which is very suitable for industrial equipment with limited space. Since the efficiency reaches up to 92% and PFC function included, RSP-750-48 is able to work for 90~264VACinput voltage and supplied with the DC output mostly demanded from the industry. The model is cooled by the built-in fan with fan speed control, and could operate for the temperature under up to 70℃. What’s more, RSP-750-48 provides vast design flexibility via various built-in functions such as the output programming, remote ON-OFF control, auxiliary power, etc. Besides them, RSP-750-48 offers the complete protection functions such as Short circuit, Overload, Over voltage, Over temperature. Because of its longevity, high reliability and powerful performance, Meanwell RSP-750-48 serves as a high performance power supply solution for various industrial applications such as industrial control systems, IC test equipment, instrumentation, telecommunications, data storage, laser engraving machines, charging systems and so on.
Meanwell RSP-750-48 Encoding
| RSP | Series Name |
| 750 | Output Wattage |
| 48 | Output Voltage ( 5V/12V/15V/24V/27V/48V) |
Meanwell RSP-750-48 Specifications
| Model | RSP-750-48 | |
| Output | DC VOLTAGE | 48V |
| RATED CURRENT | 15.7A | |
| CURRENT RANGE | 0-15.7A | |
| RATED POWER | 753.6W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | |
| VOLTAGE ADJ. RANGE | 43-55V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.97/230VAC 0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 92.00% | |
| AC CURRENT (Typ.) | 5V : 5.6A/115VAC 2.8A/230VAC 12V~48V : 8.2A/115VAC 3.9A/230VAC | |
| INRUSH CURRENT (Typ. ) | 25A/115VAC 40A/230VAC | |
| LEAKAGE CURR ENT | <2.0mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 56.6-66.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 110% of nominal output voltage |
| CONSTANT CURRENT LEVEL PROGRAMMABLE(PC | Adjustment of constant current level is allowable to 40 ~ 110% of rated current | |
| AUXILIARY POWER | 12V @ 0.1A ; tolerance : ±10% | |
| REMOTE ON-OFF CONTROL | Power on : short between Remote ON-OFF(pin13) & 12V-AUX(pin14) on CN50 Power off : open between Remote ON-OFF(pin13) & 12-AUX(pin14) on CN50 | |
| DC OK SIGNAL | The TTL signal out, power supply turn on = 0 ~ 1V ; power supply turn off = 3.3 ~ 5.6V | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, CCC GB17625.1,GB/T9254, BSMI CNS13438 | |
| Others | MTBF | 1036.8K hrs min. Telcordia SR-332 (Bellcore) ; 109.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 250*127*41mm (L*W*H) | |
| PACKING | 1.64Kg; 6pcs/10.8Kg/1.1CUFT | |
Meanwell RSP-750-48 Features
l 5 years warranty
l High efficiency up to 92%
l Built-in active PFC function
l Optional conformal coating
l Universal AC input/ Full range
l Forced air cooling by built-in DC fan
l Output voltage and constant current level programmable
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Built-in remote ON-OFF control / remote sense /auxiliary power/DC OK signal
Meanwell RSP-750-48 Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Burn-in facility
l RF application
l Laser related machine
Meanwell RSP-750-48 Mechanical Diagram
