RSP-75-15
51.24
Details

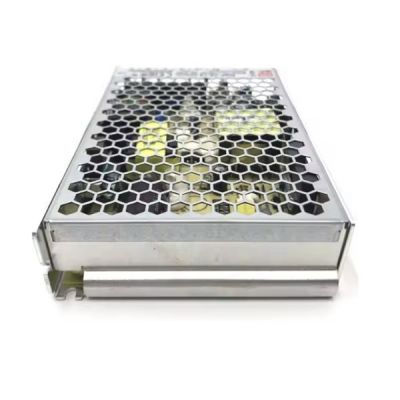

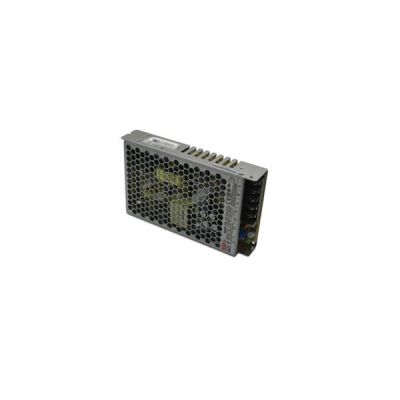

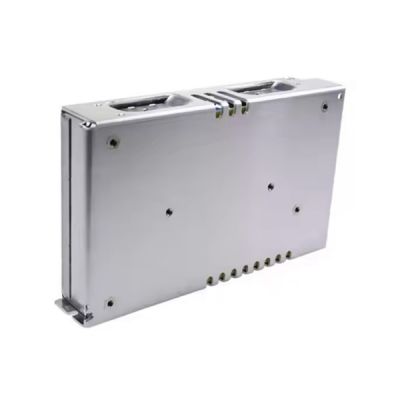

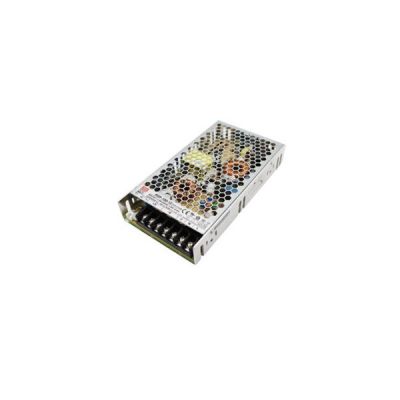

Meanwell RSP-75-15 is 75W single output enclosed type AC/DC power supply with15V5A0-5A75W. The model can operate for 85-264VAC input voltage and provides DC output mostly demanded from the industry. Besides, RSP-75-15 is cooled by free air convection, and works under the temperature reaching up to 70 ℃. Considering its high efficiency, long longevity and high reliability, Meanwell RSP-75-15 functions as a high price-to-performance power supply solution for various industrial applications.
Meanwell RSP-75-15 Specifications
| Model | RSP-75-15 | |
| Output | DC VOLTAGE | 15V |
| RATED CURRENT | 5A | |
| CURRENT RANGE | 0-5A | |
| RATED POWER | 75W | |
| RIPPLE & NOISE (max.) mVp-p | 120 | |
| VOLTAGE ADJ. RANGE | 14.3-16.5V | |
| VOLTAGE TOLERANCE | ±2% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 600ms, 30ms at full load | |
| HOLD UP TIME | 16ms at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 86.00% | |
| AC CURRENT (Typ.) | 0.9A/115VAC 0.5A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 35A/230VAC | |
| LEAKAGE CURR ENT | <2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 16.5-20.25V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | REMOTE CONTROL | CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF |
| ENVIRONMENT | WORKING TEMP | -25 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| OVER VOLTAGE CATEGORY | Ⅲ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1,BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438, GB9254 Class B, GB17625.1 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 296.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 159*97*30mm (L*W*H) | |
| PACKING | 0.44Kg; 30pcs/14.2Kg/0.9CUFT | |
Meanwell RSP-75-15 Features
l Universal AC input/ Full range
l Built-in active PFC function
l High efficiency up to 89%
l Cooling byfree air convection
l Built-in remote ON-OFF control
l LED indicator for power on
l 3 years warranty
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell RSP-75-15 Applications
l Burn-in facility
l RF application
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
Meanwell RSP-75-15 Mechanical Diagram
