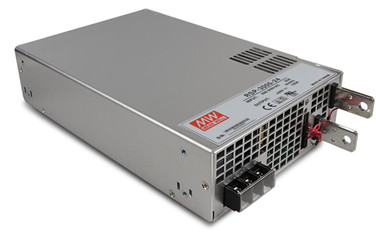

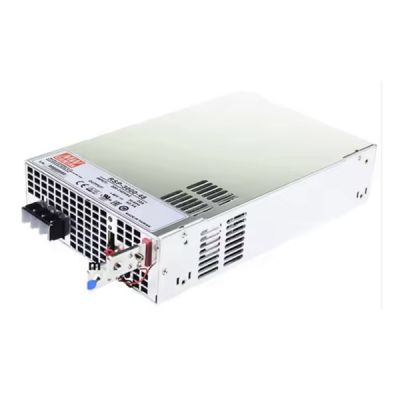

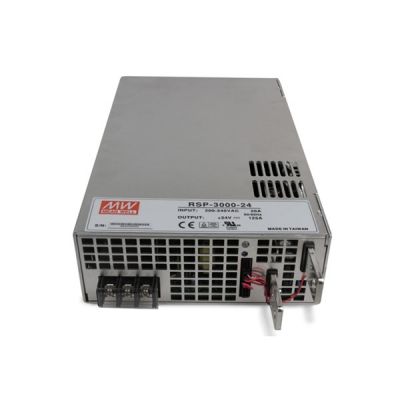

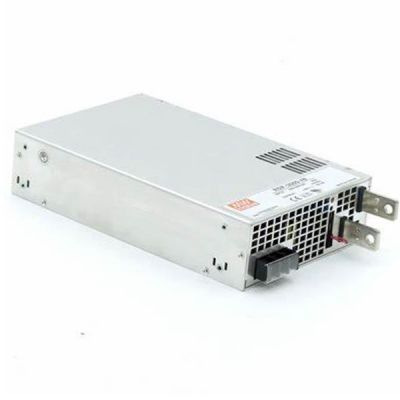

RSP-3000-24
583.46
Details
Meanwell RSP-3000-24 is a 3000W single output enclosed type AC/DC power supply with 24V125A0-125A3000W150 mVp-p22-28V±1%±0.5%±0.5%. It is designed low profile and built-in PFC function. The product works for 180~264VACinput voltage and equipped with the DC output mostly demanded from the industry. Additionally, the efficiency reaches high up to 91.5% and Active current shares up to 9000W (2+1). The model is cooled by the built-in fan with fan speed control. and able to work for the temperature up to 70℃. Apart from them, Meanwell RSP-3000-24 provides the vast design flexibility via the various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc. What’s more, the item offers the complete protections such as Short circuit, Overload, Over voltage and Over temperature. Thanks to its longevity, high reliability and excellent quality, Meanwell RSP-3000-24 serves as a high-performance power supply solution for various industrial applications such as Laser related machines, Aging facility, digital broadcasting and RF application, etc.
Meanwell RSP-3000-24 Encoding
| RSP | Series Name |
| 3000 | Output Wattage |
| 24 | Output Voltage (12V/24V/48V) |
Meanwell RSP-3000-24 Specifications
| Model | RSP-3000-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 125A | |
| CURRENT RANGE | 0-125A | |
| RATED POWER | 3000W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | |
| VOLTAGE ADJ. RANGE | 22-28V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 80ms at full load | |
| HOLD UP TIME | 10ms at full load | |
| Input | VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.95/230VAC at full load | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT (Typ.) | 20A/180VAC 16A/230VAC | |
| INRUSH CURRENT (Typ. ) | 60A/230VAC | |
| LEAKAGE CURR ENT | <2.0mA / 240VAC | |
| PROTECTION | OVERLOAD | 100 ~ 112% rated output power |
| User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 5 seconds, re-power on to recover | ||
| OVER VOLTAGE | 28.8 ~ 33.6V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | 4.8 ~ 28V |
| CURRENT SHARING | Up to 9000W or (2+1) units. Please refer to the Function Manual | |
| AUXILIARY POWER | 12V@0.1A(Only for Remote ON-OFF control) | |
| REMOTE ON-OFF CONTROL | Please refer to the Function Manual | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.25V. Please refer to the Function Manual | |
| ALARM SIGNAL OUTPUT | Power OK signal. Please refer to the Function Manual | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, IS13252(Part1)/IEC60950-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | |
| Others | MTBF | 677.3K hrs min. Telcordia SR-332 (Bellcore) ; 75.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 278*177.8*63.5mm (L*W*H) | |
| PACKING | 4Kg; 4pcs/16Kg/2.04CUFT | |
Meanwell RSP-3000-24 Features
l AC input 180~264VAC
l Built-in active PFC function
l High efficiency up to 91.5%
l Forced air cooling by built-in DC fan
l Output voltage programmable
l Active current sharing up to 9000W (2+1)
l Built-in remote ON-OFF control/remote sense/auxiliary power/power OK signal
l Protections: Short circuit/ Overload /Over voltage/Over temperature
l Optional conformal coating
l 5 years warranty
Meanwell RSP-3000-24 Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Digital broadcasting
l Burn-in facility
l RF application
Meanwell RSP-3000-24 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
