RSP-3000-12
581.11
Details

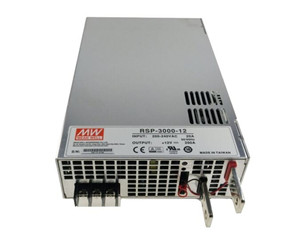

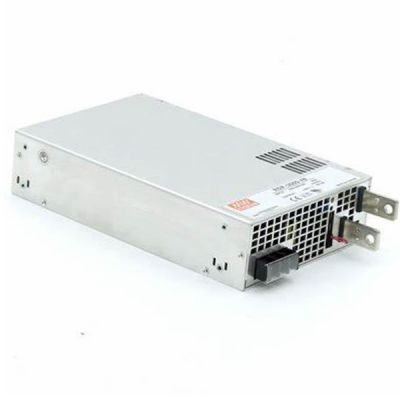

Meanwell RSP-3000-12 is a 3000W single output enclosed type AC/DC power supply with 12V200A0-200A2400W150 mVp-p10.8-13.2V. The product is designed low profile and built-in PFC function. It operates for 180~264VACinput voltage and equipped with the DC output mostly demanded from the industry. Moreover, the efficiency reaches high up to 91.5% and Active current sharing up to 9000W (2+1). The model is cooled by the built-in fan with fan speed control. and could work for the temperature up to 70℃. In addition to them, Meanwell RSP-3000-12 provides the vast design flexibility via the various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc. At the same time, the unit offers the complete protections such as Short circuit, Overload, Over voltage and Over temperature. It passes UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, IS13252(Part1)/IEC60950-1, EAC TP TC 004 approved. Due to its longevity, high reliability and excellent quality, Meanwell RSP-3000-12 functions as a high-performance power supply solution for various industrial applications such as Laser related machines, Aging facility, digital broadcasting and RF application, etc.
Meanwell RSP-3000-12 Encoding
| RSP | Series Name |
| 3000 | Output Wattage |
| 12 | Output Voltage (12V/24V/48V) |
Meanwell RSP-3000-12 Specifications
| Model | RSP-3000-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 200A | |
| CURRENT RANGE | 0-200A | |
| RATED POWER | 2400W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8-13.2V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 80ms at full load | |
| HOLD UP TIME | 10ms at full load | |
| Input | VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.95/230VAC at full load | |
| EFFICIENCY (Typ.) | 87.50% | |
| AC CURRENT (Typ.) | 20A/180VAC 16A/230VAC | |
| INRUSH CURRENT (Typ. ) | 60A/230VAC | |
| LEAKAGE CURR ENT | <2.0mA / 240VAC | |
| PROTECTION | OVERLOAD | 100 ~ 112% rated output power |
| User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 5 seconds, re-power on to recover | ||
| OVER VOLTAGE | 13.8 ~ 16.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | 2.4 ~ 13.2V |
| CURRENT SHARING | Up to 9000W or (2+1) units. Please refer to the Function Manual | |
| AUXILIARY POWER | 12V@0.1A(Only for Remote ON-OFF control) | |
| REMOTE ON-OFF CONTROL | Please refer to the Function Manual | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.25V. Please refer to the Function Manual | |
| ALARM SIGNAL OUTPUT | Power OK signal. Please refer to the Function Manual | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, IS13252(Part1)/IEC60950-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | |
| Others | MTBF | 677.3K hrs min. Telcordia SR-332 (Bellcore) ; 75.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 278*177.8*63.5mm (L*W*H) | |
| PACKING | 4Kg; 4pcs/16Kg/2.04CUFT | |
Meanwell RSP-3000-12 Features
l Optional conformal coating
l 5 years warranty
l AC input 180~264VAC
l Built-in active PFC function
l High efficiency up to 91.5%

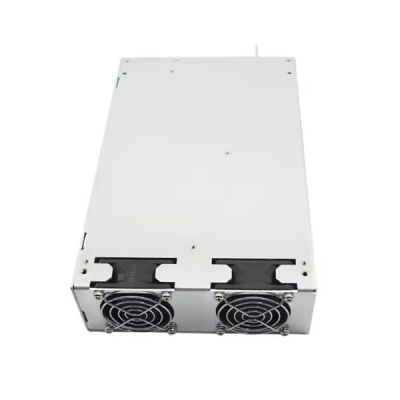

l Forced air cooling by built-in DC fan
l Output voltage programmable
l Active current sharing up to 9000W (2+1)
l Built-in remote ON-OFF control/remote sense/auxiliary power/power OK signal
l Protections: Short circuit/ Overload /Over voltage/Over temperature
Meanwell RSP-3000-12 Applications
l Burn-in facility
l Digital broadcasting
l RF application
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
Meanwell RSP-3000-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
