RSP-2000
310.48
Details

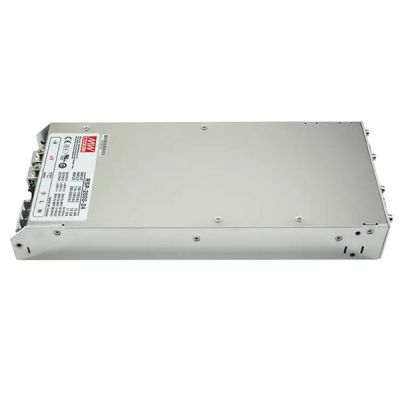

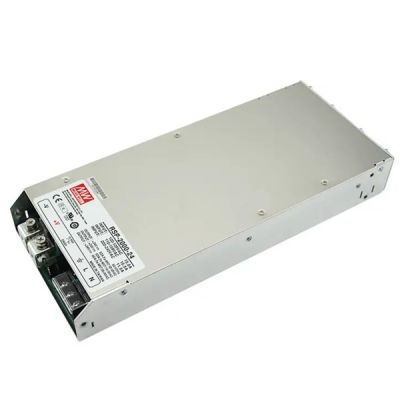

Meanwell RSP-2000 Series is a 2000W single output enclosed type AC/DC power supply. The entire series is designed 1U low profile with PFC function. Since the high efficiency reaches up to 92% with Universal AC input/Full range and Active current sharing up to 8000W (3+1), RSP-2000 operates for 90~264VACinput voltage and offered with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control. and they could work for the temperature up to 70℃. What’s more, RSP-2000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc. Apart from them, the series provides the complete protections such as Short circuit, Overload, Over voltage and Over temperature. Considering its longevity, high reliability and excellent quality, Meanwell RSP-2000 Series serves as a high-performance power supply solution for various industrial applications such as industrial control systems, IC test equipment, instrumentation, telecommunications, data storage, laser engraving machines, charging systems and so on.
Meanwell RSP-2000 Series Encoding
| RSP | Series Name |
| 2000 | Output Wattage |
| 48 | Output Voltage (12V/24V/48V) |
Meanwell RSP-2000 Series Model Specifications
| Model | RSP-2000-12 | RSP-2000-24 | RSP-2000-48 | |
| Output | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 100A | 80A | 42A | |
| CURRENT RANGE | 0-100A | 0-80A | 0-42A | |
| RATED POWER | 1200W | 1920W | 2016W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | 200 mVp-p | 300 mVp-p | |
| VOLTAGE ADJ. RANGE | 10.5-14V | 21-28V | 42-56V | |
| VOLTAGE TOLERANCE | ±2% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC at full load | |||
| HOLD UP TIME | 16ms/230VAC at 75% load 10ms/230VAC at full load | |||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 320VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |||
| EFFICIENCY (Typ.) | 87.00% | 90.50% | 92.00% | |
| AC CURRENT (Typ.) | 13A/115VAC 7A/230VAC | 16A/115VAC 10A/230VAC | 16A/115VAC 10A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A | |||
| LEAKAGE CURR ENT | <2mA / 240VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power | ||
| Protection type : Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover | ||||
| OVER VOLTAGE | 14.7 ~ 17.5V | 29.5 ~ 35V | 57.6 ~ 67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 115% of nominal output voltage | ||
| CURRENT SHARING | Up to 8000W or (3+1) units. Please refer to the Function Manual. | |||
| AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | |||
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:open Power OFF:short | |||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V | |||
| DC OK SIGNAL | The isolated TTL signal out. Please refer to the Function Manual | |||
| ENVIRONMENT | WORKING TEMP | -35 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | ||
| Harmonic Current | BS EN/EN61000-3-2 | --- | ||
| Voltage Flicker | BS EN/EN61000-3-3 | --- | ||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | Level 4, 4KV/Line-Earth ; Level 3, 2KV/Line-Line | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 487.7K hrs min. Telcordia SR-332 (Bellcore) ; 42.9K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 295*127*41mm (L*W*H) | |||
| PACKING | 1.95Kg; 6pcs/12.7Kg/1.15CUFT | |||
Meanwell RSP-2000 Series Features
l Universal AC input/Full range
l Built-in active PFC function
l High efficiency up to 92%
l Forced air cooling by built-in DC fan
l Output voltage programmable
l Active current sharing up to 8000W (3+1)
l Built-in remote ON-OFF control/remote sense/auxiliary power/DC OK signal/OTP alarm signal
l Protections: Short circuit/Overload /Over voltage/Over temperature ,
l Optional conformal coating
l 5 years warranty
Meanwell RSP-2000 Series Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Burn-in facility
l Digital broadcasting
l RF application

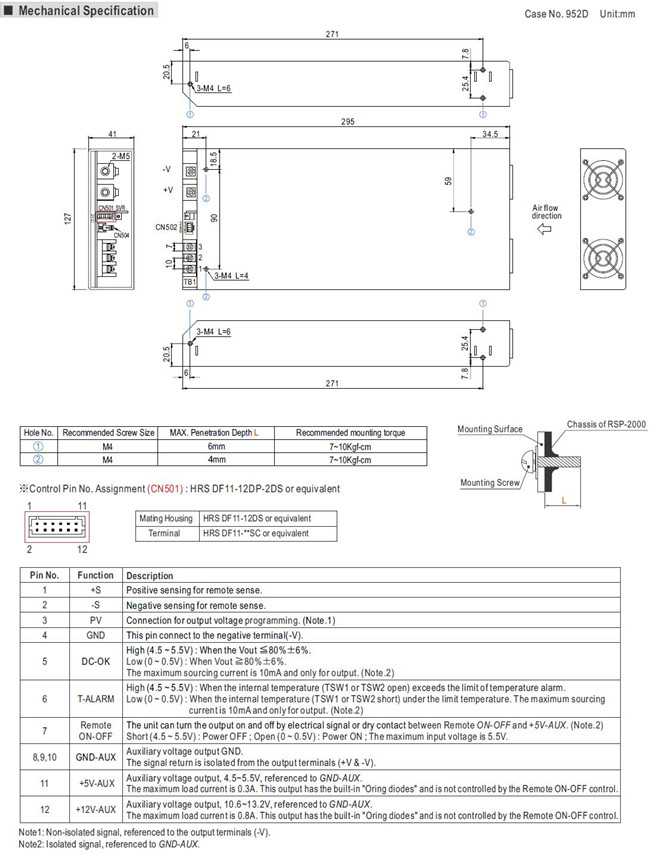

Meanwell RSP-2000 Series Mechanical Diagram
