RSP-2000-48
318.29
Details

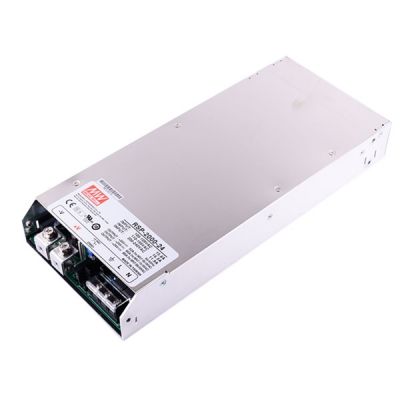

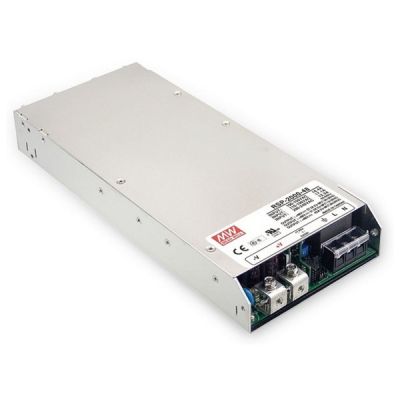

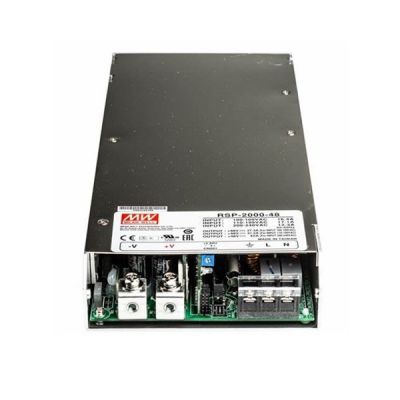

Meanwell RSP-2000-48 is a 2000W single output enclosed type AC/DC power supply with 48V42A0-42A2016W300 mVp-p42-56V. The item is designed 1U low profile and PFC function. With the high efficiency reaching up to 92% and active current sharing up to 8000W (3+1), Meanwell RSP-2000-48 is able to operate for 90~264VACinput voltage and offered with the DC output mostly demanded from the industry. The model is cooled by the built-in fan with fan speed control. and work for the temperature up to 70℃. Apart from them, Meanwell RSP-2000-48 provides the vast design flexibility by various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc. What’s more, the item provides the complete protections such as Short circuit, Overload, Over voltage and Over temperature. As a result of its longevity, high reliability and excellent quality, Meanwell RSP-2000-48 serves as a high-performance power supply solution for various industrial applications such as industrial control systems, IC test equipment, instrumentation, telecommunications, data storage, laser engraving machines, charging systems and so on.
Meanwell RSP-2000-48 Encoding
| RSP | Series Name |
| 2000 | Output Wattage |
| 48 | Output Voltage (12V/24V/48V) |
Meanwell RSP-2000-48 Specifications
| Model | RSP-2000-48 | |
| Output | DC VOLTAGE | 48V |
| RATED CURRENT | 42A | |
| CURRENT RANGE | 0-42A | |
| RATED POWER | 2016W | |
| RIPPLE & NOISE (max.) | 300 mVp-p | |
| VOLTAGE ADJ. RANGE | 42-56V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC at full load | |
| HOLD UP TIME | 16ms/230VAC at 75% load 10ms/230VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 320VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |
| EFFICIENCY (Typ.) | 92.00% | |
| AC CURRENT (Typ.) | 16A/115VAC 10A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A | |
| LEAKAGE CURR ENT | <2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power |
| Protection type : Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover | ||
| OVER VOLTAGE | 57.6 ~ 67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 115% of nominal output voltage |
| CURRENT SHARING | Up to 8000W or (3+1) units. Please refer to the Function Manual. | |
| AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:open Power OFF:short | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V | |
| DC OK SIGNAL | The isolated TTL signal out. Please refer to the Function Manual | |
| ENVIRONMENT | WORKING TEMP | -35 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | |
| Others | MTBF | 487.7K hrs min. Telcordia SR-332 (Bellcore) ; 42.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 295*127*41mm (L*W*H) | |
| PACKING | 1.95Kg; 6pcs/12.7Kg/1.15CUFT | |
Meanwell RSP-2000-48 Features
l 5 years warranty
l Built-in active PFC function
l High efficiency up to 92%
l Output voltage programmable
l Optional conformal coating
l Forced air cooling by built-in DC fan
l Universal AC input/Full range
l Active current sharing up to 8000W (3+1)
l Protections: Short circuit/Overload /Over voltage/Over temperature ,
l Built-in remote ON-OFF control/remote sense/auxiliary power/DC OK signal/OTP alarm signal
Meanwell RSP-2000-48 Applications
l Burn-in facility
l Digital broadcasting
l RF application
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
Meanwell RSP-2000-48 Mechanical Diagram
