RSP-2000-12
310.48
Details

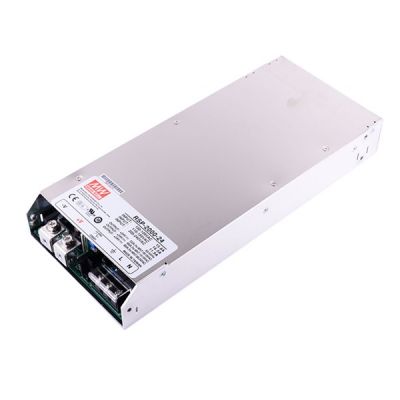

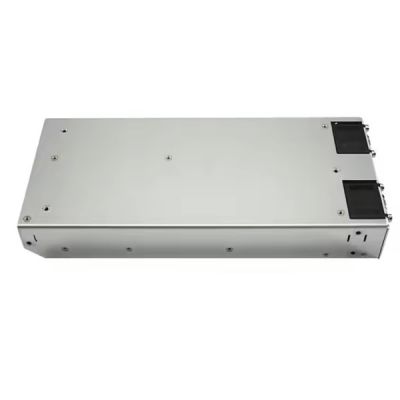

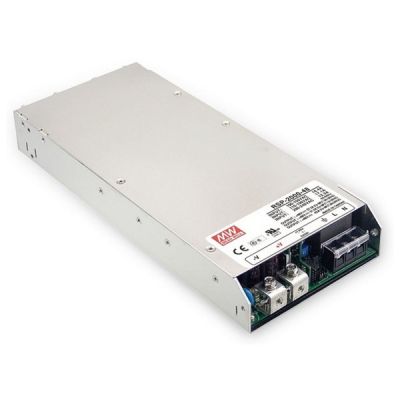

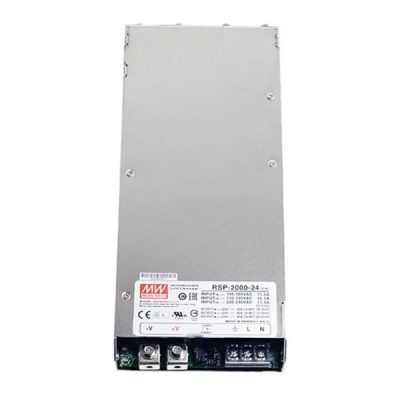

Meanwell RSP-2000-12 is a 2000W single output enclosed type AC/DC power supply with 12V100A0-100A1200W150 mVp-p10.5-14V. The product is designed 1U low profile and PFC function. As the efficiency reaches up high to 92% with Universal AC input/Full range and Active current sharing up to 8000W (3+1), RSP-2000-12 is able to work for 90~264VACinput voltage and equipped with the DC output mostly demanded from the industry. The model is cooled by the built-in fan with fan speed control. and could operate for the temperature up to 70℃. Additionally, Meanwell RSP-2000-12 provides vast design flexibility by various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc. Apart from them, it provides the complete protections such as Short circuit, Overload, Over voltage and Over temperature. Thanks to its longevity, high reliability and excellent quality, Meanwell RSP-2000-12 serves as a high-performance power supply solution for various industrial applications such as industrial control systems, IC test equipment, instrumentation, telecommunications, data storage, laser engraving machines, charging systems and so on.
Meanwell RSP-2000-12 Encoding
| RSP | Series Name |
| 2000 | Output Wattage |
| 12 | Output Voltage (12V/24V/48V) |
Meanwell RSP-2000-12 Specifications
| Model | RSP-2000-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 100A | |
| CURRENT RANGE | 0-100A | |
| RATED POWER | 1200W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | |
| VOLTAGE ADJ. RANGE | 10.5-14V | |
| VOLTAGE TOLERANCE | ±2% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC at full load | |
| HOLD UP TIME | 16ms/230VAC at 75% load 10ms/230VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 320VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT (Typ.) | 13A/115VAC 7A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A | |
| LEAKAGE CURR ENT | <2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power |
| Protection type : Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover | ||
| OVER VOLTAGE | 14.7 ~ 17.5V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 115% of nominal output voltage |
| CURRENT SHARING | Up to 8000W or (3+1) units. Please refer to the Function Manual. | |
| AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:open Power OFF:short | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V | |
| DC OK SIGNAL | The isolated TTL signal out. Please refer to the Function Manual | |
| ENVIRONMENT | WORKING TEMP | -35 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | |
| Others | MTBF | 487.7K hrs min. Telcordia SR-332 (Bellcore) ; 42.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 295*127*41mm (L*W*H) | |
| PACKING | 1.95Kg; 6pcs/12.7Kg/1.15CUFT | |
Meanwell RSP-2000-12 Features
l Optional conformal coating
l 5 years warranty
l Universal AC input/Full range
l Built-in active PFC function
l High efficiency up to 92%
l Forced air cooling by built-in DC fan
l Output voltage programmable
l Active current sharing up to 8000W (3+1)
l Protections: Short circuit/Overload /Over voltage/Over temperature ,
l Built-in remote ON-OFF control/remote sense/auxiliary power/DC OK signal/OTP alarm signal
Meanwell RSP-2000-12 Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Digital broadcasting
l Burn-in facility
l RF application
Meanwell RSP-2000-12 Mechanical Diagram
