RSP-1600-12
290.37
Details

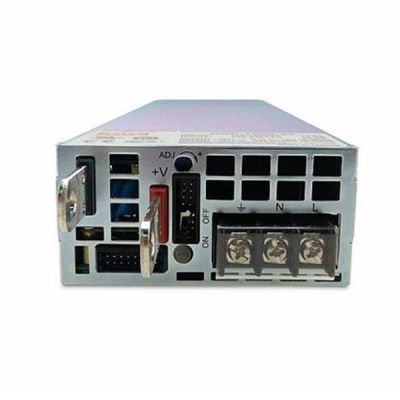

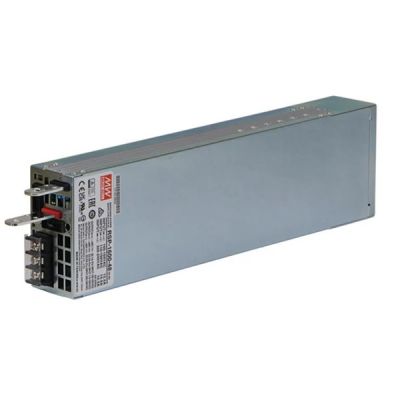

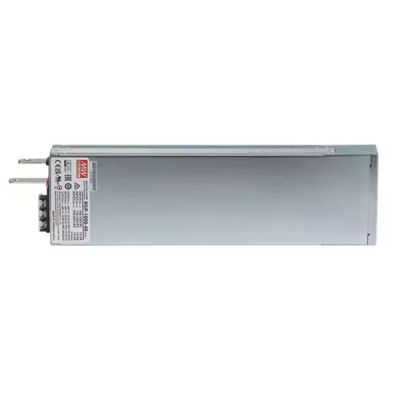

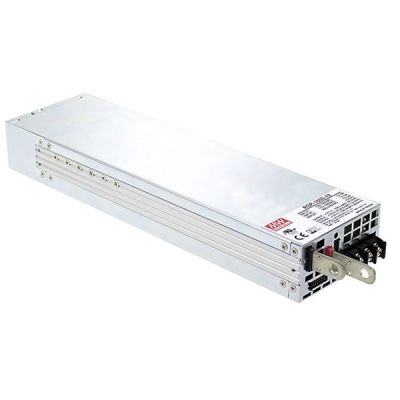

Meanwell RSP-1600-12 is a 1600W single output enclosed type AC/DC power supply with 12V125A0-125A1500W150 mVp-p11.5-15V. The product is designed 1U low profile, PFC function and high-power density up to 25W/inch³. As the high efficiency reaches up to 93% with Universal AC input/Full range, RSP-1600-12 operates for 90~264VACinput voltage and offered with the DC output mostly demanded from the industry. The model is cooled by the thermostatically controlled fan, and could work for the temperature up to 70℃. What’s more, RSP-1600-12 provides vast design flexibility by various built-in functions such as the output programming, active current sharing, remote ON-OF F control, auxiliary power, etc. In addition to them, it provides the complete protections such as Short circuit, Overload, Over voltage, Over temperature and Optional PMBus or CANBus protocol. Due to its longevity, high reliability and excellent quality, Meanwell RSP-1600-12 serves as a high-performance power supply solution for various industrial applications such as industrial control systems, IC test equipment, instrumentation, telecommunications, data storage, laser engraving machines, charging systems and so on.
Meanwell RSP-1600-12 Encoding
| RSP | Series Name |
| 1600 | Output Wattage |
| 12 | Output Voltage (12V/24V/27V/36V/48V) |
| **** | Communications Protocol |
| Blank | None |
| PM | PMBus Protocol By Request |
| CAN | CANBus Protocol By Request |
Meanwell RSP-1600-12 Specifications
| Model | RSP-1600-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 125A | |
| CURRENT RANGE | 0-125A | |
| RATED POWER | 1500W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | |
| VOLTAGE ADJ. RANGE | 11.5-15V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC at full load | |
| HOLD UP TIME | 16ms / 230VAC at 75% load 10ms / 230VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT (Typ.) | 14A/115VAC 8A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 35A/230VAC | |
| LEAKAGE CURR ENT | <2mA / 230VAC | |
| PROTECTION | OVERLOAD | 105 ~ 115% rated output power |
| Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover | ||
| OVER VOLTAGE | 15.75-18.75V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 125% of nominal output voltage (60 ~ 125% for 12V). |
| OUTPUT CURRENT PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current | |
| AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual | |
| ALARM SIGNAL | Isolated signal output for T-alarm and DC OK | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | |
| Others | MTBF | 478.8K hrs min. Telcordia SR-332 (Bellcore) ; 42.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 300*85*41mm (L*W*H) | |
| PACKING | 2.1Kg;6pcs/13.6Kg/1.25CUFT | |
Meanwell RSP-1600-12 Features
l 5 years warranty
l Built-in active PFC function
l High efficiency up to 93%
l Forced air cooling by built-in DC fan
l Output voltage and constant current level programmable
l Active current sharing up to 9600W (5+1)
l Built-in remote ON-OFF control/remote sense/auxiliary power/DC OK signal/OTP alarm signal
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Optional PMBus or CANBus protocol
l Universal AC input/Full range (Withstand 300V AC surge input for 5 seconds)
Meanwell RSP-1600-12 Applications
l Aging facility
l Digital broadcasting
l Constant current source
l Redundant system
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
Meanwell RSP-1600-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
