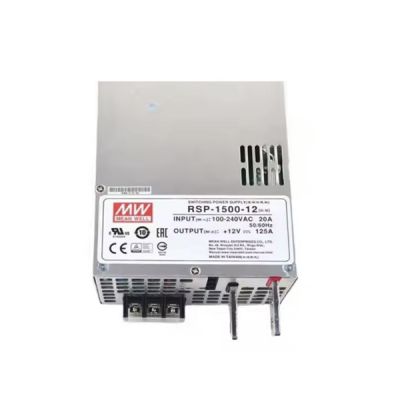

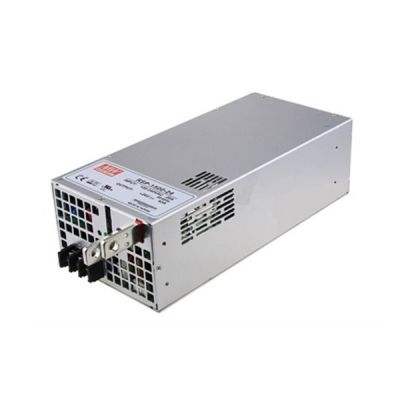

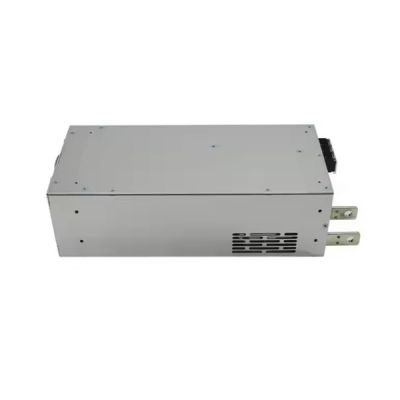

Meanwell RSP-1500 Series is a 1500W single output enclosed type AC/DC power supply with PFC function. The entire series is designed low profile and high efficiency reaching up to 91%. At the same time, RSP-1500 operates for 90~264VAC input voltage and equipped with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan and they could work for the temperature up to 70℃. What’s more, Meanwell RSP-1500 provides vast design flexibility through various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc. Apart from them, the series supplies the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Considering its longevity, high reliability and excellent quality, Meanwell RSP-1500 Series serves as a high performance power supply solution for various industrial applications such as Test and measurement instrument Laser related machine and Digital broadcasting, etc.
Meanwell RSP-1500 Series Encoding
| RSP | Series Name |
| 1500 | Output Wattage |
| 48 | Output Voltage (5V/12V/15V/24V/27V/48V) |

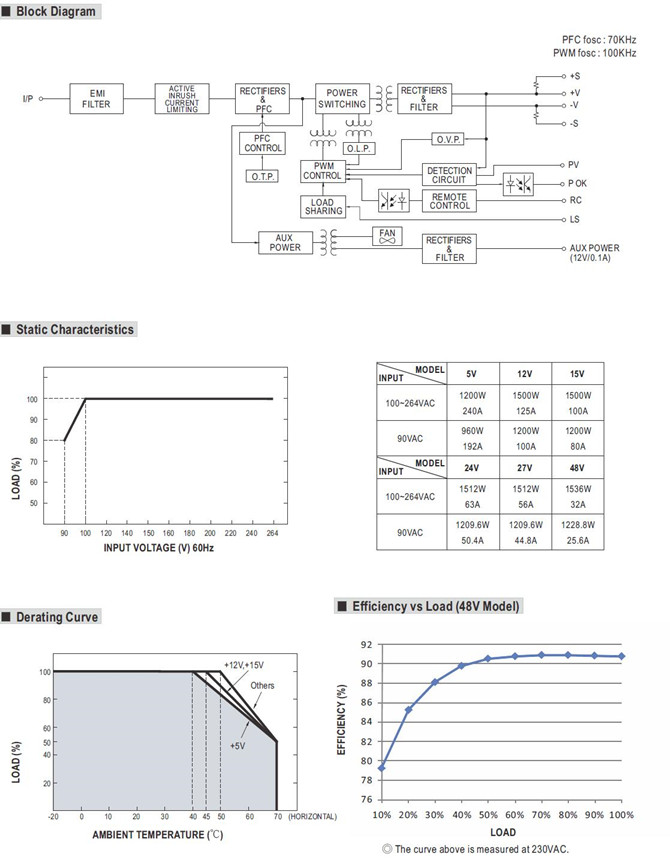

Meanwell RSP-1500 Series Model Specifications
| Model | RSP-1500-5 | RSP-1500-12 | RSP-1500-15 | RSP-1500-24 | RSP-1500-27 | RSP-1500-48 | |
| Output | DC VOLTAGE | 5V | 12V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 240A | 125A | 100A | 63A | 56A | 32A | |
| CURRENT RANGE | 0-240A | 0-125A | 0-100A | 0-63A | 0-56A | 0-32A | |
| RATED POWER | 1200W | 1500W | 1500W | 1512W | 1512W | 1536W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | 200 mVp-p | |
| VOLTAGE ADJ. RANGE | 4.5-5.5V | 10-13.5V | 13.5-16.5V | 20-26.4V | 24-30V | 43-55V | |
| VOLTAGE TOLERANCE | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 100ms at full load | ||||||
| HOLD UP TIME | 10ms at full load | 14ms at full load | 16ms at full load | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR (Typ.) | 0.95/230VAC 0.98/115VAC at full load | ||||||
| EFFICIENCY (Typ.) | 80.00% | 87.00% | 87.00% | 90.50% | 90.00% | 91.00% | |
| AC CURRENT (Typ.) | 17A/115VAC 8A/230VAC | ||||||
| INRUSH CURRENT (Typ. ) | 30A/115VAC 60A/230VAC | ||||||
| LEAKAGE CURR ENT | <2.0mA / 240VAC | ||||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||||
| Protection type : Constant current limiting unit will shut down o/p voltage after 5sec. Re-power on to recover | |||||||
| OVER VOLTAGE | 5.75-6.75V | 13.8-16.8V | 17-20.5V | 27.6-32.4V | 31-36.5V | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 70 ~ 100% of nominal output voltage | |||||
| CURRENT SHARING | Up to 6000W or (3+1) units. Please refer to the Function Manual | ||||||
| AUXILIARY POWER | 12V @ 0.1A ; (Only for Remote ON-OFF control) | ||||||
| ALARM SIGNAL OUTPUT | Power OK signal. Please see the Function Manual | ||||||
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃ (Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | Class A | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | |||||
| Harmonic Current | BS EN/EN61000-3-2 | ---- | |||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | |||||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | |||||
| Radiated | BS EN/EN61000-4-3 | Level 3 | |||||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | |||||
| Surge | BS EN/EN61000-4-5 | Level 3, 2KV/Line-Earth ; Level 2, 1KV/Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 3 | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | |||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||||
| Others | MTBF | 814.4K hrs min. Telcordia SR-332 (Bellcore) ; 90.4K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 278*127*83.5mm (L*W*H) | ||||||
| PACKING | 3.0Kg; 4pcs/13Kg/1.19CUFT | ||||||
Meanwell RSP-1500 Series Features
l Universal AC input/Full range
l Built-in active PFC function
l High efficiency up to 91%
l Forced air cooling by built-in DC fan
l Output voltage programmable
l Active current sharing up to 6000W (3+1)
l Built-in remote ON-OFF control/remote sense/auxiliary power/power OK signal
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Optional conformal coating
l 5 years warranty
Meanwell RSP-1500 Series Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Burn-in facility
l Digital broadcasting
l RF application

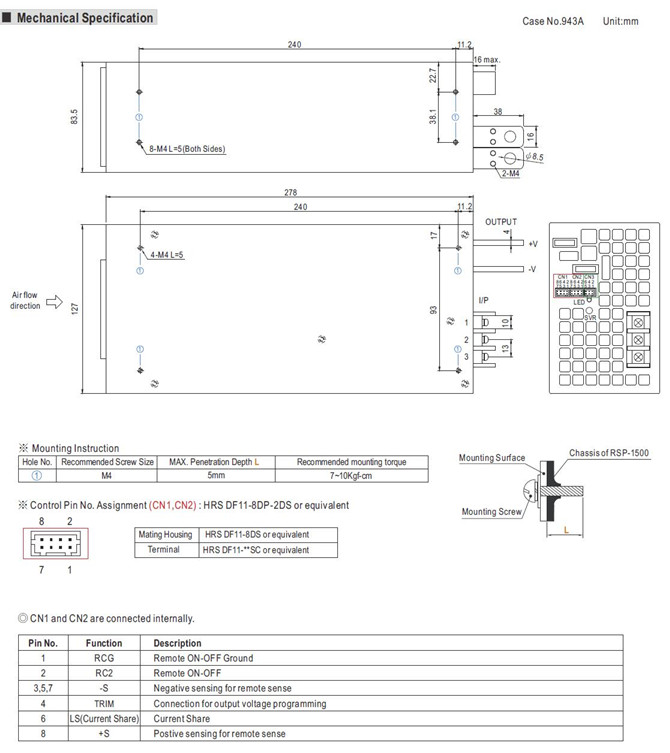

Meanwell RSP-1500 Series Mechanical Diagram
