RSP-1500-5
380.08
Details

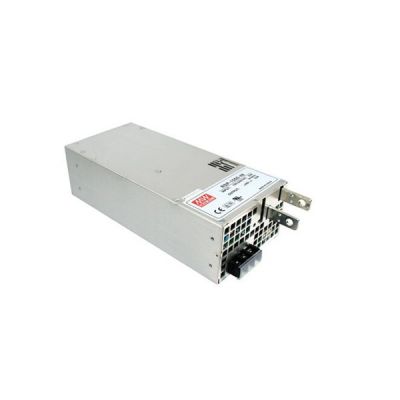

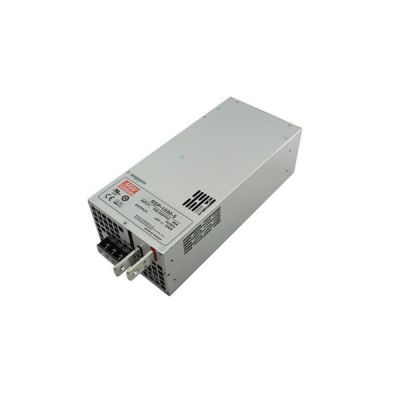

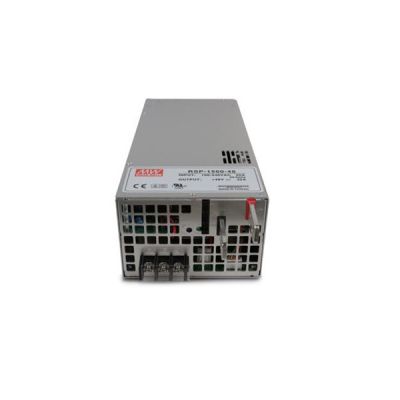

Meanwell RSP-1500-5 is a 1500W single output enclosed type AC/DC power supply with 5V240A0-240A1200W150 mVp-p4.5-5.5V. The product is designed low profile and PFC function. At the same time, RSP-1500-5 operates for 90~264VAC input voltage and equipped with the DC output mostly demanded from the industry. The model is cooled by the built-in fan and high efficiency up to 91%, and it could also work for the temperature up to 70℃. Moreover, Meanwell RSP-1500-5 offers vast design flexibility through various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc. Besides them, it supplies the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Due to its longevity, high reliability and excellent quality, Meanwell RSP-1500-5 serves as a high performance power supply solution for various industrial applications such as Test and measurement instrument Laser related machine and Digital broadcasting, and so on.
Meanwell RSP-1500-5 Encoding
| RSP | Series Name |
| 1500 | Output Wattage |
| 5 | Output Voltage (5V/12V/15V/24V/27V/48V) |
Meanwell RSP-1500-5 Specifications
| Model | RSP-1500-5 | |
| Output | DC VOLTAGE | 5V |
| RATED CURRENT | 240A | |
| CURRENT RANGE | 0-240A | |
| RATED POWER | 1200W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | |
| VOLTAGE ADJ. RANGE | 4.5-5.5V | |
| VOLTAGE TOLERANCE | ±2% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 1500ms, 100ms at full load | |
| HOLD UP TIME | 10ms at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.95/230VAC 0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 80.00% | |
| AC CURRENT (Typ.) | 17A/115VAC 8A/230VAC | |
| INRUSH CURRENT (Typ. ) | 30A/115VAC 60A/230VAC | |
| LEAKAGE CURR ENT | <2.0mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting unit will shut down o/p voltage after 5sec. Re-power on to recover | ||
| OVER VOLTAGE | 5.75-6.75V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 70 ~ 100% of nominal output voltage |
| CURRENT SHARING | Up to 6000W or (3+1) units. Please refer to the Function Manual | |
| AUXILIARY POWER | 12V @ 0.1A ; (Only for Remote ON-OFF control) | |
| ALARM SIGNAL OUTPUT | Power OK signal. Please see the Function Manual | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | |
| Others | MTBF | 814.4K hrs min. Telcordia SR-332 (Bellcore) ; 90.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 278*127*83.5mm (L*W*H) | |
| PACKING | 3.0Kg; 4pcs/13Kg/1.19CUFT | |
Meanwell RSP-1500-5 Features
l Optional conformal coating
l 5 years warranty
l Universal AC input/Full range
l Built-in active PFC function
l High efficiency up to 91%
l Forced air cooling by built-in DC fan
l Output voltage programmable
l Active current sharing up to 6000W (3+1)
l Built-in remote ON-OFF control/remote sense/auxiliary power/power OK signal
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell RSP-1500-5 Applications
l Burn-in facility
l Digital broadcasting
l RF application
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
Meanwell RSP-1500-5 Mechanical Diagram
