RSP-1500-27
384.37
Details

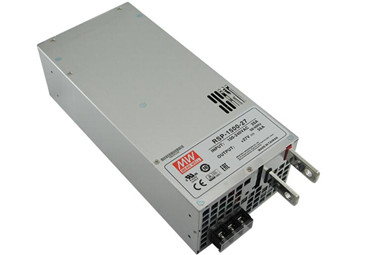

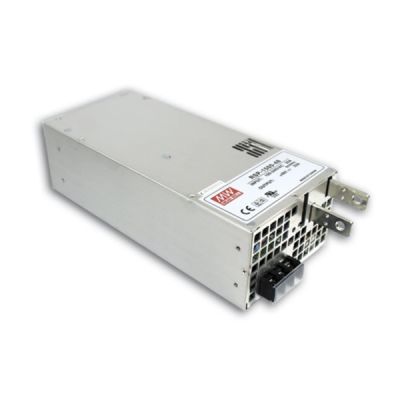

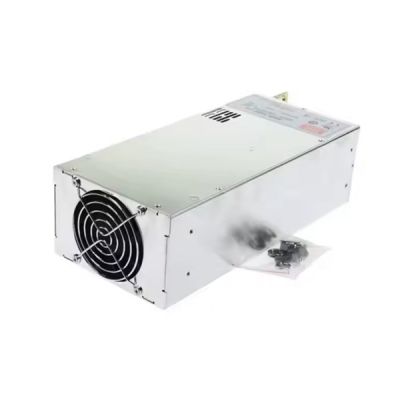

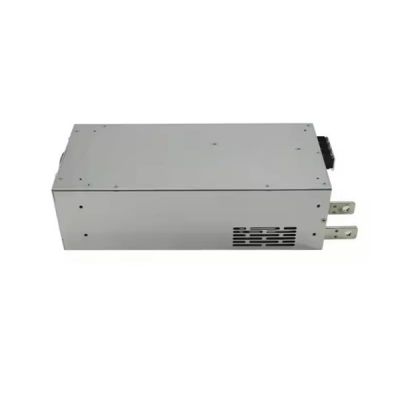

Meanwell RSP-1500-27 is a 1500W single output enclosed type AC/DC power supply with 27V56A0-56A1512W150 mVp-p24-30V. It is designed low profile and high efficiency up to 91%. Apart from them, RSP-1500-27 operates for 90~264VAC input voltage and equipped with the DC output mostly demanded from the industry. The model is cooled by the built-in fan and universal AC input/Full range. It is able to work for the temperature up to 70℃.Additionally, Meanwell RSP-1500-27 provides vast design flexibility through various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc. Moreover, The unit provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. As a result of its longevity, high reliability and excellent quality, Meanwell RSP-1500-27 serves as a high performance power supply solution for various industrial applications such as Test and measurement instrument Laser related machine and Digital broadcasting, and so on.
Meanwell RSP-1500-27 Encoding
| RSP | Series Name |
| 1500 | Output Wattage |
| 27 | Output Voltage (5V/12V/15V/24V/27V/48V) |
Meanwell RSP-1500-27 Specifications
| Model | RSP-1500-27 | |
| Output | DC VOLTAGE | 27V |
| RATED CURRENT | 56A | |
| CURRENT RANGE | 0-56A | |
| RATED POWER | 1512W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | |
| VOLTAGE ADJ. RANGE | 24-30V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 100ms at full load | |
| HOLD UP TIME | 16ms at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.95/230VAC 0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT (Typ.) | 17A/115VAC 8A/230VAC | |
| INRUSH CURRENT (Typ. ) | 30A/115VAC 60A/230VAC | |
| LEAKAGE CURR ENT | <2.0mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting unit will shut down o/p voltage after 5sec. Re-power on to recover | ||
| OVER VOLTAGE | 31-36.5V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 70 ~ 100% of nominal output voltage |
| CURRENT SHARING | Up to 6000W or (3+1) units. Please refer to the Function Manual | |
| AUXILIARY POWER | 12V @ 0.1A ; (Only for Remote ON-OFF control) | |
| ALARM SIGNAL OUTPUT | Power OK signal. Please see the Function Manual | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | |
| Others | MTBF | 814.4K hrs min. Telcordia SR-332 (Bellcore) ; 90.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 278*127*83.5mm (L*W*H) | |
| PACKING | 3.0Kg; 4pcs/13Kg/1.19CUFT | |
Meanwell RSP-1500-27 Features
l 5 years warranty
l High efficiency up to 91%
l Optional conformal coating
l Universal AC input/Full range
l Built-in active PFC function
l Forced air cooling by built-in DC fan
l Output voltage programmable
l Active current sharing up to 6000W (3+1)
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Built-in remote ON-OFF control/remote sense/auxiliary power/power OK signal
Meanwell RSP-1500-27 Applications
l Burn-in facility
l Digital broadcasting
l RF application
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
Meanwell RSP-1500-27 Mechanical Diagram
