RSP-150
34.16
Details

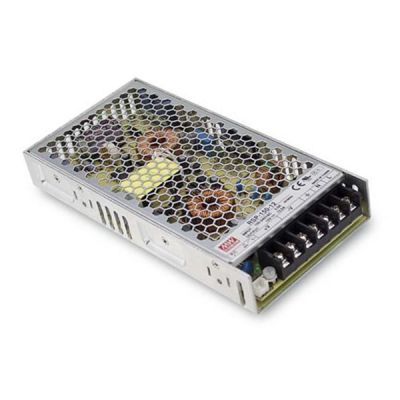

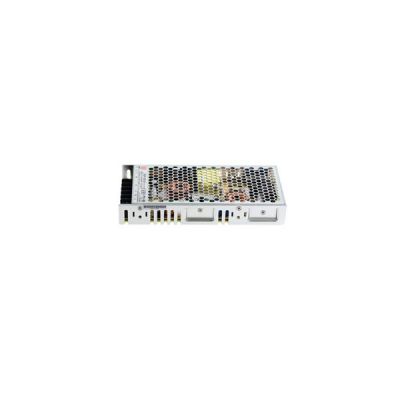

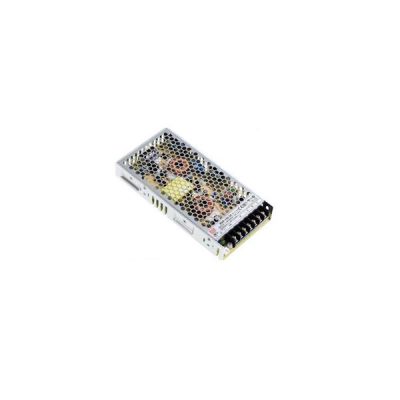

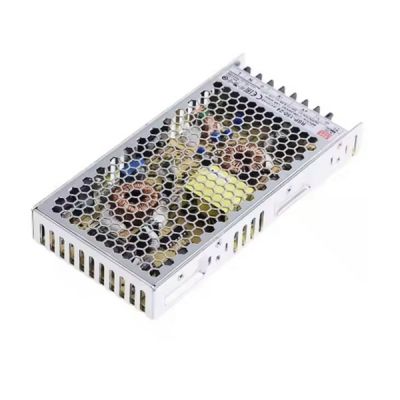

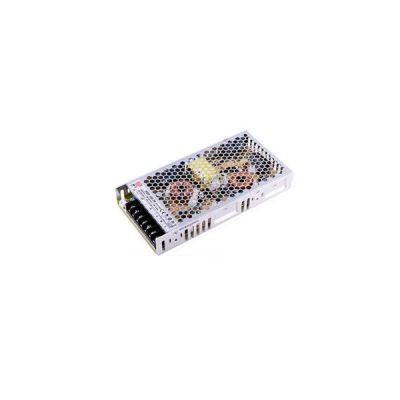

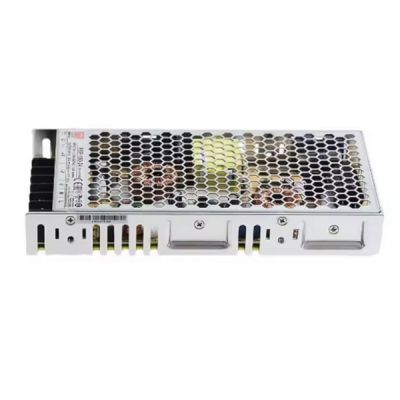

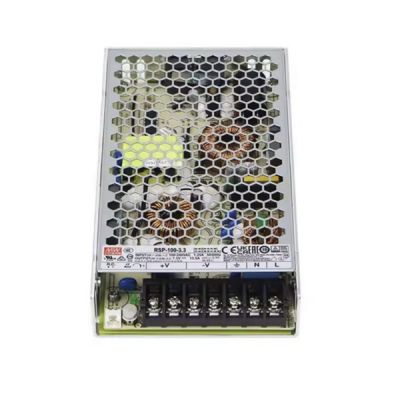

Meanwell RSP-150 Series is a 150W single output enclosed type AC/DC power supply. The series operates for 85-264 VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, and work for the temperature up to 70C.Due to the high efficiency, long longevity and high reliability, Meanwell RSP-150 Series is an ideal high price-to-performance power supply solution for various applications.
Meanwell RSP-150 Series Model Specifications
| Model | RSP-150-3.3 | RSP-150-5 | RSP-150-7.5 | RSP-150-12 | RSP-150-13.5 | RSP-150-15 | RSP-150-24 | RSP-150-27 | RSP-150-48 | |
| Output | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 30A | 30A | 20A | 12.5A | 11.2A | 10A | 6.3A | 5.6A | 3.2A | |
| CURRENT RANGE | 0-30A | 0-30A | 0-20A | 0-12.5A | 0-11.2A | 0-10A | 0-6.3A | 0-5.6A | 0-3.2A | |
| RATED POWER | 99W | 150W | 150W | 150W | 151.2W | 150W | 151.2W | 151.2W | 153.6W | |
| RIPPLE & NOISE (max.) mVp-p | 100 | 100 | 100 | 100 | 100 | 100 | 150 | 150 | 250 | |
| VOLTAGE ADJ. RANGE | 3.14-3.63V | 4.75-5.5V | 7.13-8.25V | 11.4-13.2V | 12.8-14.9V | 14.3-16.5V | 22.8-26.4V | 25.7-29.7V | 45.6-52.8V | |
| VOLTAGE TOLERANCE | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1% | ±1% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 600ms, 30ms at full load | |||||||||
| HOLD UP TIME | 16ms at full load | |||||||||
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR | PF>0.93/230VAC PF>0.98/115VAC at full load | |||||||||
| EFFICIENCY (Typ.) | 81.50% | 87.00% | 88.50% | 89.00% | 87.50% | 88.50% | 89.00% | 89.50% | 90.00% | |
| AC CURRENT (Typ.) | 1.6A/115VAC 0.8A/230VAC | |||||||||
| INRUSH CURRENT (Typ. ) | COLD START 45A/230VAC | |||||||||
| LEAKAGE CURR ENT | <2mA / 240VAC | |||||||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 3.63-4.46V | 5.5-6.75V | 8.25-10.13V | 13.2-16.2V | 14.85-18.2V | 16.5-20.25V | 26.4-32.4V | 29.7-36.45V | 52.8-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |||||||||
| FUNCTION | REMOTE CONTROL | CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF | ||||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||||||||
| OVER VOLTAGE CATEGORY | Ⅲ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters | |||||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1 approved, Design refer to AS/NZS 62368.1 | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1,CNS13438 Class B | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | |||||||||
| Others | MTBF | 290.7K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 199*99*30mm (L*W*H) | |||||||||
| PACKING | 0.6Kg; 24pcs/15.4Kg/0.89CUFT | |||||||||
Meanwell RSP-150 Series Features
l Universal AC input/ Full range
l Built-in active PFC function
l High efficiency up to 90%
l Cooling by free air convection
l Built-in remote ON-OFF control
l Protections: Short circuit / Overload / Over voltage/ Over temperature
l LED indicator for power on
l 3 years warranty
Meanwell RSP-150 Series Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Burn-in facility
l RF application
Meanwell RSP-150 Series Mechanical Diagram
