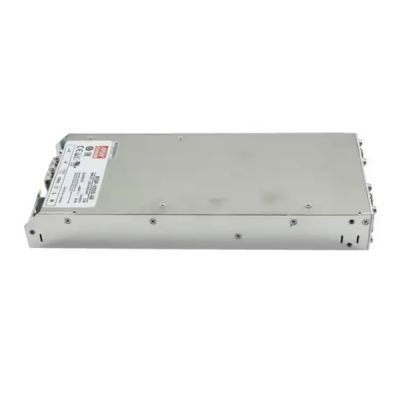

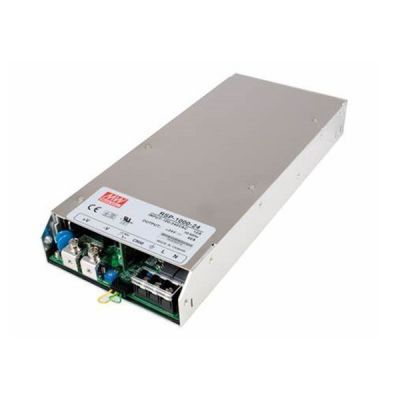

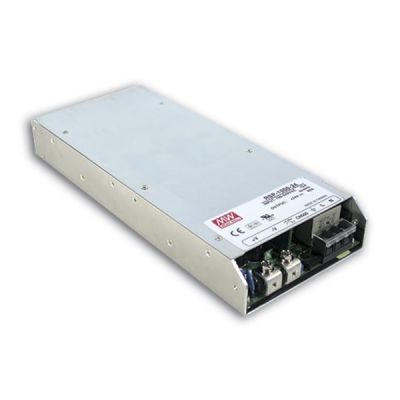

Meanwell RSP-1000 Series is a 1000W single output enclosed type AC/DC power supply with PFC function. The entire series is designed 1U low profile, which is very suitable for industrial equipment with limited space. Since the high efficiency reaches up to 92% with Universal AC input/Full range, RSP-1000 operates for 90~264VACinput voltage and offered with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, and they could work for the temperature up to 60℃. Moreover, RSP-1000 provides vast design flexibility via various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc. Apart from them, the series provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Considering its longevity, high reliability and powerful performance, Meanwell RSP-1000 Series serves as a high performance power supply solution for various industrial applications such as industrial control systems, IC test equipment, instrumentation, telecommunications, data storage, laser engraving machines, charging systems and so on.
Meanwell RSP-1000 Series Encoding
| RSP | Series Name |
| 1000 | Output Wattage |
| 24 | Output Voltage (12V/15V/24V/27V/48V) |
Meanwell RSP-1000 Series Model Specifications
| Model | RSP-1000-12 | RSP-1000-15 | RSP-1000-24 | RSP-1000-27 | RSP-1000-48 | |
| Output | DC VOLTAGE | 12V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 60A | 50A | 40A | 37A | 21A | |
| CURRENT RANGE | 0-60A | 0-50A | 0-40A | 0-37A | 0-21A | |
| RATED POWER | 720W | 750W | 960W | 999W | 1008W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | |
| VOLTAGE ADJ. RANGE | 10-13.5V | 13.5-16.5V | 20-26.4V | 24-30V | 43-55V | |
| VOLTAGE TOLERANCE | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 300ms, 50ms at full load | |||||
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR (Typ.) | 0.95/230VAC 0.98/115VAC at full load | |||||
| EFFICIENCY (Typ.) | 83.00% | 85.00% | 88.00% | 88.00% | 90.00% | |
| AC CURRENT (Typ.) | 12A/115VAC 6A/230VAC | |||||
| INRUSH CURRENT (Typ. ) | 25A/115VAC 40A/230VAC | |||||
| LEAKAGE CURR ENT | <2.0mA / 240VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power | ||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 13.8-16.8V | 17-20.5V | 27.6-32.4V | 31-36.5V | 56.6-66.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 110% of nominal output voltage | ||||
| CURRENT SHARING | Up to 4000W or (3+1) units. Please refer to the Function Manual. | |||||
| AUXILIARY POWER | 5V @ 0.5A (+5%, -8%) | |||||
| REMOTE ON-OFF CONTROL | Power ON : short Power OFF : open. Please refer to the Function Manual | |||||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual | |||||
| DC OK SIGNAL | The TTL signal out, PSU turn on = 0 ~ 1V ; PSU turn off = 3.3 ~ 5.6V. Please refer to the Function Manual | |||||
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃ (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 50℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS14336-1, AS/NZS62368.1, IS13252(Part1)/IEC60950-1, EAC TP TC 004 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted | BS EN/EN55032 (CISPR32) | Class A | ||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | ||||
| Harmonic Current | BS EN/EN61000-3-2 | ---- | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, CCC GB17625.1, GB/T9254, BSMI CNS13438 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||||
| Surge | BS EN/EN61000-4-5 | Level 4, 4KV/Line-Earth ; Level 3, 2KV/Line-Line | ||||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||||
| Others | MTBF | 939.4K hrs min. Telcordia SR-332 (Bellcore) ; 116.5K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 295*127*41mm (L*W*H) | |||||
| PACKING | 1.95Kg; 6pcs/12.7Kg/1.15CUFT | |||||
Meanwell RSP-1000 Series Features
l Universal AC input /Full range
l Built-in active PFC function
l High efficiency up to 90%
l Forced air cooling by built-in DC fan
l Output voltage programmable
l Active current sharing up to 4000W (3+1)
l Built-in remote ON-OFF control/remote sense/auxiliary power/DC OK signal
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Optional conformal coating
l 5 years warranty
Meanwell RSP-1000 Series Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Burn-in facility
l RF application

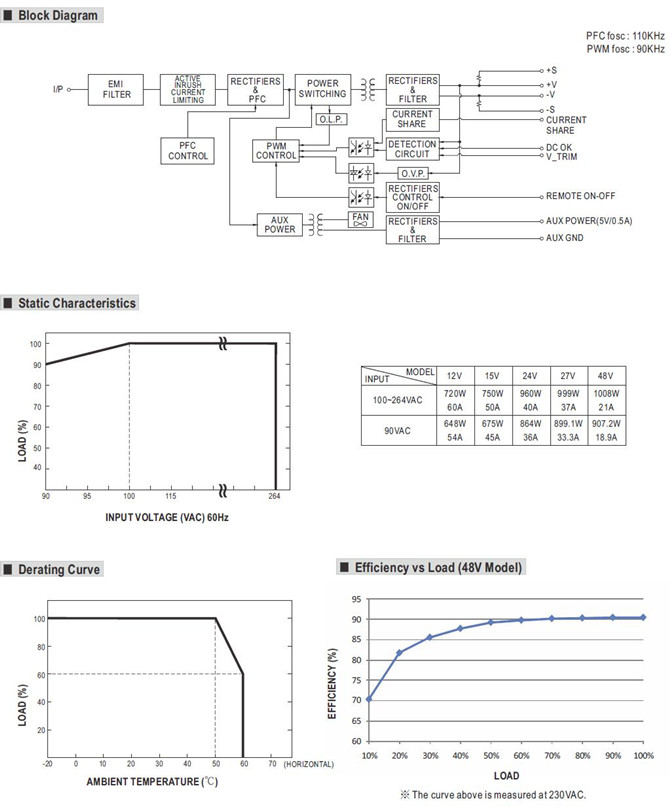

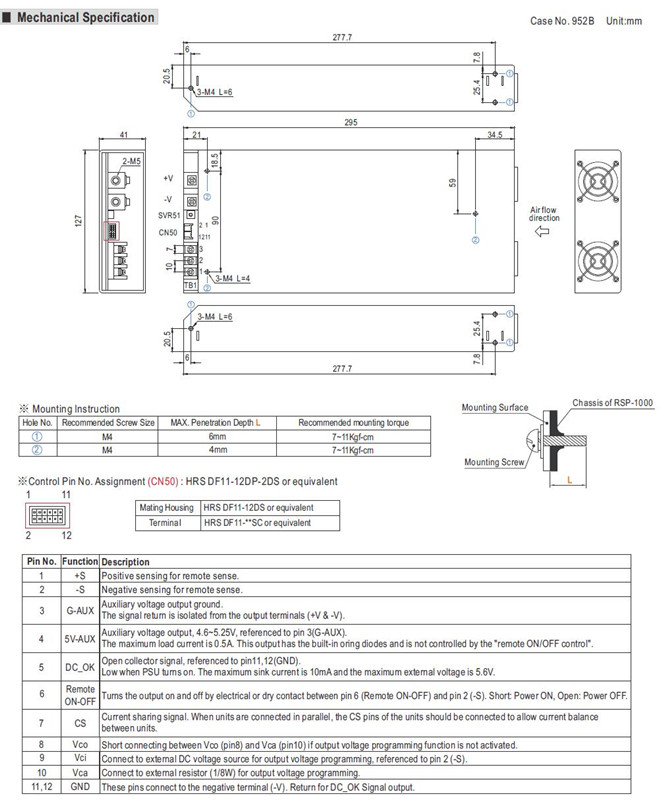

Meanwell RSP-1000 Series Mechanical Diagram
