RSP-1000-15
155.26
Details

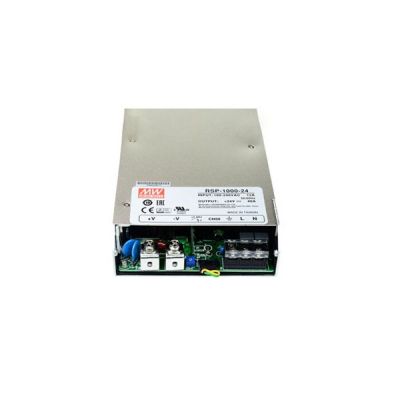

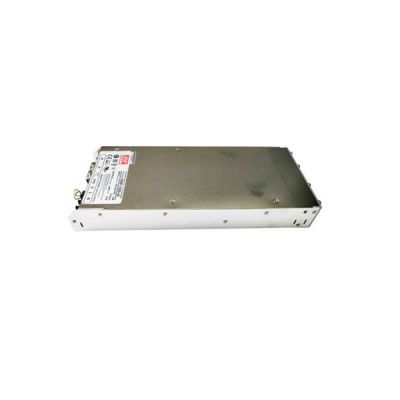

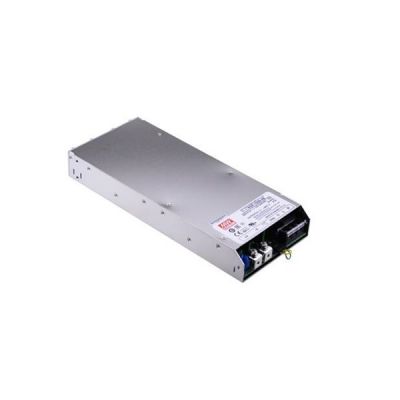

Meanwell RSP-1000-15 is a 1000W single output enclosed type AC/DC power supply with 15V50A0-50A750W150 mVp-p13.5-16.5V. The item is designed 1U low profile with PFC function, which is very suitable for industrial equipment with limited space. Since the efficiency reaches high up to 92% with Universal AC input/Full range, Meanwell RSP-1000-15 operates for 90~264VACinput voltage and equipped with the DC output mostly demanded from the industry. The model is cooled by the built-in fan with fan speed control, and could work for the temperature up to 60℃. Additionally, RSP-1000-15 offers vast design flexibility via various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc. Moreover, the product gives the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Thanks to its longevity, high reliability and powerful performance, Meanwell RSP-1000-15 serves as a high performance power supply solution for various industrial applications such as industrial control systems, IC test equipment, instrumentation, telecommunications, data storage, laser engraving machines, charging systems and so on.
Meanwell RSP-1000-15 Encoding
| RSP | Series Name |
| 1000 | Output Wattage |
| 15 | Output Voltage (12V/15V/24V/27V/48V) |
Meanwell RSP-1000-15 Specifications
| Model | RSP-1000-15 | |
| Output | DC VOLTAGE | 15V |
| RATED CURRENT | 50A | |
| CURRENT RANGE | 0-50A | |
| RATED POWER | 750W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | |
| VOLTAGE ADJ. RANGE | 13.5-16.5V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 300ms, 50ms at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.95/230VAC 0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT (Typ.) | 12A/115VAC 6A/230VAC | |
| INRUSH CURRENT (Typ. ) | 25A/115VAC 40A/230VAC | |
| LEAKAGE CURR ENT | <2.0mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 17-20.5V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 110% of nominal output voltage |
| CURRENT SHARING | Up to 4000W or (3+1) units. Please refer to the Function Manual. | |
| AUXILIARY POWER | 5V @ 0.5A (+5%, -8%) | |
| REMOTE ON-OFF CONTROL | Power ON : short Power OFF : open. Please refer to the Function Manual | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual | |
| DC OK SIGNAL | The TTL signal out, PSU turn on = 0 ~ 1V ; PSU turn off = 3.3 ~ 5.6V. Please refer to the Function Manual | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS14336-1, AS/NZS62368.1, IS13252(Part1)/IEC60950-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, CCC GB17625.1, GB/T9254, BSMI CNS13438 | |
| Others | MTBF | 939.4K hrs min. Telcordia SR-332 (Bellcore) ; 116.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 295*127*41mm (L*W*H) | |
| PACKING | 1.95Kg; 6pcs/12.7Kg/1.15CUFT | |
Meanwell RSP-1000-15 Features
l 5 years warranty
l High efficiency up to 90%

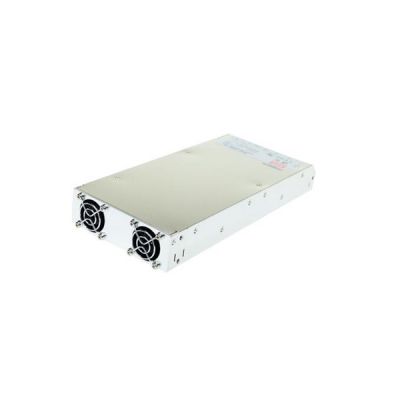

l Forced air cooling by built-in DC fan
l Output voltage programmable
l Optional conformal coating
l Universal AC input/Full range
l Built-in active PFC function
l Active current sharing up to 4000W (3+1)
l Built-in remote ON-OFF control/remote sense/auxiliary power/DC OK signal
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell RSP-1000-15 Applications
l Burn-in facility
l RF application
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
Meanwell RSP-1000-15 Mechanical Diagram
