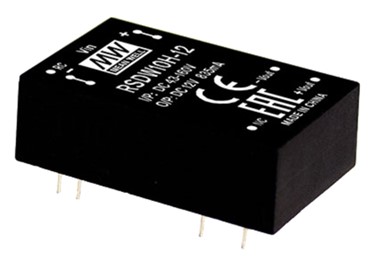

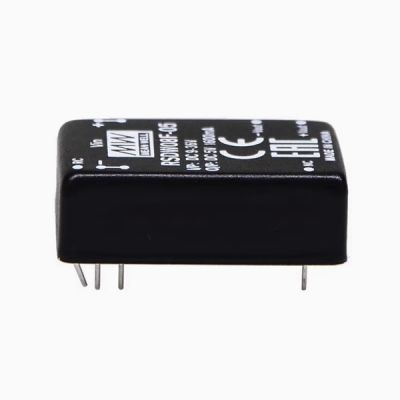

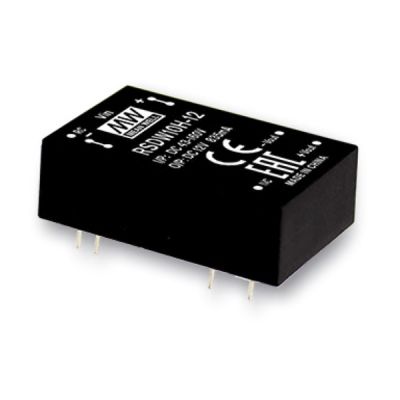

Meanwell RSDW10H Series is a 10W DC-DC reliable railway converter. The product outstands module type and DIP24 package. At the same time, the main features are as follwoing: international standard pins, high efficiency reaching up to 88%, wide working temperature range -40~+85℃, 3KVDC I/P-O/P isolation voltage, compliance with EN501 55 railway standard, continuous-modeshort circuit protection, etc. Apart from them, the models account for 43~160V 4:1 wide input range, and various outputvoltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Considering its longevity, high reliability, and excellent quality, Meanwell RSDW10H Series is suitable forrailway, trams, buses, and also can be used in the harsh environment with high vibration, high dust,extremely low or high temperature, etc.
Meanwell RSDW10H Series Encoding
| RSDW | Series Name S: Single Mode, D: Dual Mode |
| 10 | Rated Wattage |
| H | Input Voltage ( H: 43-160Vdc) |
| 12 | Output Voltage (3.3/5/12/15Vdc, ±5/±12/15Vdc) |
Meanwell RSDW10H Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| RSDW10H-03 | Normal 110V (43~160V) | 6mA | 89mA | 3.3V | 2500mA | 85% | 2500μF |
| RSDW10H-05 | 6mA | 105mA | 5V | 2000mA | 87% | 2000μF | |
| RSDW10H-12 | 6mA | 104mA | 12V | 835mA | 87% | 835μF | |
| RSDW10H-15 | 6mA | 103mA | 15V | 666mA | 86% | 666μF | |
| INPUT | VOLTAGE RANGE | 43~160Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 200Vdc | ||||||
| FILTER | Pi type | ||||||
| PROTECTION (Typ.) | Fuse recommended. 0.5A Fast acting type | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.5% | |||||
| RATED POWER | 8W | ||||||
| RIPPLE & NOISE | 50mVp-p | ||||||
| LINE REGULATION | ±0.5% | ||||||
| LOAD REGULATION | Single output models:±0.5%, Dual output models:±1% | ||||||
| CROSS REGULATION | ±5% at 25%~100% load | ||||||
| SWITCHING FREQUENCY | 100KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 120 ~ 180% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | Protection type : Clamp by diode | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 40Vdc | ||||||
| Shutdown voltage: 38Vdc 5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin |
|||||||
| FUNCTION | REMOTE CONTROL | Power ON: R.C. ~ -Vin >3.5~160Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +85℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0~71℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃ max | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: compliance to EN61373(Category 1- Class B) | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 1000pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 | Class A with external components | |||||
| Radiated | BS EN/EN55032 | NA | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2, ±8KV air, ±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V(e.m.f.) | |||||
| RAILWAY STANDARD | EN50155 including EN61373 for shock & vibration, EN50121-3-2 for EMC | ||||||
| OTHERS | MTBF | 1200Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 31.8*20.3*12.7mm (1.25*0.8*0.5 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic | ||||||
| PACKING | 16g ; 10pcs/per tube, 500pcs/50 tube/per carton | ||||||
Meanwell RSDW10H Series Features
l Compliance with EN50155 railway standard
l DIP 24 package with standard pinout
l 4:1 wide input range
l Wide operating temperature range -40 ~ +85℃
l No minimum load required
l Full encapsulated
l Protections: Short circuit (Continuous)/Overload/Over voltage/Input under voltage
l 3KVDC I/O isolation
l Remote ON/OFF control
l 3 years warranty
Meanwell RSDW10H Series Applications
l Analyzer
l Instrument
l Wireless network
l Industrial control facility
l Telecom/Datacom system
l Bus, tram, metro or railway system
l Highly vibrating, heavily dusty, exteremely low or high temperature harsh environment
