RSDW10H-03
15.83
Details

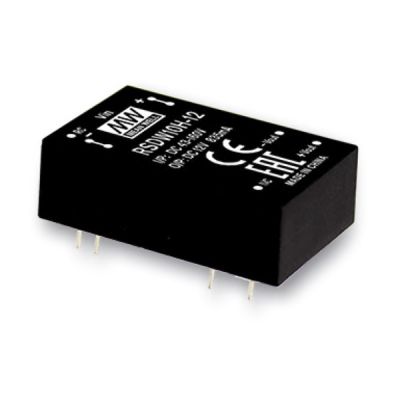

Meanwell RSDW10H-03 is a 10W DC-DC reliable railway converter with 110V6mA89mA3.3V2500mA. The item stands out with module type and DIP24 package. Meanwhile, the main features are as follwoing: international standard pins, high efficiency up to 88%, wide working temperature range -40~+85℃, 3KVDC I/P-O/P isolation voltage, compliance with EN501 55 railway standard, continuous-modeshort circuit protection, etc. In addition, the models account for 43~160V 4:1 wide input range, and various outputvoltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Due to its longevity, high reliability, and excellent quality, Meanwell RSDW10H-03 is suitable forrailway, trams, buses, and also can be used in the harsh environment with high vibration, high dust,extremely low or high temperature, etc.
Meanwell RSDW10H-03 Encoding
| RSDW | Series Name S: Single Mode, D: Dual Mode |
| 10 | Rated Wattage |
| H | Input Voltage ( H: 43-160Vdc) |
| 03 | Output Voltage (3.3/5/12/15Vdc, ±5/±12/15Vdc) |
Meanwell RSDW10H-03 Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| RSDW10H-03 | Normal 110V (43~160V) | 6mA | 89mA | 3.3V | 2500mA | 85% | 2500μF |
| RSDW10H-05 | 6mA | 105mA | 5V | 2000mA | 87% | 2000μF | |
| RSDW10H-12 | 6mA | 104mA | 12V | 835mA | 87% | 835μF | |
| RSDW10H-15 | 6mA | 103mA | 15V | 666mA | 86% | 666μF | |
| INPUT | VOLTAGE RANGE | 43~160Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 200Vdc | ||||||
| FILTER | Pi type | ||||||
| PROTECTION (Typ.) | Fuse recommended. 0.5A Fast acting type | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.5% | |||||
| RATED POWER | 8W | ||||||
| RIPPLE & NOISE | 50mVp-p | ||||||
| LINE REGULATION | ±0.5% | ||||||
| LOAD REGULATION | Single output models:±0.5%, Dual output models:±1% | ||||||
| CROSS REGULATION | ±5% at 25%~100% load | ||||||
| SWITCHING FREQUENCY | 100KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 120 ~ 180% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | Protection type : Clamp by diode | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 40Vdc | ||||||
| Shutdown voltage: 38Vdc 5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin |
|||||||
| FUNCTION | REMOTE CONTROL | Power ON: R.C. ~ -Vin >3.5~160Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +85℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0~71℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃ max | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: compliance to EN61373(Category 1- Class B) | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 1000pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 | Class A with external components | |||||
| Radiated | BS EN/EN55032 | NA | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2, ±8KV air, ±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V(e.m.f.) | |||||
| RAILWAY STANDARD | EN50155 including EN61373 for shock & vibration, EN50121-3-2 for EMC | ||||||
| OTHERS | MTBF | 1200Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 31.8*20.3*12.7mm (1.25*0.8*0.5 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic | ||||||
| PACKING | 16g ; 10pcs/per tube, 500pcs/50 tube/per carton | ||||||
Meanwell RSDW10H-03 Features
l Compliance with EN50155 railway standard
l DIP 24 package with standard pinout
l 4:1 wide input range
l Wide operating temperature range -40 ~ +85℃
l No minimum load required
l Full encapsulated
l 3KVDC I/O isolation
l Remote ON/OFF control
l 3 years warranty
l Protections: Short circuit (Continuous)/Overload/Over voltage/Input under voltage
Meanwell RSDW10H-03 Applications
l Analyzer
l Instrument
l Wireless network
l Industrial control facility
l Telecom/Datacom system
l Bus, tram, metro or railway system
l Highly vibrating, heavily dusty, exteremely low or high temperature harsh environment
Meanwell RSDW10H-03 Mechanical Diagram
