Meanwell 8W DIP Package Reliable Railway DC-DC Converter

- +
Availability:In stock
SKU Meanwell RSDW08G
Brand Meanwell
Details

Meanwell RSDW08G Series is 8W DC-DC reliable railway converter. The product stands out with module type and DIP24 package. Meanwhile, the main features are as following:  international standard pins, high efficiency reaching up to 86%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance with EN501 55 railway standard, continuous-mode short circuit protection, etc. In addition, the models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. Considering its long lifetime, high reliability, and excellent quality, Meanwell RSDW08G Series is suitable for railway, trams, buses, and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.

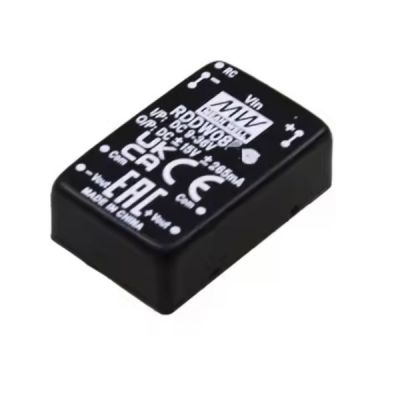

RSDW08G Meanwell Power Supply 8W 48V DC-DC Converter RSDW08G-03 RSDW08G-05 RSDW08G-12 RSDW08G-15 RSDW08 RDDW08 YCICT

Meanwell RSDW08G Series Encoding

RSDW Series Name S: Single Mode, D: Dual Mode
08 Rated Wattage
G Input Voltage ((F: 9-36Vdc, G: 18-75Vdc)
12 Output Voltage (3.3/5/12/15Vdc, ±5/±12/15Vdc)

Meanwell RSDW08G Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
RSDW08G-03 Normal 48V (18~75V) 5mA 172mA 3.3V 2000mA 80% 2000μF
RSDW08G-05 5mA 201mA 5V 1600mA 83% 1600μF
RSDW08G-12 5mA 194mA 12V 666mA 86% 666μF
RSDW08G-15 5mA 193mA 15V 530mA 86% 530μF
INPUT VOLTAGE RANGE F: 9~36Vdc, G: 18~75Vdc
SURGE VOLTAGE (100ms max.) 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER Pi type
PROTECTION (Typ.) Fuse recommended. 24Vin models: 3A delay time Type, 48Vin models: 1.5A delay time Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 8W
RIPPLE & NOISE 50mVp-p
LINE REGULATION ±0.5%
LOAD REGULATION Single output models:±0.5%, Dual output models:±1%
CROSS REGULATION ±5% at 25%~100% load
SWITCHING FREQUENCY 100KHz
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 120 ~ 180% rated output power
Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE Protection type : Clamp by diode
UNDER VOLTAGE LOCKOUT Start-up voltage 12Vin: 24Vin: 8.8Vdc, 48Vin: 17Vdc
Shutdown voltage 24Vin: 8Vdc, 48Vin: 16Vdc
5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin
FUNCTION REMOTE CONTROL Power ON: R.C. ~ -Vin >3.5~36Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +85 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0~71)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 3sec./260max.
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: compliance to EN61373(Category 1- Class B)
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 1000pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 Class A/B with external components
Radiated BS EN/EN55032 NA
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
RAILWAY STANDARD EN50155 including EN61373 for shock & vibration, EN50121-3-2 for EMC
OTHERS MTBF Single: 1500Khrs, Dual: 1300Khrs MIL-HDBK-217F(25)
DIMENSION 31.8*20.3*10.2mm (1.25*0.8*0.4 inch)
CASE MATERIAL Black coated copper with non-conductive base
PACKING 18.4g ; 10pcs/per tube, 500pcs/50 tube/per carton

Meanwell RSDW08G Series Features

l  3 years warranty

l  DIP24 package with standard pinout

l  Compliance with EN50155 railway standard

l  Wide operating temperature range -40~+85℃

l  No minimum load required

l  4:1 wide input range

l  Full encapsulated

l  1.5KVDC I/O isolation

l  Remote ON/OFF control

l  Protections: Short circuit (Continuous)/Overload/Over voltage/Input under voltage

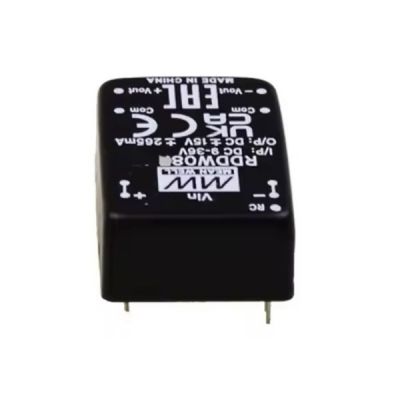

RSDW08G Meanwell Power Supply 8W 48V DIP Railway DC-DC Converter RSDW08G-03 RSDW08G-05 RSDW08G-12 RSDW08G-15 YCICT

Meanwell RSDW08G Series Applications

l  Analyzer

l  Wireless network

l  Industrial control facility

l  Instrument

l  Bus, tram, metro or railway system

l  Telecom/Datacom system

l  Highly vibrating, heavily dusty, exteremely low or high temperature harsh environment

RSDW08G Meanwell Power Supply 8W DC-DC Converter RSDW08G-03 RSDW08G-05 RSDW08G-12 RSDW08G-15 RSDW08 RDDW08 YCICT

Meanwell RSDW08G Series Mechanical Diagram

RSDW08G Meanwell Power Supply 8W DIP Package Railway DC-DC Converter RSDW08G-03 RSDW08G-05 RSDW08G-12 RSDW08G-15 YCICT
