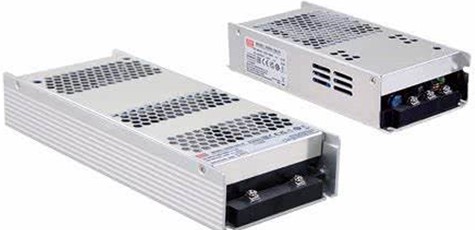

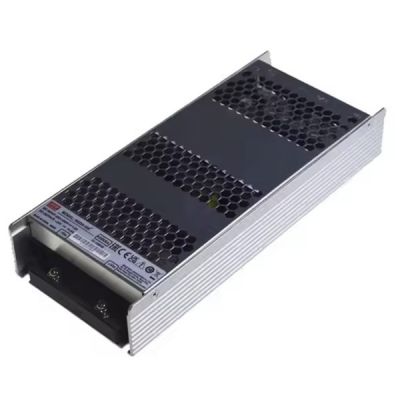

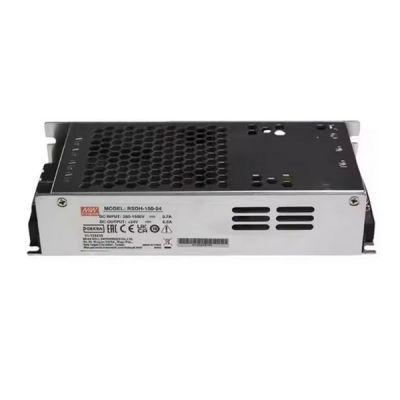

RSDH-150
47.13
Details
Meanwell RSDH-150 Series Encoding
| RSDH | Series Name |
| 150 | Rated Wattage |
| 24 | Output Voltage (12V/24V/32V/48V) |
Meanwell RSDH-150 Series Model Specifications
| ORDER NO. | RSDH-150-12 | RSDH-150-24 | RSDH-150-32 | RSDH-150-48 | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 32V | 48V |
| RATED CURRENT | 10A | 6.2A | 4.68A | 3.12A | |
| CURRENT RANGE | 0-10A | 0-6.2A | 0-4.68A | 0-3.12A | |
| RATED POWER | 120W | 150W | 150W | 150W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 240mVp-p | 240mVp-p | 300mVp-p | |
| VOLTAGE ADJ. RANGE | 12-15V | 24-29V | 30-36V | 48-58V | |
| VOLTAGE TOLERANCE | ±1.5% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.5% | ±1.5% | ±1.0% | ±1.0% | |
| EXTERNAL CAPACITANCE LOAD (Max) | 4000μF | 2500μF | 2000μF | 1000μF | |
| INPUT | VOLTAGE RANGE | 250~1500Vdc | |||
| EFFICIENCY (Typ.) 300Vdc | 88.00% | 88.00% | 88.00% | 90.00% | |
| EFFICIENCY (Typ.) 800Vdc | 88.00% | 90.00% | 91.00% | 92.00% | |
| EFFICIENCY (Typ.) 1500Vdc | 85.00% | 86.00% | 87.00% | 88.00% | |
| INRUSH CURRENT (max.) | COLD START 300A /1500Vdc 200A/800Vdc 70A/250Vdc | ||||
| EXTERNAL INPUT FUSE | 4A/1500VDC, required | ||||
| PROTECTION | OVERLOAD | 105~135% rated output power | |||
| Protection type : Hiccup mode when output voltage<55%, recovers automatically after condition is removed; Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage |
|||||
| OVER VOLTAGE | 16.5-21V | 33-42V | 40-48V | 62-70V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER TEMPERATURE | Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| DC INPUT REVERSE POLARITY | By internal Bridge Diode, no damage, recovers automatically after fault condition removed | ||||
| DC INPUT UNDER VOLTAGE LOCKOUT | Under voltage protection range: 200 ~ 225Vdc , Under voltage release range:225 ~ 246.5Vdc | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +80℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 55℃) | ||||
| VIBRATION | Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6 | ||||
| OPERATING ALTITUDE | 5000m | ||||
| OVER VOLTAGE CATEGORY | OVCⅡ2000m; According to EN62109-1 | ||||
| SAFETY & EMC | SAFETY STANDARDS | UL1741, CSA C22.2 No.107.1-16 , IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:3.75KVAC O/P-FG:2KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Parameter | Standard | Test Level | ||
| Conducted | BS EN/EN55032(CISPR32) | Class A | |||
| Radiated | BS EN/EN55032(CISPR32) | Class A | |||
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | ||||
| Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | |||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, 10V, criteria A | |||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV, criteria A | |||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV/Vin+ ~ Vin-, 4KV Vin~FG | |||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V, criteria A | |||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, 30A, criteria A | |||
| OTHERS | MTBF | 1924.7K hrs min. Telcordia SR-332 (Bellcore) ; 285.9K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 191*86*41mm (L*W*H) | ||||
| PACKING | 0.81Kg;12pcs/10.7Kg/0.75CUFT | ||||
Meanwell RSDH-150 Series Features
l 250~1500Vdc 6:1 ultra-wide input range
l Withstand 1700Vdc surge input for 10 seconds
l 4KVac I/O high isolation (Reinforced isolation)
l Protections: Short circuit/Overload/Over voltage/Over temperature/DC input under voltage/DC input reverse polarity
l Fanless design, half encapsulated, cooling by free air convection
l -40~+80℃ ultra-wide operating temperature (> +55'℃ derating)
l Over voltage category II
l Operating altitude up to 5000 meters
l DC output voltage adjustable(12~15V, 24~29V, 30~36V, 48~58V)
l 1U low profile 41 mm
l Half encapsulated
l 3 years warranty
Meanwell RSDH-150 Series Applications
l Photovoltaic power generation
l Renewable energy system
l High voltage freqency conversion
l Industrial control system
l Semiconductor fabrication equipment
l Electro-mechanical apparatus
l DC bus centralized application
l Energy storage system (ESS)
l Charging pile
l Third rail

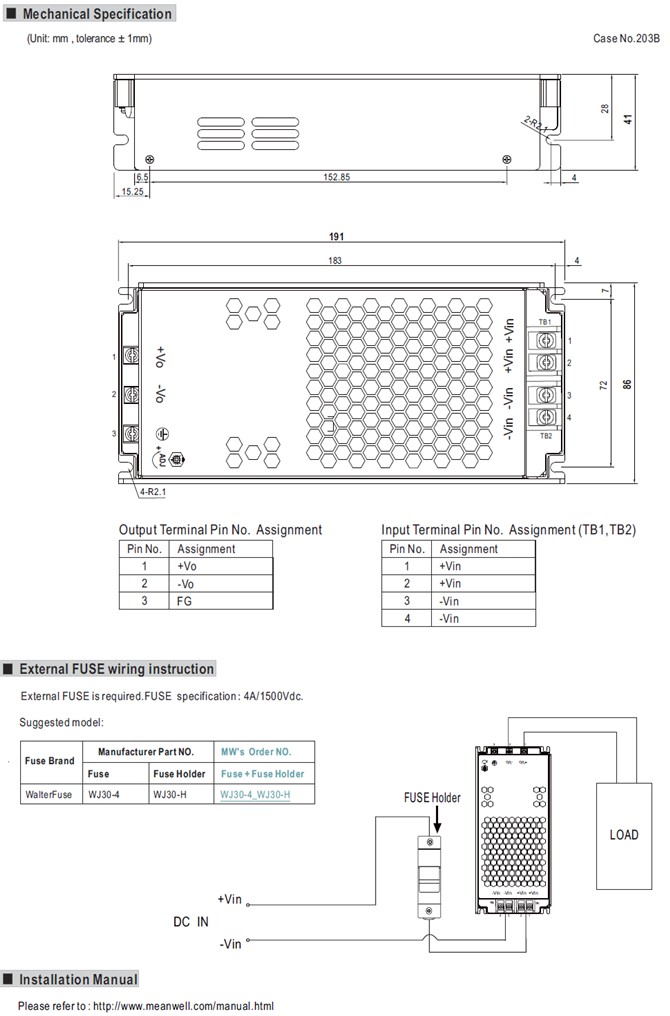

Meanwell RSDH-150 Series Mechanical Diagram
