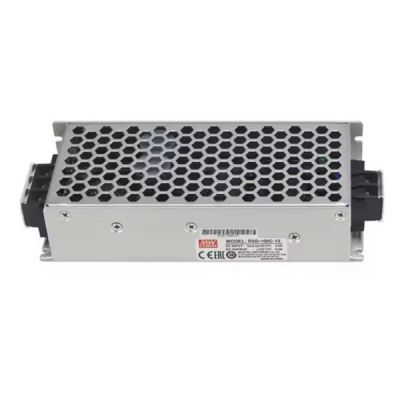

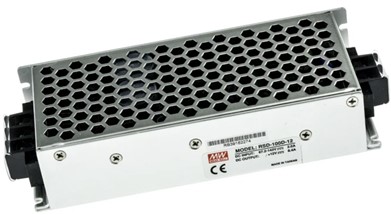

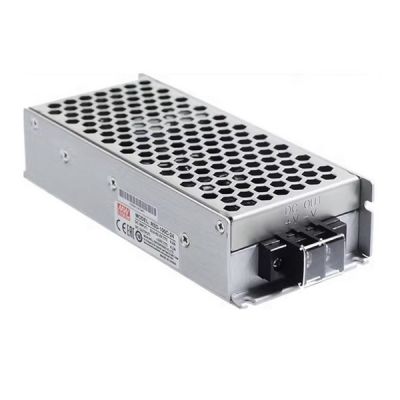

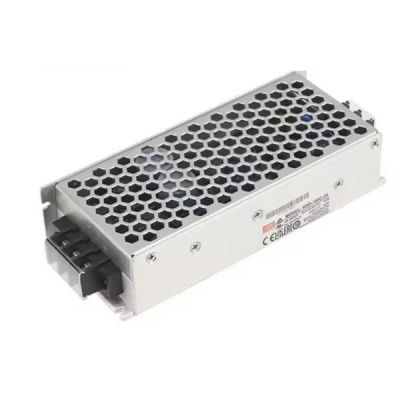

RSD-100C-24
41.51
Details
Meanwell RSD-100C-24 Specifications
| ORDER NO. | RSD-100C-5 | RSD-100C-12 | RSD-100C-24 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 24V |
| RATED CURRENT | 20A | 8.4A | 4.2A | |
| CURRENT RANGE | 0-20A | 0-8.4A | 0-4.2A | |
| RATED POWER | 100W | 100.8W | 100.8W | |
| RIPPLE & NOISE (max.) | 100mVp-p | 120mVp-p | 150mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.3% | ±0.2% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 800ms, 50ms at full load | |||
| INPUT | VOLTAGE RANGE (CONTINUOUS) | 33.6 ~ 62.4VDC | ||
| VOLTAGE RANGE 1 SEC. | 28.8 ~ 67.2VDC | |||
| EFFICIENCY (Typ.) | 89.00% | 91.00% | 91.00% | |
| DC CURRENT (Typ.) | 2.4A/48V | 2.4A/48V | 2.4A/48V | |
| INRUSH CURRENT (Typ.) | 30A/48VDC | |||
| INTERRUPTION OF VOLTAGE SUPPLY | EN50155:2007-B/C- type comply with S1 level at full load, comply with S2 level at 70% load ; D-type comply with S2 level at full load | |||
| EN50155:2017-Comply with S1 level | ||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | ||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 5.75-7V | 13.8-16.2V | 27.6-32.4V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +55℃ (no derating) ; +70℃ at 60% load by free air convection ; +70℃no derating with external base plate, TX class compliance | ||
| WORKING HUMIDITY | 5 ~ 95% RH non-condensing | |||
| STORAGE TEMP. | -40 ~ +85℃ | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373 | |||
| OPERATING ALTITUDE | 5000 meters | |||
| SAFETY & EMC | SAFETY STANDARDS | IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8, BS EN/EN55035, light industry level, EAC TP TC 020 | |||
| RAILWAY STANDARD | BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration, BS EN/EN50121-3-2 for EMC ; BS EN/EN45545-2 for fire protection | |||
| OTHERS | MTBF | 2446.2K hrs min. Telcordia SR-332 (Bellcore) ; 254.2K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 161*68*36mm (L*W*H) | |||
| PACKING | 0.563Kg; 24pcs/14.5Kg/0.91CUFT | |||
Meanwell RSD-100C-24 Features
l 1U low profile 36mm
l 2:1 wide input range
l 4000VDC I/O isolation
l LED indicator for power on
l 100% full load burn-in test
l Cooling by free air convection
l Half encapsulated
l Built-in constant current limiting circuit
l All using 105℃ long life electrolytic capacitors
l Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
l Protections: Short circuit/Overload/Over voltage/Input reverse polarity
l 3 years warranty
Meanwell RSD-100C-24 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|---|
| Meanwell DC/DC Module Type | RSD-100C-24 |
