RS-25-12
11.69
Details

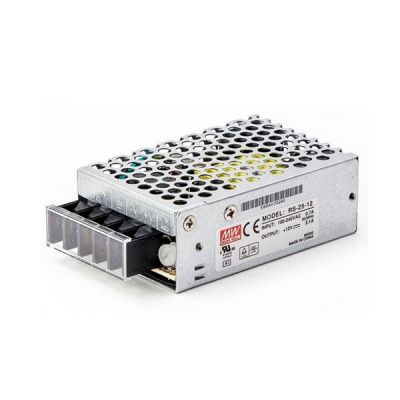

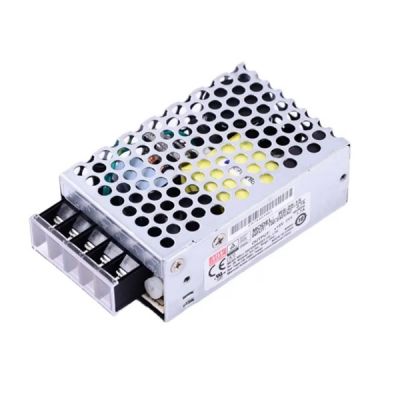

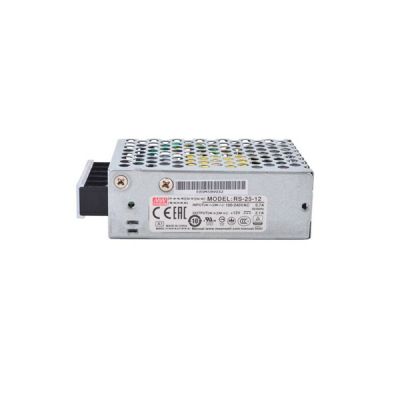

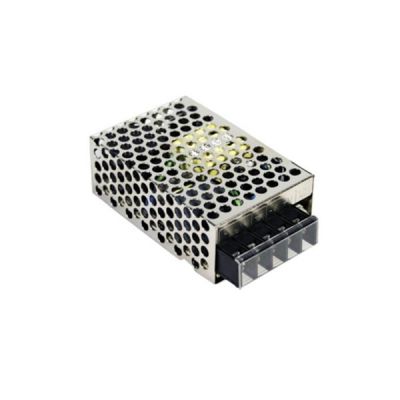

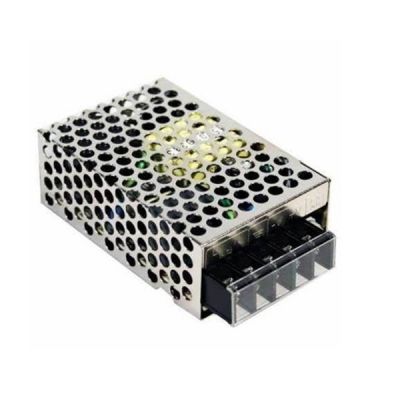

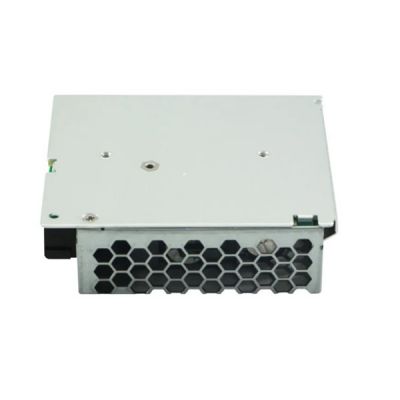

Meanwell RS-25-12 is 25W Single Miniature size, non-PFC Output Switching Power Supply with 12V2.1A0-2.1A25.2W120mVp-p10.8-13.2V. This model can withstand 5G vibration and run at 70°C high ambient temperature. With adopting 105 ℃ long life electrolytic capacitors and passing through 100% full load burn-in test, RS-25-12 is able to withstand 300 VAC surge input for 5 seconds. Additionally, 2 outputs are isolated for RID series. What’s more, RS-25-12 provides the complete protection types such as Short circuit, Over load and Over voltage. Due to its high efficiency, long life, high reliability and No load power consumption. Meanwell RS-25-12 is ideal for use in harsh working environments.
Meanwell RS-25-12 Specifications
| Model | RS-25-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 2.1A | |
| CURRENT RANGE | 0-2.1A | |
| RATED POWER | 25.2W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8-13.2V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGUL ATION | ±0.5% | |
| SETUP, RISE TIME | 1800ms, 23ms/230VAC 4000ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 80ms/230VAC 14ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 81.50% | |
| AC CURRENT (Typ.) | 0.7A/115VAC 0.4A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 45A/230VAC | |
| LEAKAGE CURRENT | <2mA / 240VAC | |
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70'C (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40~ +85C, 10~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/C (O ~ 50'C) | |
| VIBRATION | 0 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along x, Y, Z axes | |
| PROTECTION | OVERLOAD | 110 ~ 180% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed3.8~4.45V | ||
| OVER VOLTAGE | 13.8-16.2 | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| SAFETY & EMC |
SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1, EAC TP TC 004, Ccc GB4943.1, BSMI CNS14336-1,BIS IS13252(Part1):2010/IEC 60950-1: 2005 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020, CNS13438 Class B | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 309.7Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 78*51*28mm (L*W*H) | |
| PACKING | 0.2Kg; 60pcs/13Kg/0.46CUFT | |
Meanwell RS-25-12 Features
l 3 years warranty
l Withstand 5G vibration test
l Universal AC input/ Full range
l Cooling by free air convection
l LED indicator for power on
l 100% full load burn-in test
l High operating temperature up to 70℃
l No load power consumption<0.5W
l All using 105℃long life electrolytic capacitors
l Withstand 300VAC surge input for 5 second
l High efficiency, long life and high reliability
l Protections: Short circuit/Overload/Over voltage
Meanwell RS-25-12 Mechanical Diagram
