RQB60W12
61.51
Details

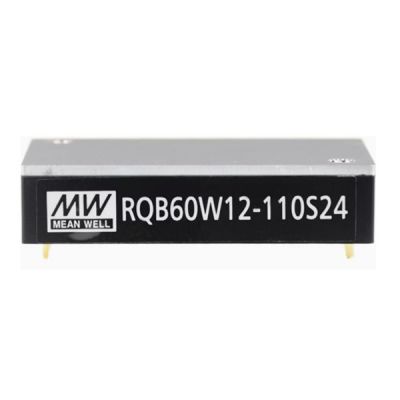

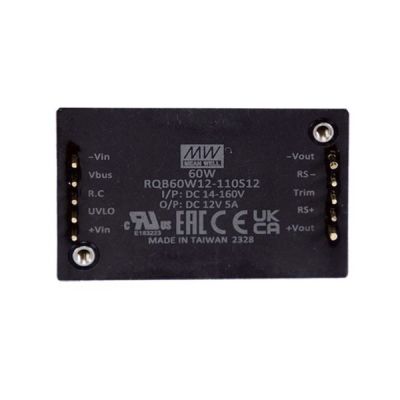

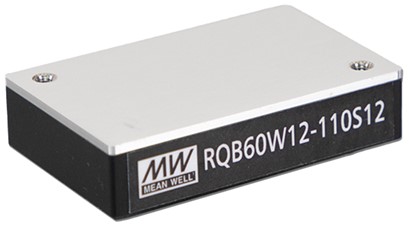

Meanwell RQB60W12 Series is 60W module type DC-DC reliable railway Converter with quarter brick package. At the same time, the main features are as following: international standard pins, high efficiency up to 91.5%, wide working temperature range -40~+90℃, 3KVDC or 2KVAC I/P-O/P isolation voltage, compliance with EN50155, meet to EN45545-2 with external circuits, continuous-mode short circuit protection, etc. Apart from them, the models input for 14~160VDC 12:1 ultra-wide input range, and various output voltage, 5V/12V/24V/48V/54V for single output. Considering its long lifetime, high efficiency and excellent reliability, Meanwell RQB60W12 Series is suitable for railway, trams, buses, and also can be used in the harsh environment with high vibration, high dust,extremely low or high temperature, etc.
Meanwell RQB60W12 Series Encoding
| RQB | Series Name |
| 60 | Rated Wattage |
| W12 | 12:1 Ultra wide input voltage (14-160Vdc) |
| 110 | Norminal input volyage (110Vdc) |
| S | Single output |
| 05 | Output volyage (5/12/24/48/54Vdc) |
Meanwell RQB60W12 Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| RQB60W12-110S05 | Nominal 24V,36V,48V,72V,96V,110V (14~160V) |
15mA | 610mA | 5V | 12A | 89% | 20000μF |
| RQB60W12-110S12 | 15mA | 610mA | 12V | 5A | 90% | 3300μF | |
| RQB60W12-110S24 | 15mA | 610mA | 24V | 2.5A | 89% | 1200μF | |
| RQB60W12-110S48 | 15mA | 610mA | 48V | 1.25A | 90% | 390μF | |
| RQB60W12-110S54 | 15mA | 610mA | 54V | 1.111A | 91% | 330μF | |
| INPUT | VOLTAGE RANGE | 14~160Vdc | |||||
| SURGE VOLTAGE (1s max.) | 200Vdc | ||||||
| FILTER | Pi type | ||||||
| PROTECTION | 10A fast acting fuse | ||||||
| SETUP TIME | 40ms (100% Load at Nominal Vin) | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.0% | |||||
| RATED POWER | 60W | ||||||
| RIPPLE & NOISE | 150mVp-p | ||||||
| LINE REGULATION | ±0.2% | ||||||
| LOAD REGULATION | ±0.2% | ||||||
| SWITCHING FREQUENCY (Typ.) | 250KHz | ||||||
| EXTERNAL TRIM ADJ. RANGE (Typ.) | ±10% | ||||||
| HOLD UP TIME | Please refer to page 5 & 6 Hold up time | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type: Continuous, automatic recovery | |||||
| OVERLOAD | 110~180% rated output power | ||||||
| Protection type: Recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | Protection type : Clamp by zener diode | ||||||
| OVER TEMPERATURE | +115℃ thermal shutdown, recovers automatically after fault condition is removed | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 13.6V | ||||||
| Shutdown voltage: 12.7V | |||||||
| FUNCTION | REMOTE CONTROL | Power ON: R.C ~ -Vin > 3~12Vdc or open circuit Power OFF: R.C ~ -Vin < 1.2Vdc or short |
|||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40~+90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +105℃max. | ||||||
| WORKING HUMIDITY | 5%~90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.05% /℃ (0 ~ 65℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 3 ~ 5sec./260℃ max | ||||||
| VIBRATION | EN61373 | ||||||
| OPERATING ALTITUDE | 3000 meters | ||||||
| SAFETY&EMC | SAFETY STANDARDS | CB IEC62368-1, UL62368-1, EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVDC or 2KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:1000M Ohms/500VDC/25℃/70% RH non-condensing | ||||||
| ISOLATION CAPACITANCE (Typ.) | 1500pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 | Class A/B with external components | |||||
| Radiated | BS EN/EN55032 | Class A/B with external components | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3,±8KV air,±6KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3,10V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, On power input port,±2KV external input capacitor required | |||||
| Surge | BS EN/EN61000-4-5 | Level 3, On power input port,±2KV external input capacitor required | |||||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V/m | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 3, 10V/m | |||||
| RAILWAY STANDARD | EN50155 / IEC60571 including EN61373 for shock & vibration, EN50121-3-2 for EMC; Meet to EN45545-2 | ||||||
| OTHERS | MTBF | 205Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION (L*W*H) | 57.9*36.8*12.7mm (2.28*1.45*0.5 inch) | ||||||
| CASE MATERIAL | Aluminum base plate with plastic case | ||||||
| PACKING | 68g ; 11pcs/per tube, 132pcs/12 tube/per carton | ||||||
Meanwell RQB60W12 Series Features
l Quarter-brick (2.28"X1.45"x0.5") with industrial standard pin-out
l Compliance with railway standard EN50155, design meet EN45545-2
l 12:1 (14~160Vdc) ultra-wide input range
l Wide operating temperature range -40~+90℃
l No minimum load required
l Full encapsulated
l Protections: Short circuit (Continuous)/Overload/Over temperature/Over voltage/Input under voltage
l 3KVDC or 2KVAC I/O isolation
l Remote ON/OFF control and remote sense
l Trimming output ±10%
l 3 years warranty
Meanwell RQB60W12 Series Applications
l Instrument
l Analyzer
l Bus, tram, metro or railway system
l Telecom/datacom system
l Wireless network
l Industrial control facility
l Highly vibrating, heavily dusty, exteremely low or high temperature harsh environment

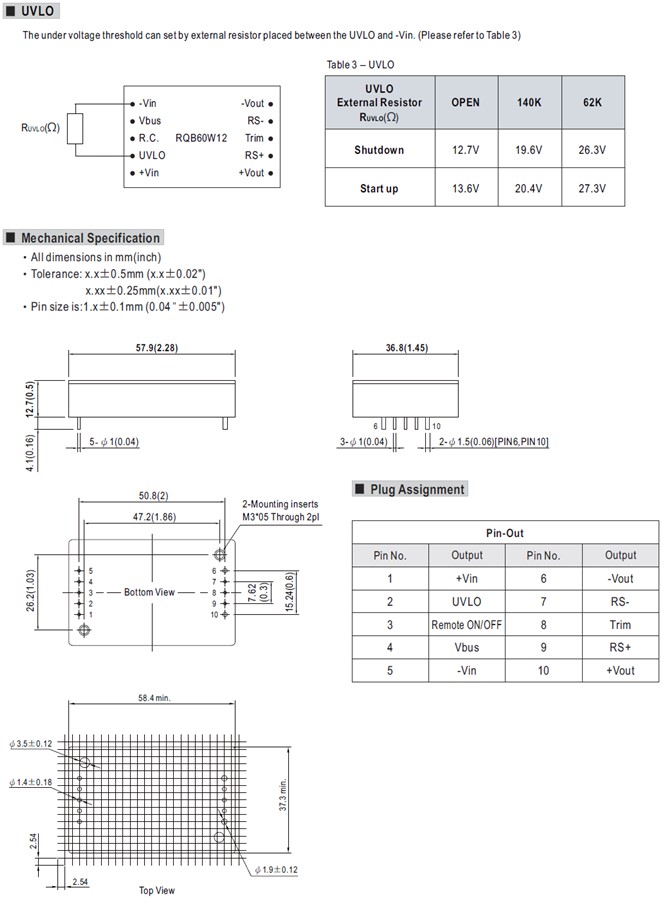

Meanwell RQB60W12 Series Mechanical Diagram
