RQB150W12
86.51
Details

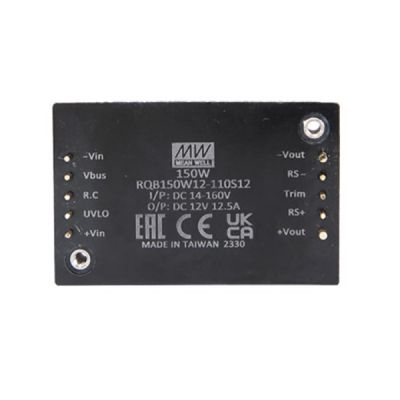

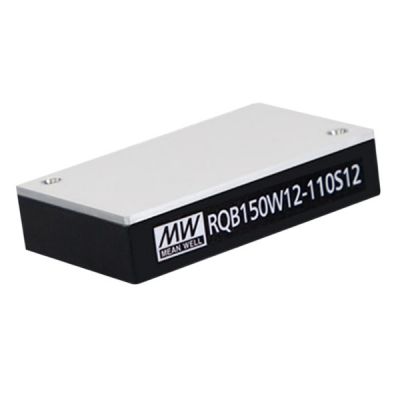

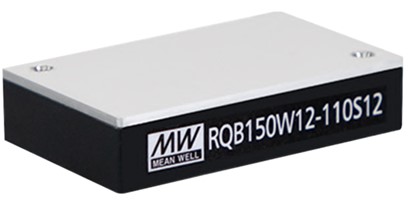

Meanwell RQB150W12 Series is 150W module type DC-DC reliable railway Converter with quarter brick package. At the same time, the main features are as following: international standard pins, high efficiency up to 88%, wide working temperature range -40~+90℃, 3KVAC I/P-O/P isolation voltage, meet EN50155 with external circuits, continuous-mode short circuit protection, etc. Apart from them, the models input for 14~ 160VDC 12:1 wide input range, and various output voltage, 12V/24V/48V/54V for single output. Considering its longevity, high efficiency and excellent performance, Meanwell RQB150W12 Series is suitable for railway, trams, buses, and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.
Meanwell RQB150W12 Series Encoding
| RQB | Series Name |
| 150 | Rated Wattage |
| W12 | 12:1 wide input voltage (14-160Vdc) |
| 110 | Norminal input volyage (110Vdc) |
| S | Single output |
| 12 | Output volyage (12/24/48/54Vdc) |
Meanwell RQB150W12 Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| RQB150W12-110S12 | Nominal 24V,36V,48V,72V,96V,110V (14 ~ 160V) | 10mA | 1.55A | 12V | 12.5A | 88% | 5000μF |
| RQB150W12-110S24 | 10mA | 1.55A | 24V | 6.25A | 87.5% | 2000μF | |
| RQB150W12-110S48 | 10mA | 1.55A | 48V | 3.125A | 87.5% | 1000μF | |
| RQB150W12-110S54 | 10mA | 1.55A | 54V | 2.778A | 88% | 1000μF | |
| INPUT | VOLTAGE RANGE | 14~160Vdc | |||||
| SURGE VOLTAGE (1s max.) | 200Vdc | ||||||
| FILTER | Pi type | ||||||
| PROTECTION | 15A/250Vac time delay fuse | ||||||
| SETUP TIME | 300ms max. (100% Load at Nominal Vin) | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.0% | |||||
| RATED POWER | 150W | ||||||
| RIPPLE & NOISE | 12V/24V=240mVp-p, 48V/54V=480mVp-p | ||||||
| LINE REGULATION | ±0.2% | ||||||
| LOAD REGULATION | ±0.5% | ||||||
| SWITCHING FREQUENCY (Typ.) | 250KHz | ||||||
| EXTERNAL TRIM ADJ. RANGE (Typ.) | ±10% | ||||||
| HOLD UP TIME | Please refer to page 5 Hold up time | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type: Continuous, automatic recovery | |||||
| OVERLOAD | 120~200% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 110 ~ 150% rated output voltage | ||||||
| Protection type : Shutdown (latch) | |||||||
| OVER TEMPERATURE | +115℃ thermal shutdown, recovers automatically after fault condition is removed | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 13.2V | ||||||
| Shutdown voltage: 12V | |||||||
| FUNCTION | REMOTE CONTROL | Power ON: R.C ~ -Vin > 3 ~ 12Vdc or open circuit Power OFF: R.C ~ -Vin < 1.2Vdc or short |
|||||
| ENVIRONMENT | COOLING | Natural convection | |||||
| WORKING TEMP. | -40~+90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +115℃ max. | ||||||
| WORKING HUMIDITY | 5%~90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.05% /℃ (0 ~ 65℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 3 ~ 5sec./260℃ max | ||||||
| VIBRATION | EN61373 | ||||||
| OPERATING ALTITUDE | 4000 meters | ||||||
| SAFETY&EMC | SAFETY STANDARDS | LVD IEC62368-1, EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-CASE:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH non-condensing | ||||||
| ISOLATION CAPACITANCE (Typ.) | 3000pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 | Class A/B with external components | |||||
| Radiated | BS EN/EN55032 | Class A/B with external components | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3,±6KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, On power input port,±2KV external input capacitor required | |||||
| Surge | BS EN/EN61000-4-5 | Level 3, On power input port,±2KV external input capacitor required | |||||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V/m (r.m.s.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||
| RAILWAY STANDARD | EN50155 including EN61373 for shock & vibration, EN50121-3-2 for EMC | ||||||
| OTHERS | MTBF | 185Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION (L*W*H) | 57.9*36.8*12.7mm (2.28*1.45*0.5 inch) | ||||||
| CASE MATERIAL | Aluminum base plate with plastic case | ||||||
| PACKING | 75g ; 11pcs/per tube, 132pcs/12 tube/per carton | ||||||
Meanwell RQB150W12 Series Features
l Quarter-brick (2.28"X1.45"X0.5") with industrial standard pin-out
l Compliance with railway standard EN50155
l 12:1 (14~160Vdc) wide input range
l Wide operating temperature range -40~+90℃
l No minimum load required
l Full encapsulated
l Protections: Short circuit (Continuous)/Overload/Over temperature/Over voltage/Input under voltage lockout
l 3KVAC I/O isolation
l Remote ON/OFF control and remote sense
l Trimming output ±10%
l 3 years warranty
Meanwell RQB150W12 Series Applications
l Bus, tram, metro or railway system
l Telecom/datacom system
l Wireless network
l Industrial control facility
l Instrument
l Analyzer
l Highly vibrating, heavily dusty, exteremely low or high temperature harsh environment

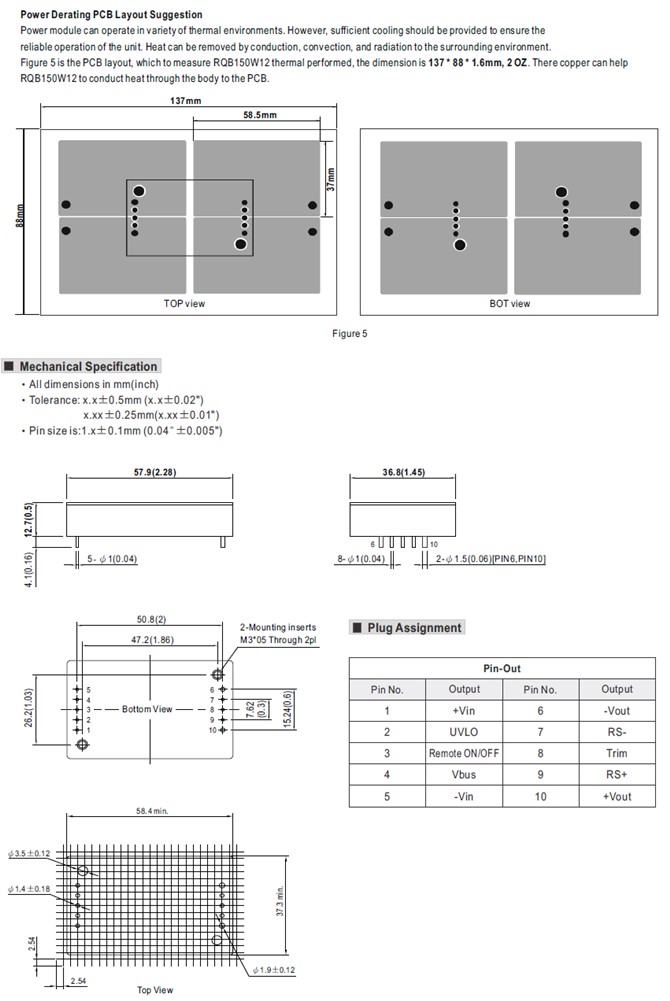

Meanwell RQB150W12 Series Mechanical Diagram
