RPT(G)-160B
50.36
Details

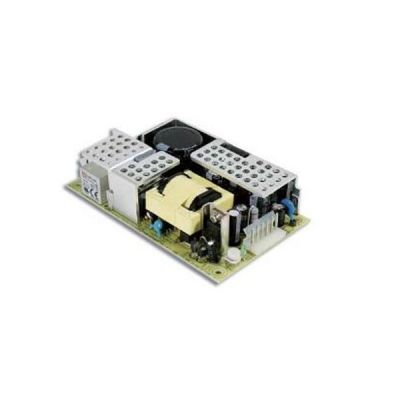

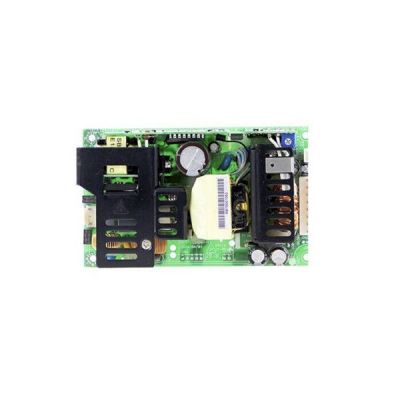

Meanwell RPT (G)-160B is a 145W highly reliable green PCB type medical power supply with CH1CH2CH35V12V-12V14A5A1A0.6-14A0.2-5A0.1-1A0.6-9A0.2-3.4A0.1-0.8A146W98.4W CH1:5~5.5V. It is designed with high power density on the 5" by 3" footprint, accepts 90~264VAC input with triple output voltages. In addition, RPT (G)-160B highlights the working efficiency up to 94%, extremely low no load power consumption and low leakage current less than 160uA. Based on them, the product could be used for ClassⅠ(with FG) system design. As per 100W convection, 145W force air and EMI Class B for ClassⅠconfiguration. RPT (G)-160B meets the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, it offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. RPT (G)-160B also has the enclosed style model [RPT(G)-160-C]. Thanks to its long lifespan, high reliability, excellent quality, Meanwell RPT(G)-160B is perfectly fitting all kinds of BF rated patient contact" medical system equipment.
Meanwell RPT (G)-160B Encoding
| RPT | Series Name |
| G | Green model, with 5V sb and no load <0.75W |
| 160 | Rated Wattage |
| B | Output Voltage |
| C | Type |
| Blank | PCB Type |
| C | Enclosed Casing Type |
Meanwell RPT (G)-160B Specifications
| Model | RPT(G)-160B | ||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 | |
| DC VOLTAGE | 5V | 12V | -12V | ||
| CURRENT RANGE | RATED (20.5CFM) | 14A | 5A | 1A | |
| RANGE(20.5CFM) | 0.6-14A | 0.2-5A | 0.1-1A | ||
| RANGE (convection) | 0.6-9A | 0.2-3.4A | 0.1-0.8A | ||
| RATED POWER | 20.5CFM | 146W | |||
| Convection | 98.4W | ||||
| RIPPLE & NOISE (max.) | 60mVp-p | 100mVp-p | 100mVp-p | ||
| VOLTAGE ADJ. RANGE | CH1:5 ~ 5.5V | ||||
| VOLTAGE TOL ERANCE | ±2.0% | ±5.0% | -4+5% | ||
| LINE REGULATION | ±0.5% | ±1.0% | ±1.0% | ||
| LOAD REGUL .ATION % | ±1.5% | ±3.0% | -4+5% | ||
| SETUP, RISE TIME | 1800ms, 30ms/230VAC 3500ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 30ms/230VAC 20ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 84% | ||||
| AC CURRENT (Typ.) | 1.8A/115VAC 0.9A/230VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | ||||
| LEAKAGE CURRENT | Earth leakage current < 160 A/264VAC , Touch current < 100 A/264VAC | ||||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | Ch1: 5.7 ~ 6.8V | ||||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE | TSW1: Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| TSW2: Shut down o/p voltage, re-power on to recover | |||||
| FUNCTION | 5V STANDBY (G model) | 5Vsb : 5V@0.6A without fan, 0.8A with fan 20.5CFM ; Tolerance ± 2%, ripple : 50mVp-p(max.) | |||
| POWER GOOD / POWER FAIL | 500ms>PG>10ms PF>1ms | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| OPERATING ALTITUDE | 3000 meters | ||||
| SAFETY & EMC | SAFETY STANDARDS | Design refer to IEC60601-1, EAC TP TC 004,TUV BS EN/EN60601-1(Pending for CB/TUV) | |||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||||
| OTHERS | MTBF | 1719.1K hrs min. Telcordia SR-332 (Bellcore) ; 175.1K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | PCB type: 127* 76.2 * 34.6mm or 5"* 3"* 1.36" inch Enclosed type: 130 86 43mm or 5.11" 3.39" 1.69" inch | ||||
| PACKING | 0.33Kg; 36pcs/12.9Kg/0.96CUFT 0.49Kg; 24pcs/12.8Kg/0.77CUFT | ||||
Meanwell RPT (G)-160B Features
l 5"x3"compact size
l Lifetime >85K hours
l 3 years warranty
l 100W convection, 145W force air
l EMI Class B for ClassⅠconfiguration
l Extremely low leakage current
l 5Vdc standby output, Power Good, Power Fail
l No load power consumption<0.75W by PS-ON control (G model)
l Suitable for BF application with appropriate system consideration
l Protections: Short circuit /Overload/Over voltage/Over temperature
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN 60601-1
Meanwell RPT (G)-160B Applications
l Oral irrigator
l Medical monitors
l Sleep apnea devices
l Pumps machine
l Hemodialysis machine
Meanwell RPT (G)-160B Mechanical Diagram
