RPT-75A
22.14
Details

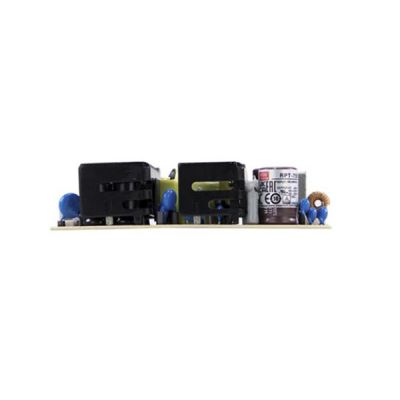

Meanwell RPT-75A is a 72W highly reliable green PCB type medical power supply with CH1CH2CH35V12V-5V6A3A0.5A0.6-8A0.2-4A0.1-1A68.5W93W800mVp-p1200mVp-p800mVp-pCH1:4.75 ~5.5V. The product is designed with high power density on the 5" by 3" footprint, and accepts 90~264VAC input with triple output voltages. At the same time, RPT-75A stands out with the high working efficiency, low no load power consumption and extremely low leakage current. Therefore, it is able to be applied for ClassⅠ(with FG) system design. As per 72W convection, 100W force air and EMI class B for classⅠconfiguration, RPT-75A complies with the international medical regulations (2*MOPP) and EMC BS EN/EN55011. In addition to them, the item provides the various protection functions such as Short circuit, Overload and Over voltage. Due to its long lifespan, high reliability, excellent quality, Meanwell RPT-75A is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPT-75A Encoding
| RPT | Series Name |
| 75 | Rated Wattage |
| A | Output Voltage |
Meanwell RPT-75A Specifications
| Model | RPT-75A | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 |
| DC VOLTAGE | 5V | 12V | -5V | |
| RATED CURRENT | 6A | 3A | 0.5A | |
| CURRENT RANGE | 0.6-8A | 0.2-4A | 0.1-1A | |
| RATED POWER | 68.5W | |||
| PEAK LOAD (23.5 CFM) | 93W | |||
| RIPPLE & NOISE (max.) mVp-p | 80 | 120 | 80 | |
| VOLTAGE ADJ. RANGE | CH1:4.75 ~ 5.5V | |||
| VOLTAGE TOL ERANCE | ±2.0% | ±6.0% | ±5.0% | |
| LINE REGULATION | ±0.5% | ±1.0% | ±1.0% | |
| LOAD REGUL .ATION | ±1.5% | ±3.0% | ±1.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 90ms/230VAC 20ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 76.00% | |||
| AC CURRENT (Typ.) | 1.5A/115VAC 1A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 50A/230VAC | |||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | |||
| PROTECTION | OVERL OAD | 140 ~ 180% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | Ch1: 5.7 ~ 6.8V | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| OPERATING ALTITUDE | 3000 meters | |||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, EAC TP TC 004,TUV BS EN/EN60601-1 approved | ||
| ISOLATION LEVEL | Primary-Secondary:2xMOPP, Primary-Earth:1xMOPP | |||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||
| OTHERS | MTBF | 2305.8K hrs min. Telcordia SR-332 (Bellcore) ; 521.3K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 127*76.2*31mm or 5" * 3" *1.22" inch | |||
| PACKING | 0.25Kg; 63pcs/17.3Kg/1.28CUFT | |||
Meanwell RPT-75A Features
l 5"x3"compact size
l Lifetime>140K hours
l 3 years warranty
l 72W convection, 100W force air
l EMI class B for classⅠconfiguration
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and I EC/BS E N/E N60601-1
l Suitable for BF application with appropriate system consideration
Meanwell RPT-75A Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
Meanwell RPT-75A Mechanical Diagram
