RPT-7503
23.17
Details

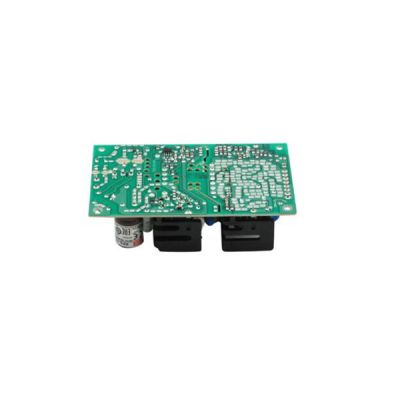

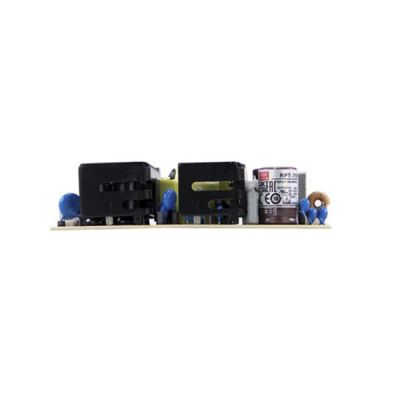

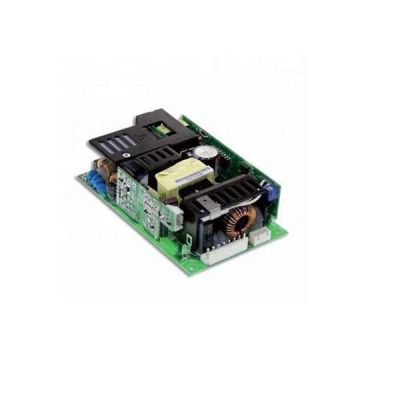

Meanwell RPT-7503 is a 72W highly reliable green PCB type medical power supply with CH1CH2CH33.3V5V12V6A6A1A0.7-7A0-8A0-1.5A61.8W81.1W80mVp-p120mVp-p120mVp-p. The unit accepts 90~264VAC input, and triple output voltages. with high power density on the 5" by 3" footprint. At the same time, RPT-7503 features the high working efficiency up to 77%, extremely low no load power consumption and extremely low leakage current. Thus, it could be used for ClassⅠ(with FG) system. As per 72W convection, 100W force air and EMI class B for classⅠconfiguration, RPT-7503 complies with the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Additionally, it offers the various protection functions such as Short circuit, Overload and Over voltage. As a result of its long lifespan, high reliability, excellent quality, Meanwell RPT-7503 is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPT-7503 Encoding
| RPT | Series Name |
| 75 | Rated Wattage |
| 03 | Output Voltage |
Meanwell RPT-7503 Specifications
| Model | RPT-7503 | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 |
| DC VOLTAGE | 3.3V | 5V | 12V | |
| RATED CURRENT | 6A | 6A | 1A | |
| CURRENT RANGE | 0.7-7A | 0-8A | 0-1.5A | |
| RATED POWER | 61.8W | |||
| PEAK LOAD (23.5 CFM) | 81.1W | |||
| RIPPLE & NOISE (max.) mVp-p | 80 | 120 | 120 | |
| VOLTAGE ADJ. RANGE | ---- | |||
| VOLTAGE TOL ERANCE | ±4.0% | ±6.0% | ±10% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.5% | |
| LOAD REGUL .ATION | +3,-4% | +5,-4% | ±6.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 90ms/230VAC 20ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 74.00% | |||
| AC CURRENT (Typ.) | 1.5A/115VAC 1A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 50A/230VAC | |||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | |||
| PROTECTION | OVERL OAD | 140 ~ 180% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | Ch1: 3.8 ~ 4.5V | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| OPERATING ALTITUDE | 3000 meters | |||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, EAC TP TC 004,TUV BS EN/EN60601-1 approved | ||
| ISOLATION LEVEL | Primary-Secondary:2xMOPP, Primary-Earth:1xMOPP | |||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||
| OTHERS | MTBF | 2305.8K hrs min. Telcordia SR-332 (Bellcore) ; 521.3K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 127*76.2*31mm or 5" * 3" *1.22" inch | |||
| PACKING | 0.25Kg; 63pcs/17.3Kg/1.28CUFT | |||
Meanwell RPT-7503 Features
l 5"x3"compact size
l 72W convection, 100W force air
l EMI class B for class Ⅰconfiguration
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage
l Lifetime>140K hours
l 3 years warranty
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and I EC/BS E N/E N60601-1
l Suitable for BF application with appropriate system consideration
Meanwell RPT-7503 Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
Meanwell RPT-7503 Mechanical Diagram
