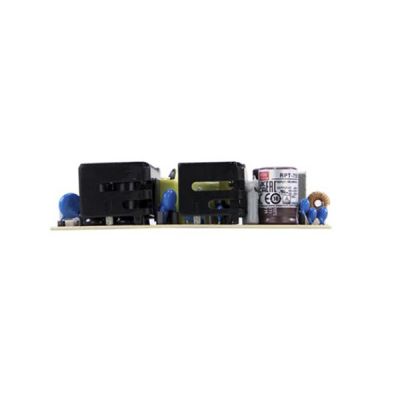

Meanwell RPT-75 Series is a 72W highly reliable green PCB type medical power supply. The entire series is designed with high power density on the 5" by 3" footprint. At the same time, it accepts 90~264VAC input and offers triple output voltages. In addition, RPT-75 features the high working efficiency up to 77%, extremely low no load power consumption and extremely low leakage current. So that, it is able to be used for ClassⅠ(with FG) system design. As per 72W convection, 100W force air and EMI class B for classⅠconfiguration, RPT-75 conforms to the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, the series provides the various protection functions such as Short circuit, Overload and Over voltage. Considering its long lifespan, high reliability, excellent quality, Meanwell RPT-75 Series is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPT-75 Series Encoding
| RPT | Series Name |
| 75 | Rated Wattage |
| A | Output Voltage |
Meanwell RPT-75 Series Model Specifications
| Model | RPT-75A | RPT-75B | RPT-75C | RPT-75D | RPT-7503 | |||||||||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC VOLTAGE | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 24V | 12V | 3.3V | 5V | 12V | |
| RATED CURRENT | 6A | 3A | 0.5A | 6A | 3A | 0.5A | 6A | 2.3A | 0.5A | 5A | 1.5A | 1A | 6A | 6A | 1A | |
| CURRENT RANGE | 0.6-8A | 0.2-4A | 0.1-1A | 0.6-8A | 0.2-4A | 0.1-1A | 0.6-8A | 0.1-3A | 0.1-1A | 0.6-7A | 0.1-2A | 0.1-1A | 0.7-7A | 0-8A | 0-1.5A | |
| RATED POWER | 68.5W | 72W | 72W | 73W | 61.8W | |||||||||||
| PEAK LOAD (23.5 CFM) | 93W | 100W | 100W | 95W | 81.1W | |||||||||||
| RIPPLE&NOISE (max.)mVp-p | 80 | 120 | 80 | 80 | 120 | 80 | 80 | 120 | 80 | 80 | 200 | 120 | 80 | 120 | 120 | |
| VOLTAGE ADJ. RANGE | CH1:4.75 ~ 5.5V | ---- | ||||||||||||||
| VOLTAGE TOL ERANCE | ±2.0% | ±6.0% | ±5.0% | ±2.0% | ±6.0% | ±5.0% | ±2.0% | ±8.0% | ±5.0% | ±2.0% | ±8.0% | ±8.0% | ±4.0% | ±6.0% | ±10% | |
| LINE REGULATION | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.5% | |
| LOAD REGUL .ATION | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±3.0% | +3,-4% | +5,-4% | ±6.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |||||||||||||||
| HOLD UP TIME (Typ.) | 90ms/230VAC 20ms/115VAC at full load | |||||||||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||||||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||||||||
| EFFICIENCY (Typ.) | 76.00% | 77.00% | 77% | 79% | 74% | |||||||||||
| AC CURRENT (Typ.) | 1.5A/115VAC 1A/230VAC | |||||||||||||||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 50A/230VAC | |||||||||||||||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | |||||||||||||||
| PROTECTION | OVERL OAD | 140 ~ 180% rated output power | ||||||||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||||||||
| OVER VOLTAGE | Ch1: 5.7 ~ 6.8V | Ch1: 3.8 ~ 4.5V | ||||||||||||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||||||||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |||||||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||||||||
| OPERATING ALTITUDE | 3000 meters | |||||||||||||||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, EAC TP TC 004,TUV BS EN/EN60601-1 approved | ||||||||||||||
| ISOLATION LEVEL | Primary-Secondary:2xMOPP, Primary-Earth:1xMOPP | |||||||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||||||||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | ||||||||||||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | ||||||||||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||||||||||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | ||||||||||||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||||||||||||||
| Parameter | Standard | Test Level | ||||||||||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||||||||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
||||||||||||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | ||||||||||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG ; 2KV/Line-Line | ||||||||||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||||||||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||||||||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||||||||||||||
| OTHERS | MTBF | 2305.8K hrs min. Telcordia SR-332 (Bellcore) ; 521.3K hrs min. MIL-HDBK-217F (25℃) | ||||||||||||||
| DIMENSION | 127*76.2*31mm or 5" * 3" *1.22" inch | |||||||||||||||
| PACKING | 0.25Kg; 63pcs/17.3Kg/1.28CUFT | |||||||||||||||
Meanwell RPT-75 Series Features
l 5"x3"compact size
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and I EC/BS E N/E N60601-1
l Suitable for BF application with appropriate system consideration
l 72W convection, 100W force air
l EMI class B for class Ⅰconfiguration
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage
l Lifetime>140K hours
l 3 years warranty
Meanwell RPT-75 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices

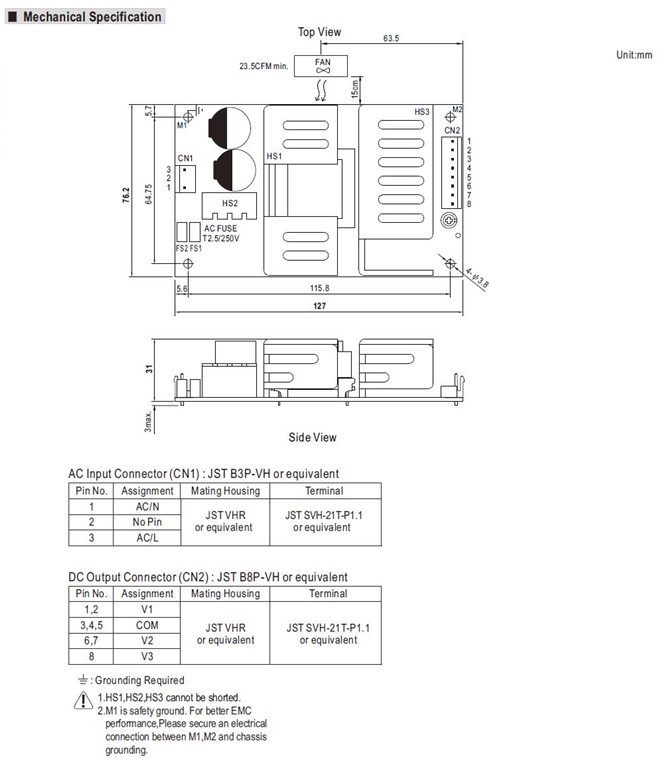

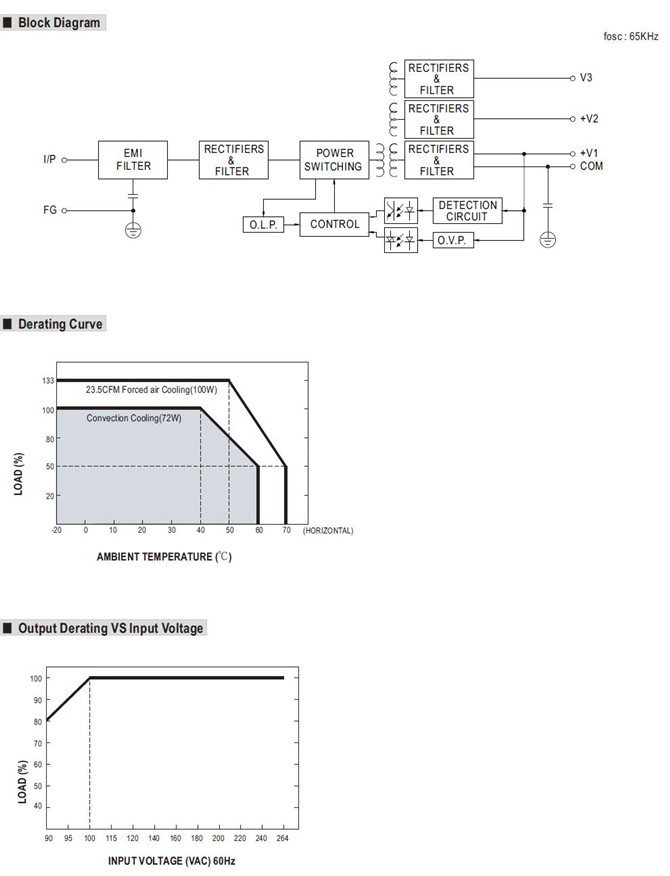

Meanwell RPT-75 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
