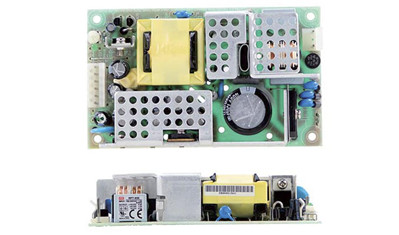

Meanwell RPT-65 Series is 65W Triple Output Switching Power Supply. The entire series outstands with Universal AC input/Full range and Fixed switching frequency at 65KHz. At the same time, it allows universal input voltage range of 90~264V AC and Optional L-Bracket and cover (RPT-65x-C, x=E, F, G). Additionally, the working efficiency reaches up to 81% and operates from -20 ℃through 60 ℃ under free air convection. Apart from them, RPT-65 provides the various protections functions such as Short circuit, Overload and Over voltage. Since the series passes 100% full load burn-in test and the extremely low leakage current less than 1.0 mA, this permits to satisfy the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Considering its high reliability, good quality and longevity, Meanwell RPT-65 Series is an ideal solution for various industrial applications in critical working environments.
Meanwell RPT-65 Series Models Specifications

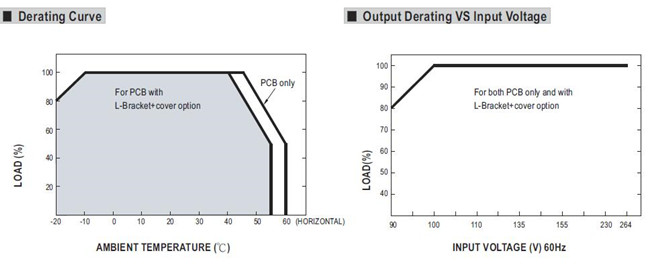

| Model | RPT-65E | RPT-65F | RPT-65G | |||||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC VOLTAGE | 12V | 5V | -5V | 12V | 5V | -12V | 24V | 5V | 12V | |
| RATED CURRENT | 4.5A | 1.2A | 0.5A | 4.5A | 1.2A | 0.5A | 2.25A | 1.2A | 0.5A | |
| CURRENT RANGE | 0.18-5.8A | 0-1.5A | 0-0.7A | 0.18-5.8A | 0-1.5A | 0-0.7A | 0.09-2.9A | 0-1.5A | 0-0.7A | |
| PEAK LOAD | 7.5A | Rated Load | Rated Load | 7.5A | Rated Load | Rated Load | 3.75a | Rated Load | Rated Load | |
| RATED POWER | 62W | 66W | 66W | |||||||
| OUTPUT POWER (max.) | Rated output power for convection; 80W with 18CFM min. forced air | |||||||||
| RIPPLE & NOISE (max.) | 120mVp-p | 100mVp-p | 120mVp-p | 150mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 50mVp-p | 100mVp-p | |
| VOLTAGE ADJ. RANGE | CH1:11.4 ~ 12.8V | CH1:11.4 ~ 12.8V | CH1:22.8 ~ 26.4V | |||||||
| VOLTAGE TOL ERANCE | ±2.0% | ±5.0% | ±5.0% | ±2.0% | ±5.0% | ±5.0% | ±2.0% | ±5.0% | ±5.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGUL .ATION | ±2.0% | ±5.0% | ±5.0% | ±2.0% | ±5.0% | ±5.0% | ±2.0% | ±5.0% | ±5.0% | |
| SETUP, RISE TIME | 800ms, 20ms at full load | |||||||||
| HOLD UP TIME (Typ.) | 20ms at full load | |||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 440Hz | |||||||||
| EFFICIENCY (Typ.) | 77.00% | 77.00% | 81.00% | |||||||
| AC CURRENT (Typ.) | 1.5A/115VAC 0.9A/230VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 50A/230VAC | |||||||||
| LEAKAGE CURRENT | <1mA | |||||||||
| PROTECTION | OVERL OAD | 90 ~ 125W output power | ||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | CH1:13.8 ~ 16.2V | CH1:13.8 ~ 16.2V | CH1:27.6 ~ 32.4V | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃(Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.04%/℃(0 ~ 50℃) on +5V output | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||||||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | |||||||||
| OTHERS | MTBF | 288.1K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | PCB:127*76*29mm (L*W*H) ; with optional CASE:130*85*37mm (L*W*H) | |||||||||
| PACKING | PCB:0.24Kg; 63pcs/16Kg/1.28CUFT ; with optional CASE:0.47Kg;32pcs/16Kg/0.73CUFT | |||||||||
Meanwell RPT-65 Series Features
l Universal AC input/Full range
l 12V or 24V high peak output current capability
l Optional L-Bracket and cover ( RPT-65x-C, x=E,F,G)
l Low leakage current<1mA
l Protections: Short circuit/Overload/Over voltage
l 65W free air convection, 80W with 18 CFM forced air
l 100% full load burn-in test
l Fixed switching frequency at 65KHz
l 2 years warranty

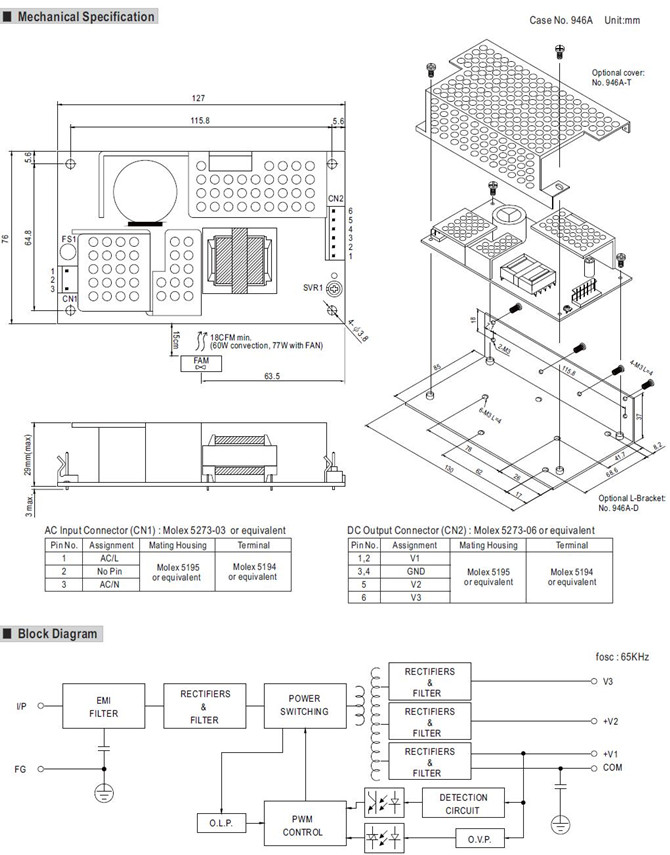

Meanwell RPT-65 Series Mechanical Diagram
