RPT-60B
15.37
Details

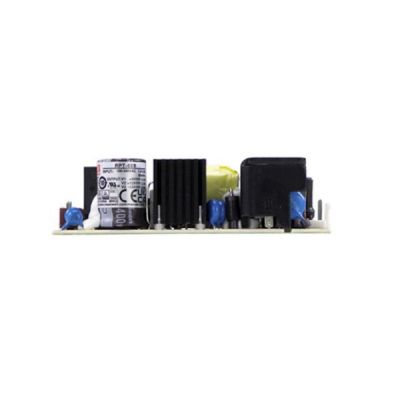

Meanwell RPT-60B is a 60W highly reliable green PCB type medical power supply with CH1CH2CH35V12V-12V4A2A0.5A0.5-4.4A0.1-2.2A0.1-0.55A50W55W80mVp-p80mVp-p100mVp-p. It is designed with high power density on the 4" by 2" footprint with 90~264VAC input and triple output voltages. At the same time, RPT-60B highlights the working efficiency reaching up to 79%, low no load power consumption and low leakage current. Based on them, the item is able to be applied for ClassⅠ(with FG) system design. As per cooling by free air convection and EMI class B for classⅠconfiguration, RPT-60B satisfies the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Moreover, the product offers the various protection functions such as Short circuit, Overload and Over voltage. Thanks to its long lifespan, high reliability, excellent quality, Meanwell RPT-60B is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPT-60B Encoding
| RPT | Series Name |
| 60 | Rated Wattage |
| B | Output Voltage |
Meanwell RPT-60B Specifications
| Model | RPT-60B | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 |
| DC VOLTAGE | 5V | 12V | -12V | |
| RATED CURRENT | 4A | 2A | 0.5A | |
| CURRENT RANGE | 0.5-4.4A | 0.1-2.2A | 0.1-0.55A | |
| RATED POWER | 50W | |||
| PEAK LOAD (10sec.) | 55W | |||
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 100mVp-p | |
| VOLTAGE TOL ERANCE | +3,-2.0% | ±6.0% | ±10% | |
| LINE REGULATION | ±0.5% | ±1.0% | ±2.0% | |
| LOAD REGUL .ATION | ±1.5% | ±2.0% | ±5.0% | |
| SETUP, RISE TIME | 300ms, 15ms/230VAC 300ms, 15ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 70ms/230VAC 15ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 78.00% | |||
| AC CURRENT (Typ.) | 1.1A/115VAC 0.7A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 60A/230VAC 30A/115VAC | |||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | |||
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | CH1: 5.75 ~ 6.75V | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +65℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| OPERATING ALTITUDE | 3000 meters | |||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1,IEC62368-1,IEC60601-1, EAC TP TC 004,UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved | ||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | |||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||
| OTHERS | MTBF | 4415.3K hrs min. Telcordia SR-332 (Bellcore) ; 677.8K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 101.6*50.8*29mm or 4" * 2" *1.14" inch | |||
| PACKING | 0.15Kg; 96pcs/15.4Kg/0.89CUFT | |||
Meanwell RPT-60B Features
l 4"x2"compact size
l 3 years warranty
l Cooling by free air convection
l EMI class B for classⅠconfiguration
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage
l Suitable for BF application with appropriate system consideration
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell RPT-60B Applications
l Oral irrigator
l Hemodialysis machine
l Sleep apnea devices
l Medical computer monitors
Meanwell RPT-60B Mechanical Diagram
