RPT-60A
15.12
Details

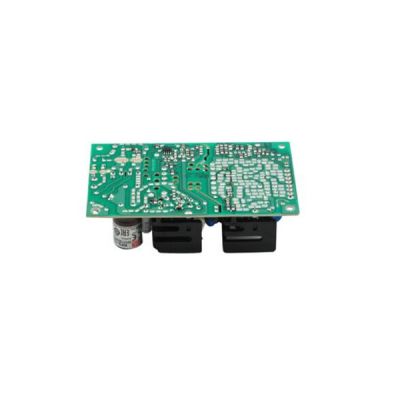

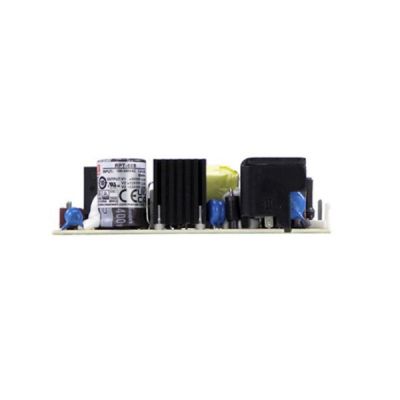

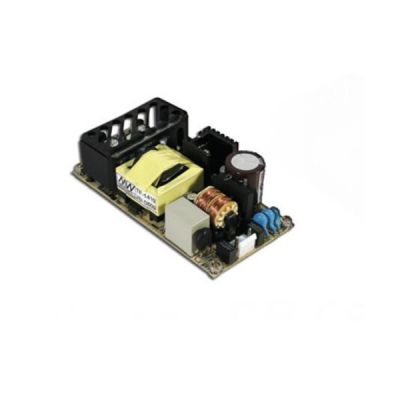

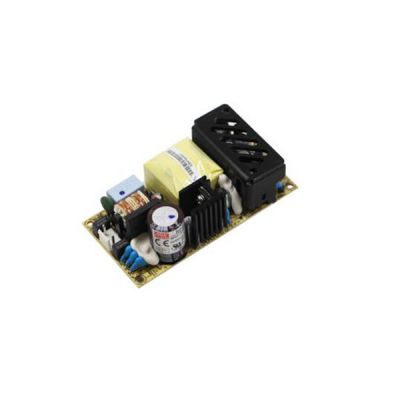

Meanwell RPT-60A is a 60W highly reliable green PCB type medical power supply with CH1CH2CH35V12V-5V4A2A0.5A0.5-4.4A0.1-2.2A0.1-0.55A46.5W51.15W80mVp-p80mVp-p80mVp-p. The product is designed with high power density on the 4" by 2" footprint, and accepts 90~264VAC input with triple output voltages. Moreover, RPT-60A outstands the high working efficiency up to 79%, low no load power consumption and low leakage current. Therefore, it is able to be applied for ClassⅠ(with FG) system design. As per cooling by free air convection and EMI class B for classⅠconfiguration, RPT-60A meets the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Additionally, the item offers the various protection functions such as Short circuit, Overload and Over voltage. Due to its long lifespan, high reliability, excellent quality, Meanwell RPT-60A is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPT-60A Encoding
| RPT | Series Name |
| 60 | Rated Wattage |
| A | Output Voltage |
Meanwell RPT-60A Specifications
| Model | RPT-60A | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 |
| DC VOLTAGE | 5V | 12V | -5V | |
| RATED CURRENT | 4A | 2A | 0.5A | |
| CURRENT RANGE | 0.5-4.4A | 0.1-2.2A | 0.1-0.55A | |
| RATED POWER | 46.5W | |||
| PEAK LOAD (10sec.) | 51.15W | |||
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | |
| VOLTAGE TOL ERANCE | +3,-2.0% | ±6.0% | ±9.0% | |
| LINE REGULATION | ±0.5% | ±1.0% | ±1.0% | |
| LOAD REGUL .ATION | ±1.5% | ±2.0% | +5,-7% | |
| SETUP, RISE TIME | 300ms, 15ms/230VAC 300ms, 15ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 70ms/230VAC 15ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 77.00% | |||
| AC CURRENT (Typ.) | 1.1A/115VAC 0.7A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 60A/230VAC 30A/115VAC | |||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | |||
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | CH1: 5.75 ~ 6.75V | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +65℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| OPERATING ALTITUDE | 3000 meters | |||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1,IEC62368-1,IEC60601-1, EAC TP TC 004,UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved | ||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | |||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||
| OTHERS | MTBF | 4415.3K hrs min. Telcordia SR-332 (Bellcore) ; 677.8K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 101.6*50.8*29mm or 4" * 2" *1.14" inch | |||
| PACKING | 0.15Kg; 96pcs/15.4Kg/0.89CUFT | |||
Meanwell RPT-60A Features
l 4"x2"compact size
l Cooling by free air convection
l EMI class B for classⅠconfiguration
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage
l 3 years warranty
l Suitable for BF application with appropriate system consideration
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell RPT-60A Applications
l Oral irrigator
l Sleep apnea devices
l Hemodialysis machine
l Medical computer monitors
Meanwell RPT-60A Mechanical Diagram
