RPT-6003
16.23
Details

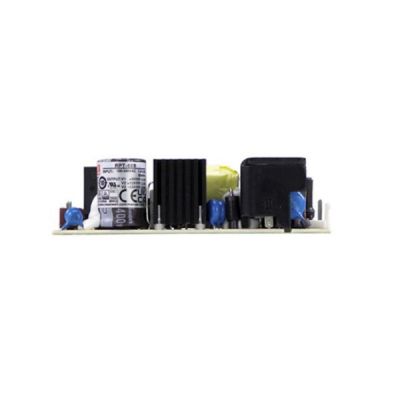

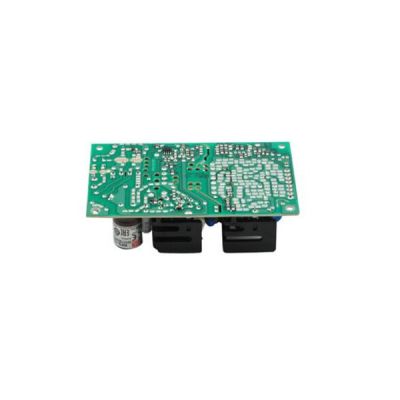

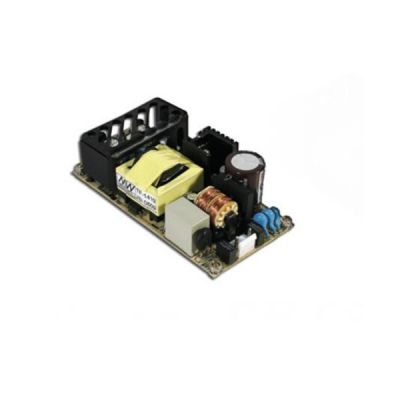

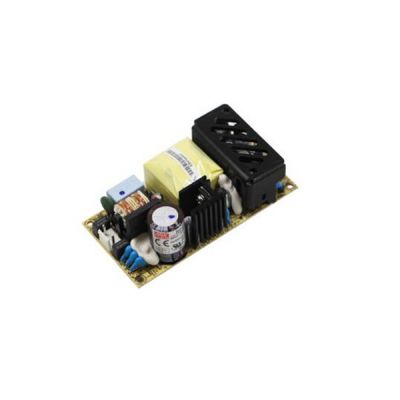

Meanwell RPT-6003 is a 60W highly reliable green PCB type medical power supply with CH1CH2CH33.3V5V12V5A3A0.7A0.5-5.5A0.3-3.3A0.1-0.77A39.9W43.89W80mVp-p80mVp-p80mVp-p. It is designed with high power density on the 4" by 2" footprint, and offers 90~264VAC input with triple output voltages. What’s more, RPT-6003 highlights the working efficiency up to 79%, low no load power consumption and low leakage current. Therefore, it could be used for ClassⅠ(with FG) system design. As per cooling by free air convection and EMI class B for classⅠconfiguration, RPT-6003 complies to the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Additionally, the product supplies the various protection functions such as Short circuit, Overload and Over voltage. As a result of its long lifespan, high reliability, excellent quality, Meanwell RPT-6003 is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPT-6003 Encoding
| RPT | Series Name |
| 60 | Rated Wattage |
| 03 | Output Voltage |
Meanwell RPT-6003 Specifications
| Model | RPT-6003 | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 |
| DC VOLTAGE | 3.3V | 5V | 12V | |
| RATED CURRENT | 5A | 3A | 0.7A | |
| CURRENT RANGE | 0.5-5.5A | 0.3-3.3A | 0.1-0.77A | |
| RATED POWER | 39.9W | |||
| PEAK LOAD (10sec.) | 43.89W | |||
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | |
| VOLTAGE TOL ERANCE | +3,-2.0% | ±8.0% | ±10% | |
| LINE REGULATION | ±0.5% | ±1.0% | ±2.0% | |
| LOAD REGUL .ATION | ±1.5% | ±2.0% | +5.5,-5% | |
| SETUP, RISE TIME | 300ms, 15ms/230VAC 300ms, 15ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 70ms/230VAC 15ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 75.00% | |||
| AC CURRENT (Typ.) | 1.1A/115VAC 0.7A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 60A/230VAC 30A/115VAC | |||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | |||
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | CH1: 3.8 ~ 4.45V | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +65℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| OPERATING ALTITUDE | 3000 meters | |||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1,IEC62368-1,IEC60601-1, EAC TP TC 004,UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved | ||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | |||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||
| OTHERS | MTBF | 4415.3K hrs min. Telcordia SR-332 (Bellcore) ; 677.8K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 101.6*50.8*29mm or 4" * 2" *1.14" inch | |||
| PACKING | 0.15Kg; 96pcs/15.4Kg/0.89CUFT | |||
Meanwell RPT-6003 Features
l 4"x2"compact size
l 3 years warranty
l Cooling by free air convection
l EMI class B for classⅠconfiguration
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
Meanwell RPT-6003 Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
Meanwell RPT-6003 Mechanical Diagram
