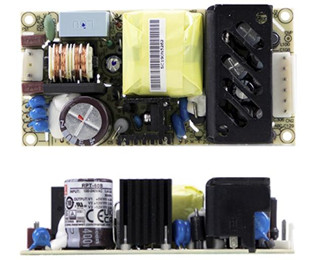

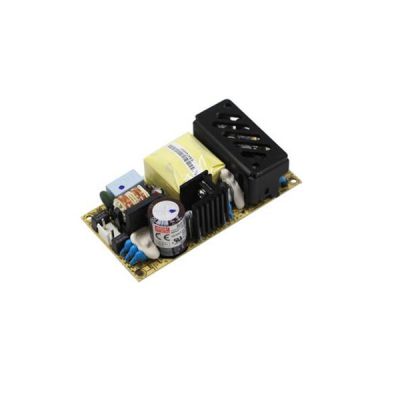

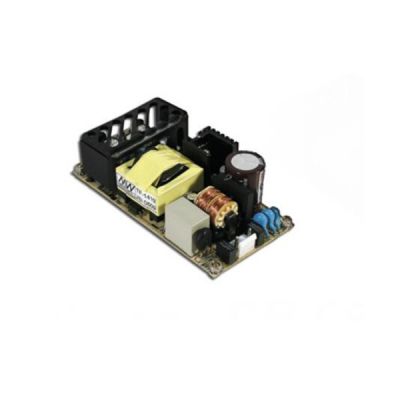

Meanwell RPT-60 Series is a 60W highly reliable green PCB type medical power supply. The entire series is designed with high power density on the 4" by 2" footprint. At the same time, it accepts 90~264VAC input and offers triple output voltages. What’s more, RPT-60 features the high working efficiency up to 79%, extremely low no load power consumption and extremely low leakage current. So that, it is able to be used for ClassⅠ(with FG) system design. As per cooling by free air convection and EMI class B for classⅠconfiguration, RPT-60 conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, the series provides the various protection functions such as Short circuit, Overload and Over voltage. Considering its long lifespan, high reliability, excellent quality, Meanwell RPT-60 Series is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPT-60 Series Encoding
| RPT | Series Name |
| 60 | Rated Wattage |
| A | Output Voltage |
Meanwell RPT-60 Series Model Specifications
| Model | RPT-60A | RPT-60B | RPT-60C | RPT-60D | RPT-6003 | |||||||||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC VOLTAGE | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 24V | 12V | 3.3V | 5V | 12V | |
| RATED CURRENT | 4A | 2A | 0.5A | 4A | 2A | 0.5A | 4A | 1.5A | 0.5A | 3.5A | 1A | 0.5A | 5A | 3A | 0.7A | |
| CURRENT RANGE |
0.5- 4.4A |
0.1- 2.2A |
0.1 -0.55A |
0.5 -4.4A |
0.1 -2.2A |
0.1 -0.55A |
0.5 -4.4A |
0.1 -1.65A |
0.1 -0.55A |
0.5 -3.85A |
0.1 -1.1A |
0.1 -0.55A |
0.5 -5.5A |
0.3 -3.3A |
0.1 -0.77A |
|
| RATED POWER | 46.5W | 50W | 50W | 47.5W | 39.9W | |||||||||||
| PEAK LOAD (10sec.) | 51.15W | 55W | 55W | 52.25W | 43.89W | |||||||||||
| RIPPLE & NOISE (max.) |
80 mVp-p |
80 mVp-p |
80 mVp-p |
80 mVp-p |
80 mVp-p |
100 mVp-p |
80 mVp-p |
100 mVp-p |
150 mVp-p |
80 mVp-p |
150 mVp-p |
80 mVp-p |
80 mVp-p |
80 mVp-p |
80 mVp-p |
|
| VOLTAGE TOL ERANCE |
+3, -2.0% |
±6.0% | ±9.0% |
+3, -2.0% |
±6.0% | ±10% |
+3, -2.0% |
±6.0% | ±8.0% |
+3, -2.0% |
±6.0% | ±8.0% |
+3, -2.0% |
±8.0% | ±10% | |
| LINE REGULATION | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±2.0% | ±0.5% | ±2.0% | ±2.0% | ±0.5% | ±2.0% | ±2.0% | ±0.5% | ±1.0% | ±2.0% | |
| LOAD REGUL .ATION | ±1.5% | ±2.0% |
+5, -7% |
±1.5% | ±2.0% | ±5.0% | ±1.5% | ±3.0% | ±4.0% | ±1.5% | ±3.0% | ±4.0% | ±1.5% | ±2.0% |
+5.5, -5% |
|
| SETUP, RISE TIME | 300ms, 15ms/230VAC 300ms, 15ms/115VAC at full load | |||||||||||||||
| HOLD UP TIME (Typ.) | 70ms/230VAC 15ms/115VAC at full load | |||||||||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||||||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||||||||
| EFFICIENCY (Typ.) | 77.00% | 78.00% | 79% | 79% | 75% | |||||||||||
| AC CURRENT (Typ.) | 1.1A/115VAC 0.7A/230VAC | |||||||||||||||
| INRUSH CURRENT(Typ.) | COLD START 60A/230VAC 30A/115VAC | |||||||||||||||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | |||||||||||||||
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power | ||||||||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||||||||
| OVER VOLTAGE | CH1: 5.75 ~ 6.75V | CH1: 3.8 ~ 4.45V | ||||||||||||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +65℃ (Refer to "Derating Curve") | ||||||||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |||||||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||||||||
| OPERATING ALTITUDE | 3000 meters | |||||||||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1,IEC62368-1,IEC60601-1, EAC TP TC 004,UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved | ||||||||||||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | |||||||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||||||||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | ||||||||||||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | ||||||||||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||||||||||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | ||||||||||||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||||||||||||||
| Parameter | Standard | Test Level | ||||||||||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||||||||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
||||||||||||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | ||||||||||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG ; 2KV/Line-Line | ||||||||||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||||||||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||||||||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||||||||||||||
| OTHERS | MTBF | 4415.3K hrs min. Telcordia SR-332 (Bellcore) ; 677.8K hrs min. MIL-HDBK-217F (25℃) | ||||||||||||||
| DIMENSION | 101.6*50.8*29mm or 4" * 2" *1.14" inch | |||||||||||||||
| PACKING | 0.15Kg; 96pcs/15.4Kg/0.89CUFT | |||||||||||||||
Meanwell RPT-60 Series Features
l 4"x2"compact size
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
l Cooling by free air convection
l EMI class B for classⅠconfiguration
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage
l 3 years warranty
Meanwell RPT-60 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices

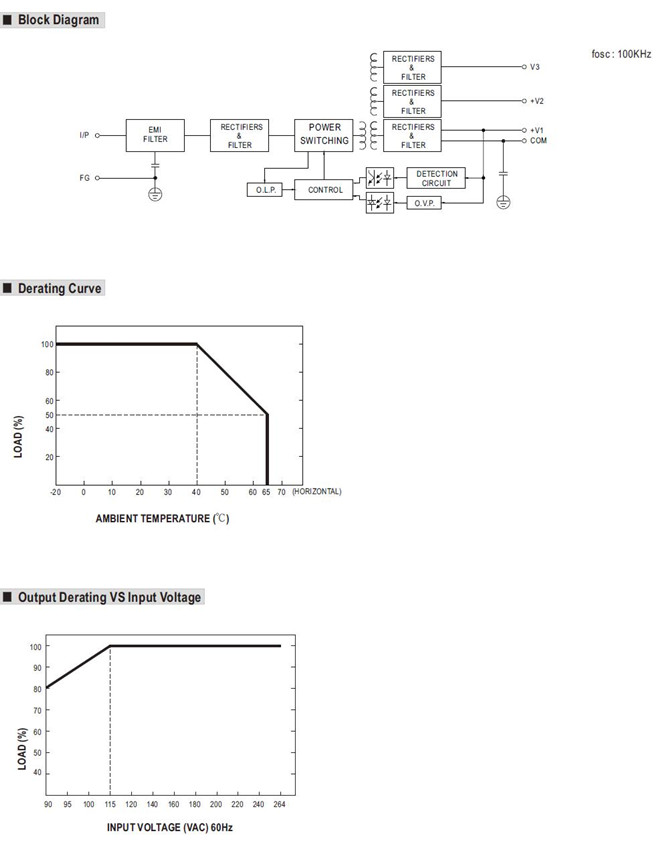

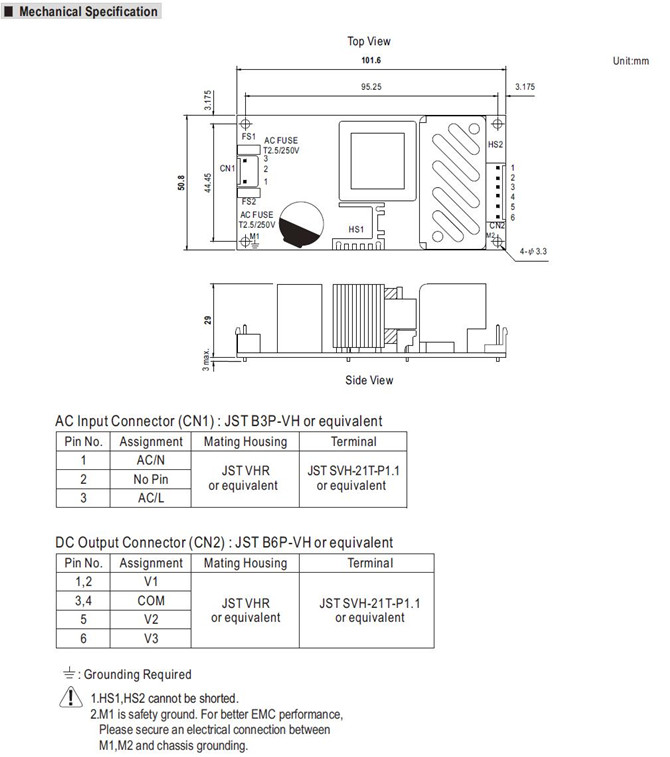

Meanwell RPT-60 Series Mechanical Diagram
