Meanwell RPT (G)-160 Series is a 145W highly reliable green PCB type medical power supply. The entire series is designed with high power density on the 5" by 3" footprint. At the same time, it accepts 90~264VAC input and offers triple output voltages. In addition, RPT(G)-160 features the high working efficiency up to 84%, extremely low no load power consumption and extremely low leakage current less than 160uA. So that, it is able to be used for ClassⅠ(with FG) system design. As per 100W convection, 145W force air and EMI Class B for ClassⅠconfiguration. RPT(G)-160 conforms to the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, the series provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. RPT(G)-160 series also offers the enclosed style model [RPT(G)-160-C]. Considering its long lifespan, high reliability, excellent quality, Meanwell RPT(G)-160 Series is perfectly fitting all kinds of BF rated patient contact" medical system equipment
Meanwell RPT (G)-160 Series Encoding
| RPT | Series Name |
| G | Green model, with 5V sb and no load <0.75W |
| 160 | Rated Wattage |
| A | Output Voltage |
| C | Type |
| Blank | PCB Type |
| C | Enclosed Casing Type |
Meanwell RPT (G)-160 Series Model Specifications
| Model | RPT(G)-160A | RPT(G)-160B | RPT(G)-160C | RPT(G)-160D | ||||||||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |
| DC VOLTAGE | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 12V | 24V | ||
| CURRENT RANGE | RATED (20.5CFM) | 14A | 5.5A | 1A | 14A | 5A | 1A | 14A | 3.6A | 1A | 11A | 5A | 1.2A | |
| RANGE(20.5CFM) | 0.6-14A | 0.2-5.5A | 0.1-1A | 0.6-14A | 0.2-5A | 0.1-1A | 0.6-14A | 0.1-3.6A | 0.1-1A | 0.3-11A | 0.2-5A | 0.1-1.2A | ||
| RANGE (convection) | 0.6-9A | 0.2-3.8A | 0.1-0.6A | 0.6-9A | 0.2-3.4A | 0.1-0.8A | 0.6-9A | 0.1-2.6A | 0.1-0.8A | 0.3-8A | 0.1-2.6A | 0.1-0.8A | ||
| RATED POWER | 20.5CFM | 145W | 146W | 143W | 147W | |||||||||
| Convection | 98.6W | 98.4W | 99W | 98.2W | ||||||||||
| RIPPLE & NOISE (max.) mVp-p | 60 | 80 | 120 | 60 | 100 | 100 | 60 | 80 | 120 | 80 | 100 | 120 | ||
| VOLTAGE ADJ. RANGE | CH1:5 ~ 5.5V | |||||||||||||
| VOLTAGE TOL ERANCE | ±2.0% | ±5.0% | -5+7% | ±2.0% | ±5.0% | -4+5% | ±2.0% | ±4.0% | ±8.0% | ±2.0% | ±5.0% | +7-5% | ||
| LINE REGULATION | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ||
| LOAD REGUL .ATION % | ±1.5% | ±3.0%% | -5+6% | ±1.5% | ±3.0% | -4+5% | ±2.0% | ±4.0% | ±8.0% | ±1.5% | ±3.0% | -3+4% | ||
| SETUP, RISE TIME | 1800ms, 30ms/230VAC 3500ms, 30ms/115VAC at full load | |||||||||||||
| HOLD UP TIME (Typ.) | 30ms/230VAC 20ms/115VAC at full load | |||||||||||||
| Model Type C | RPT(G)-160A-C | RPT(G)-160B-C | RPT(G)-160C-C | RPT(G)-160D-C | ||||||||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |
| DC VOLTAGE | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 12V | 24V | ||
| CURRENT RANGE | RATED (20.5CFM) | 13.3A | 5.2A | 0.95A | 13.3A | 4.8A | 0.95A | 13.3A | 3.4A | 0.95A | 10.5A | 4.8A | 1.14A | |
| RANGE(20.5CFM) | 0.6-13.3A | 0.2-5.2A | 0.1-0.95A | 0.6-13.3A | 0.2-4.8A | 0.1-0.95A | 0.6-13.3A | 0.1-3.4A | 0.1-0.9A | 0.3-10.5A | 0.2-4.8A | 0.15-1.14A | ||
| RANGE (convection) | 0.6-8.5A | 0.2-3.6A | 0.1-0.57A | 0.6-8.5A | 0.2-3.6A | 0.1-0.57A | 0.6-8.5A | 0.2-3.2A | 0.1-0.76A | 0.3-7.6A | 0.2-2.5A | 0.15-0.95A | ||
| RATED POWER | 20.5CFM | 137.7W | 139.5W | 135.8W | 141.5W | |||||||||
| Convection | 91.6W | 93W | 94.4W | 93.8W | ||||||||||
| RIPPLE & NOISE (max.) mVp-p | 60 | 80 | 120 | 60 | 100 | 100 | 60 | 80 | 100 | 80 | 100 | 120 | ||
| VOLTAGE ADJ. RANGE | CH1:5 ~ 5.5V | |||||||||||||
| VOLTAGE TOL ERANCE % | ±2.0% | ±5.0% | -5+7% | ±2.0% | ±5.0% | -4+5% | ±2.0% | ±4.0% | ±8.0% | ±2.0% | ±5.0% | +7-5% | ||
| LINE REGULATION % | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ||
| LOAD REGUL .ATION % | ±1.5% | ±3.0%% | -5+6% | ±1.5% | ±3.0% | -4+5% | ±2.0% | ±4.0% | ±8.0% | ±1.5% | ±3.0% | -3+4% | ||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||||||
| EFFICIENCY (Typ.) | 84% | 84% | 83% | 83% | ||||||||||
| AC CURRENT (Typ.) | 1.8A/115VAC 0.9A/230VAC | |||||||||||||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | |||||||||||||
| LEAKAGE CURRENT | Earth leakage current < 160 A/264VAC , Touch current < 100 A/264VAC | |||||||||||||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | ||||||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||||||
| OVER VOLTAGE | Ch1: 5.7 ~ 6.8V | |||||||||||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||||||
| OVER TEMPERATURE | TSW1: Shut down o/p voltage, recovers automatically after temperature goes down | |||||||||||||
| TSW2: Shut down o/p voltage, re-power on to recover | ||||||||||||||
| FUNCTION | 5V STANDBY (G model) | 5Vsb : 5V@0.6A without fan, 0.8A with fan 20.5CFM ; Tolerance ± 2%, ripple : 50mVp-p(max.) | ||||||||||||
| POWER GOOD / POWER FAIL | 500ms>PG>10ms PF>1ms | |||||||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||||||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |||||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||||||
| OPERATING ALTITUDE | 3000 meters | |||||||||||||
| SAFETY & EMC | SAFETY STANDARDS | Design refer to IEC60601-1, EAC TP TC 004,TUV BS EN/EN60601-1(Pending for CB/TUV) | ||||||||||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | |||||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||||||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | ||||||||||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | ||||||||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||||||||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | ||||||||||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||||||||||||
| Parameter | Standard | Test Level | ||||||||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||||||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
||||||||||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | ||||||||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG ; 2KV/Line-Line | ||||||||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||||||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||||||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||||||||||||
| OTHERS | MTBF | 1719.1K hrs min. Telcordia SR-332 (Bellcore) ; 175.1K hrs min. MIL-HDBK-217F (25℃) | ||||||||||||
| DIMENSION | PCB type: 127* 76.2 * 34.6mm or 5"* 3"* 1.36" inch Enclosed type: 130 86 43mm or 5.11" 3.39" 1.69" inch | |||||||||||||
| PACKING | 0.33Kg; 36pcs/12.9Kg/0.96CUFT 0.49Kg; 24pcs/12.8Kg/0.77CUFT | |||||||||||||

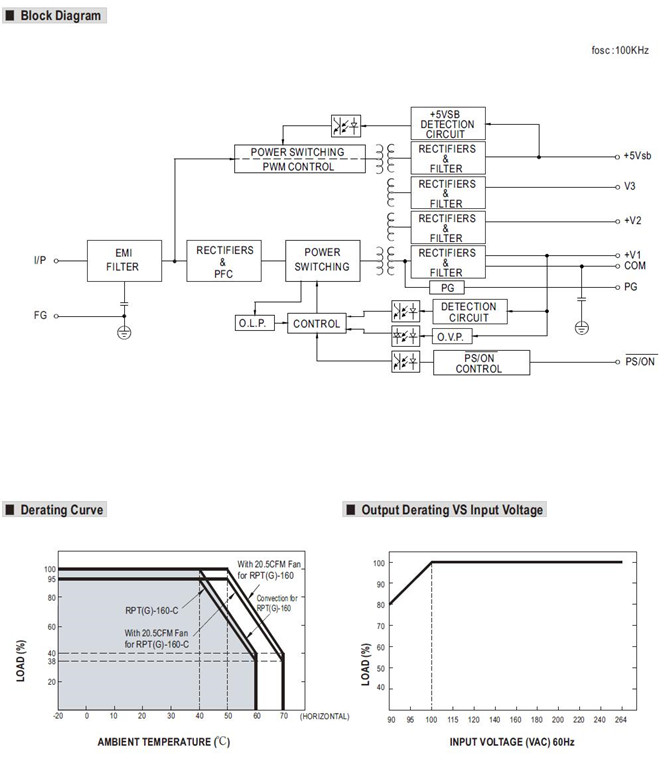

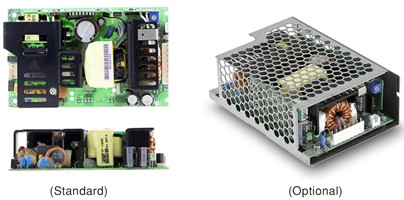

Meanwell RPT (G)-160 Series Features
l 5"x3"compact size
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN 60601-1
l Suitable for BF application with appropriate system consideration
l 100W convection, 145W force air
l EMI Class B for ClassⅠconfiguration
l No load power consumption<0.75W by PS-ON control (G model)
l Extremely low leakage current
l 5Vdc standby output, Power Good, Power Fail
l Protections: Short circuit /Overload/Over voltage/Over temperature
l Lifetime >85K hours
l 3 years warranty
Meanwell RPT (G)-160 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical monitors
l Sleep apnea devices
l Pumps machine

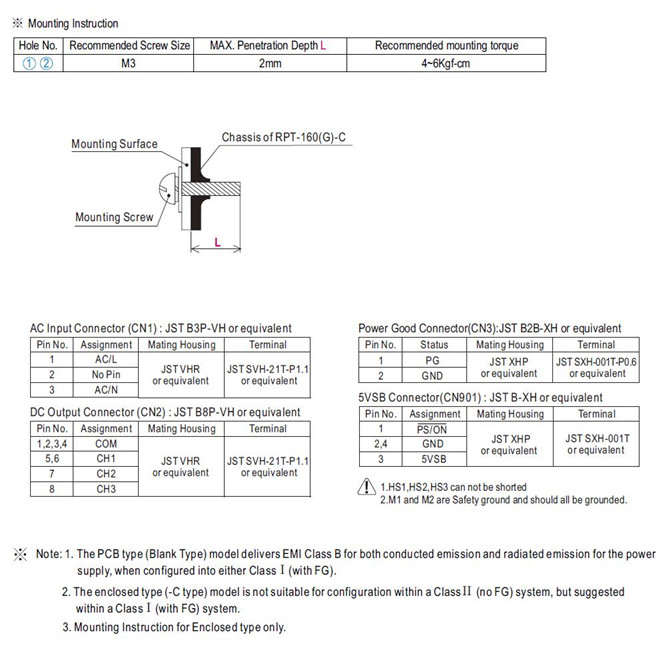

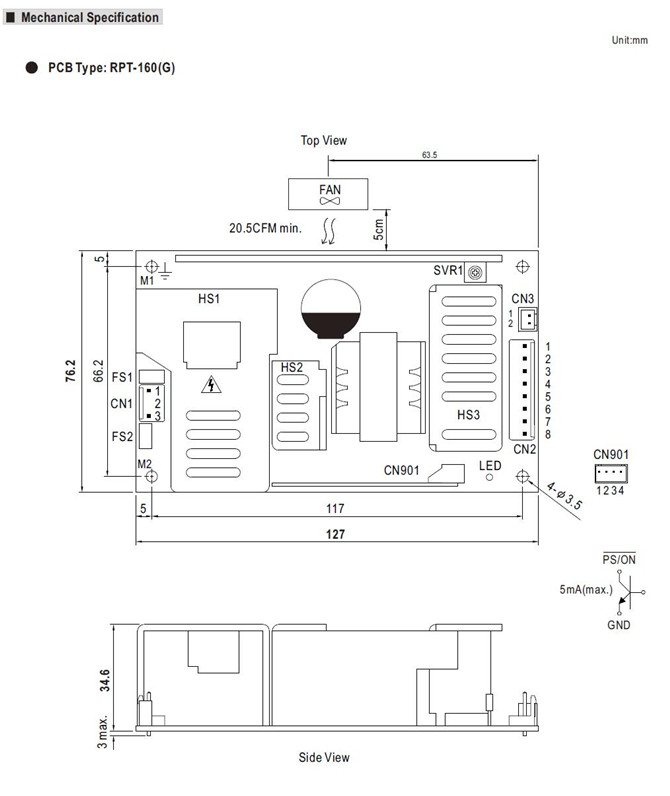

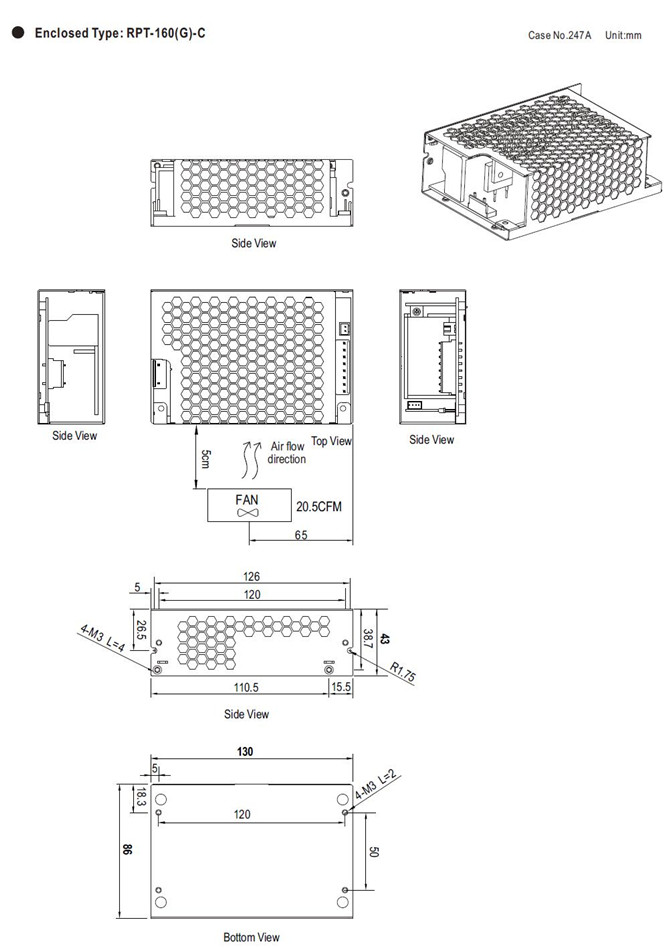

Meanwell RPT (G)-160 Series Mechanical Diagram
