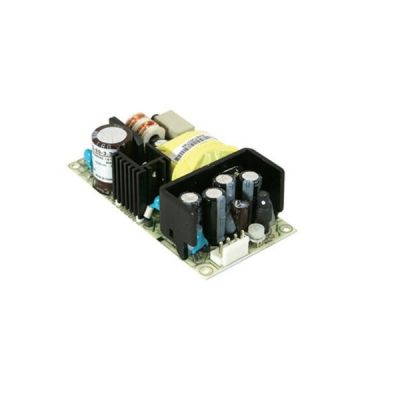

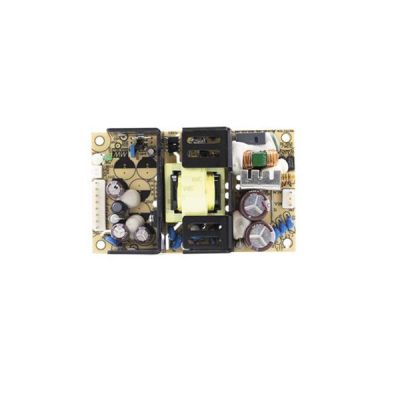

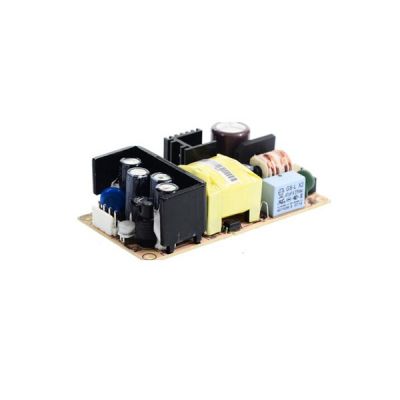

Meanwell RPS-75 Series is a 75W highly reliable green PCB type medical power supply. The entire series is designed with high power density on 5*3 footprint. At the same time, it also accepts 90~264VAC input and offers various output voltages between 3.3V and 48V. In addition, RPS-75 series features high working efficiency up to 86%, extremely low no load power consumption down below 0.75W and operating altitude up to 3000 meters. Therefore, it is able to be applied fоr СlаѕѕⅠ (nо FG) ѕуѕtеm. Since thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 150 uA, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, the series provides various protection functions such as Short circuit, Overload and Over voltage. Considering its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-75 Series is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-75 Series Encoding
| RPS | Series Name |
| 75 | Rated Wattage |
| 3.3 | Output Voltage |
Meanwell RPS-75 Series Model Specifications
| Model | RPS-75-3.3 | RPS-75-5 | RPS-75-12 | RPS-75-15 | RPS-75-24 | RPS-75-36 | RPS-75-48 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 15A | 14A | 6.3A | 5A | 3.2A | 2.1A | 1.6A | |
| CURRENT RANGE | 0-20A | 0-18.7A | 0-8.3A | 0-6.7A | 0-4.2A | 0-2.8A | 0-2.1A | |
| RATED POWER | 49.5W | 70W | 75.6W | 75W | 76.8W | 75.6W | 76.8W | |
| PEAK LOAD(10sec.) | 66W | 93.5W | 99.6W | 100.5W | 100.8W | 100.8W | 100.8W | |
| RIPPLE & NOISE (max.) | 60mVp-p | 60mVp-p | 60mVp-p | 60mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1.5% | ±1.5% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |||||||
| HOLD UP TIME (Typ.) | 90ms/230VAC 20ms/115VAC at full load | |||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| EFFICIENCY (Typ.) | 73.00% | 78.00% | 82.00% | 83.00% | 85.00% | 86.00% | 86.00% | |
| AC CURRENT (Typ.) | 1.5A/115VAC 1A/230VAC | |||||||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 50A/230VAC | |||||||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | |||||||
| PROTECTION | OVERL OAD | 140 ~ 180% rated output power | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
| OVER VOLTAGE | 3.8-4.5V | 5.7-6.8V | 13.8-16.2V | 17.2-20.3V | 27.6-32.4V | 41.4-48.6V | 55.2-64.8V | |
| Protection type : Shut down o/p voltage, re-power to recover | ||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||
| OPERATING ALTITUDE | 3000 meters | |||||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004,UL ANSI / AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 | ||||||
| ISOLATION LEVEL | Primary-Secondary:2xMOPP, Primary-Earth:1xMOPP | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | ||||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | ||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | ||||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||||||
| Parameter | Standard | Test Level | ||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
||||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | ||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG; 2KV/Line-Line | ||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||||||
| OTHERS | MTBF | 2837.6K hrs min. Telcordia SR-332 (Bellcore) ; 446.8K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 127*76.2*31mm or 5" * 3" *1.22" inch | |||||||
| PACKING | 0.26Kg; 63pcs/16.3Kg/1.28CUFT | |||||||
Meanwell RPS-75 Series Features
l 5"x3"compact size
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
l 75W convection, 100W force air
l EMI Class B for Class Ⅰ configuration
l No load power consumption<0.75W
l Remote sense function
l Protections: Short circuit/Overload/Over voltage
l Lifetime > 80K hours
l Operating altitude up to 3000 meters
l 3 years warranty
Meanwell RPS-75 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices

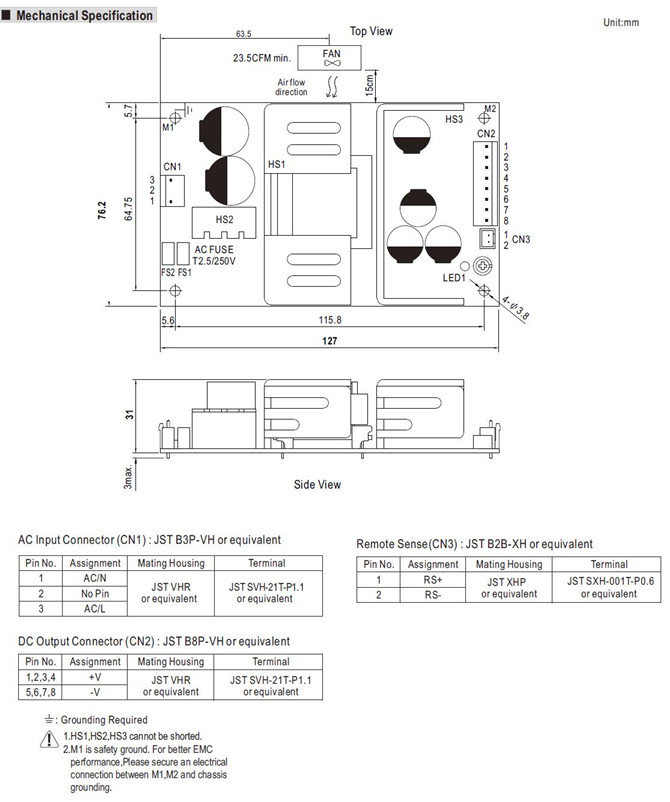

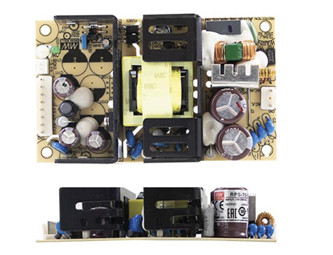

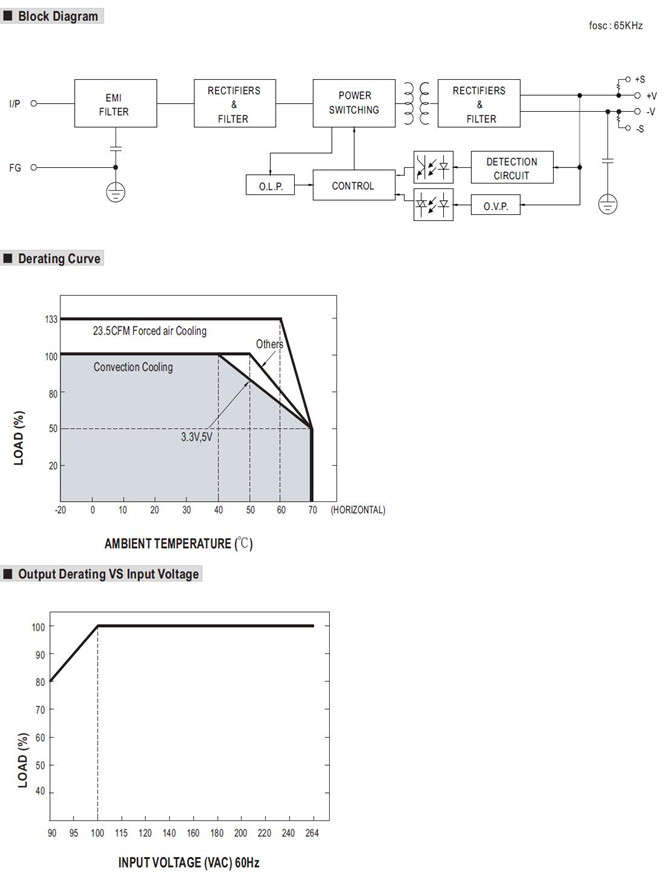

Meanwell RPS-75 Series Mechanical Diagram
