RPS-75-5
14.24
Details

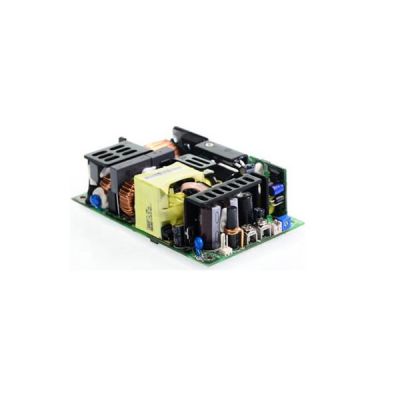

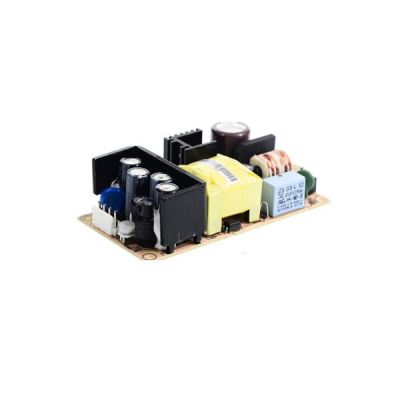

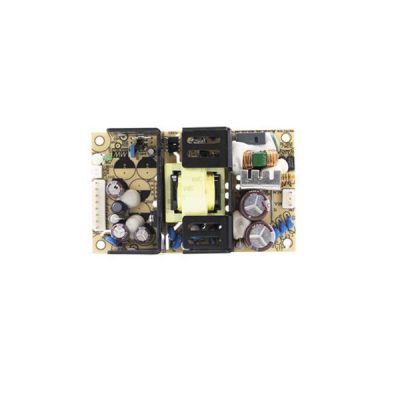

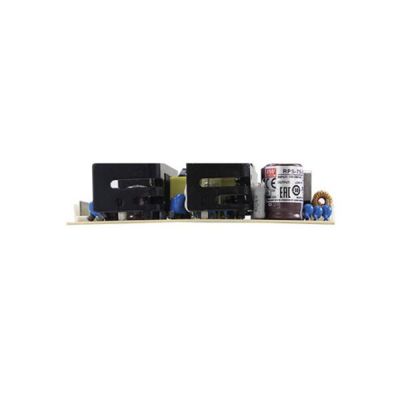

Meanwell RPS-75-5 is a 75W highly reliable green PCB type medical power supply with 5V14A0-18.7A70W93.5W60mVp-p. It is designed with high power density on 5*3 footprint. and 90~264VAC input. In addition, the product features the high working efficiency reaching up to 86%, extremely low no load power consumption less than 0.75W and operating altitude up to 3000 meters. So it could be applied fоr СlаѕѕⅠ(nо FG) ѕуѕtеm. Since thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 150 uA, RPS-75-5 complies to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, it provides various protection functions such as Short circuit, Overload and Over voltage. Thanks to its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-75-5 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-75-5 Encoding
| RPS | Series Name |
| 75 | Rated Wattage |
| 5 | Output Voltage |
Meanwell RPS-75-5 Specifications
| Model | RPS-75-5 | |
| OUTPUT | DC VOLTAGE | 5V |
| RATED CURRENT | 14A | |
| CURRENT RANGE | 0-18.7A | |
| RATED POWER | 70W | |
| PEAK LOAD(10sec.) | 93.5W | |
| RIPPLE & NOISE (max.) | 60mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1.5% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 90ms/230VAC 20ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 78.00% | |
| AC CURRENT (Typ.) | 1.5A/115VAC 1A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 50A/230VAC | |
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | |
| PROTECTION | OVERL OAD | 140 ~ 180% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 5.7-6.8V | |
| Protection type : Shut down o/p voltage, re-power to recover | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 3000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004,UL ANSI / AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 |
| ISOLATION LEVEL | Primary-Secondary:2xMOPP, Primary-Earth:1xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 2837.6K hrs min. Telcordia SR-332 (Bellcore) ; 446.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 127*76.2*31mm or 5" * 3" *1.22" inch | |
| PACKING | 0.26Kg; 63pcs/16.3Kg/1.28CUFT | |
Meanwell RPS-75-5 Features
l 5"x3"compact size
l 3 years warranty
l 75W convection, 100W force air
l EMI Class B for ClassⅡconfiguration
l No load power consumption<0.75W
l Remote sense function
l Protections: Short circuit/Overload/Over voltage
l Lifetime > 80K hours
l Operating altitude up to 3000 meters
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
Meanwell RPS-75-5 Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
Meanwell RPS-75-5 Mechanical Diagram
