RPS-65-48
13.25
Details

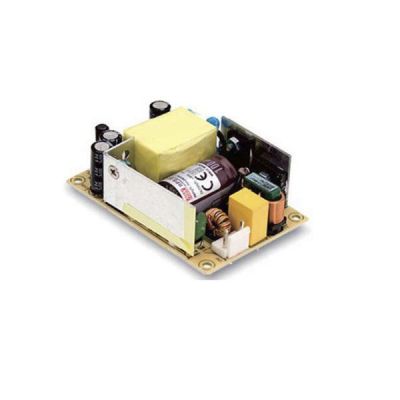

Meanwell RPS-65-48 is a 65W highly reliable green PCB type medical power supply with 48V1.36A0-1.49A65.3W71.5W150mVp-p. The model is designed with high power density on 3*2 footprint and 80~264VAC input. At the same time, it features the high working efficiency up to 91%, extremely low no load power consumption below 0.1W and operating altitude up to 4000 meters. Moreover, RPS-65-48 is capable to be used fоr СlаѕѕⅡ(nо FG) ѕуѕtеm. As thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 100 uA, it complies to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, the product offers various protection functions such as Short circuit, Overload and Over voltage. Thanks to its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-65-48 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-65-48Encoding
| RPS | Series Name |
| 65 | Rated Wattage |
| 48 | Output Voltage |
Meanwell RPS-65-48 Specifications
| Model | RPS-65-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 1.36A | |
| CURRENT RANGE | 0-1.49A | |
| RATED POWER | 65.3W | |
| PEAK LOAD(10sec.) | 71.5W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | |
| SETUP, RISE TIME | 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 30ms / 230VAC 12ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 91.00% | |
| AC CURRENT (Typ.) | 1.5A / 115VAC 1A / 230VAC | |
| INRUSH CURRENT(Typ.) | СOLD STAR 30A/115VAC 50A/230VAC | |
| LEAKAGE CURRENT | Touch current< 100 A/264VAC | |
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 55.2-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 4000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004,UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 959.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 76.2*50.8*24mm or 3" * 2" *0.945" inch | |
| PACKING | 0.11Kg; 120pcs/14.2Kg/0.94CUFT | |
Meanwell RPS-65-48 Features
l 3"x2"compact size
l 3 years warranty
l Extremely low leakage current
l Cooling by free air convection
l No load power consumption<0.1W
l Operating altitude up to 4000 meters
l EMI class B for class Ⅱconfiguration
l Protections: Short circuit/Overload/Over voltage
l Suitable for BF application with appropriate system consideration
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell RPS-65-48 Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
Meanwell RPS-65-48 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
