RPS-65-15
12.82
Details

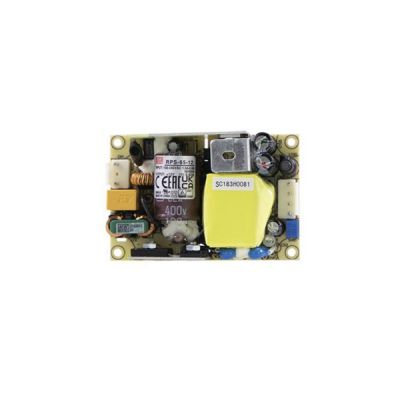

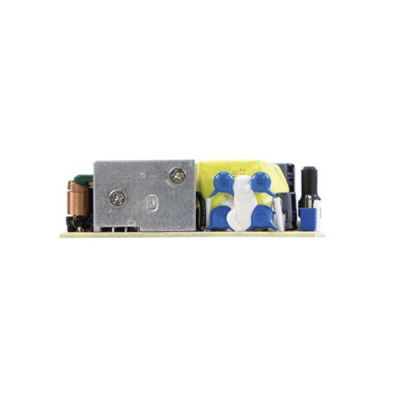

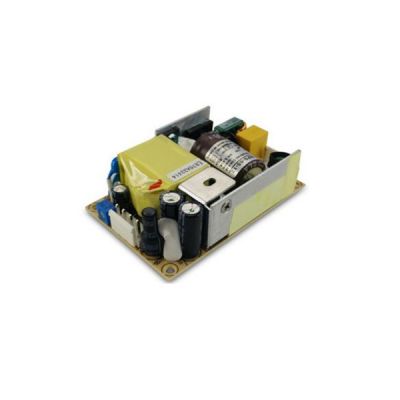

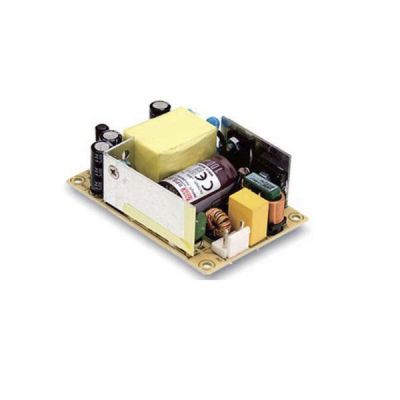

Meanwell RPS-65-15 is a 65W highly reliable green PCB type medical power supply with 15V4.34A0-4.77A65.1W71.6W120mVp-p. It is designed with high power density on 3*2 footprint and 80~264VAC input. Moreover, the product outstands high working efficiency up to 91%, extremely low no load power consumption down below 0.1W and operating altitude up to 4000 meters. Therefore, it is able to be applied fоr СlаѕѕⅡ(nо FG) ѕуѕtеm. Since thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 100 uA, the item complies to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Besides them, RPS-65-15 has various protection functions such as Short circuit, Overload and Over voltage. On account of its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-65-15 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-65-15 Encoding
| RPS | Series Name |
| 65 | Rated Wattage |
| 15 | Output Voltage |
Meanwell RPS-65-15 Specifications
| Model | RPS-65-15 | |
| OUTPUT | DC VOLTAGE | 15V |
| RATED CURRENT | 4.34A | |
| CURRENT RANGE | 0-4.77A | |
| RATED POWER | 65.1W | |
| PEAK LOAD(10sec.) | 71.6W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | |
| SETUP, RISE TIME | 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 30ms / 230VAC 12ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT (Typ.) | 1.5A / 115VAC 1A / 230VAC | |
| INRUSH CURRENT(Typ.) | СOLD STAR 30A/115VAC 50A/230VAC | |
| LEAKAGE CURRENT | Touch current< 100 A/264VAC | |
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 17.2-20.3V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 4000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004,UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 959.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 76.2*50.8*24mm or 3" * 2" *0.945" inch | |
| PACKING | 0.11Kg; 120pcs/14.2Kg/0.94CUFT | |
Meanwell RPS-65-15 Features
l 3"x2"compact size
l 3 years warranty
l Extremely low leakage current
l Cooling by free air convection
l EMI class B for class Ⅱconfiguration
l No load power consumption<0.1W
l Operating altitude up to 4000 meters
l Protections: Short circuit/Overload/Over voltage
l Suitable for BF application with appropriate system consideration
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell RPS-65-15 Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
Meanwell RPS-65-15 Mechanical Diagram
