RPS-60-12
14.42
Details

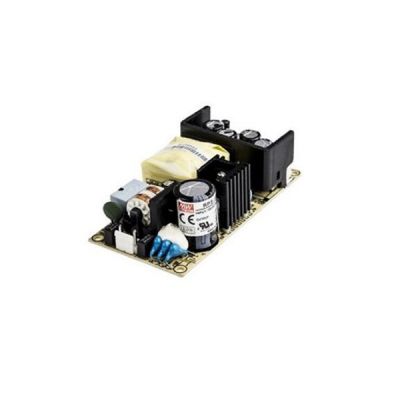

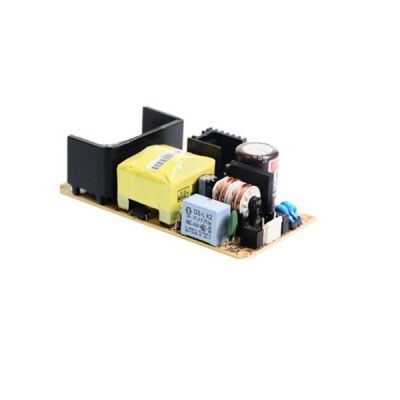

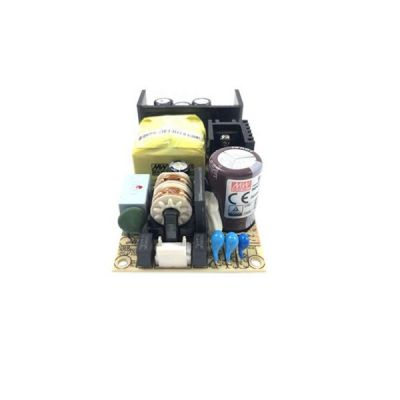

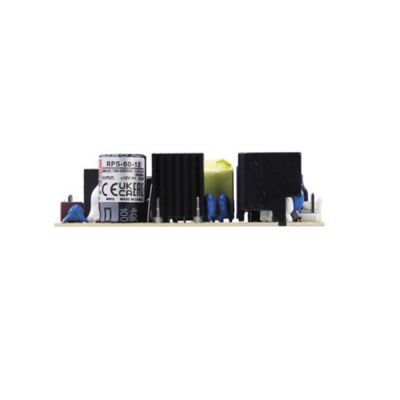

Meanwell RPS-60-12 is a 60W highly reliable green PCB type medical power supply with 12V5A0-5.5A60W66W60mVp-p11.4-13.2V. The item is designed with high power density on 4*2 footprint, and accepts 80~264VAC input. Additionally, it stands out with the high working efficiency up to 86%, extremely low no load power consumption less than 0.75W and operating altitude up to 3000 meters. Based on them, it could be used fоr СlаѕѕⅡ(nо FG) ѕуѕtеm. Since thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ down below 130 uA, it complies with international medical regulations (2*MOPP) and EMC BS EN/EN55011. Furthermore, the product offers various protection functions such as Short circuit, Overload and Over voltage. In light of its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-60-12 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-60-12 Encoding
| RPS | Series Name |
| 60 | Rated Wattage |
| 12 | Output Voltage |
Meanwell RPS-60-12 Specifications
| Model | RPS-45-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 5A | |
| CURRENT RANGE | 0-5.5A | |
| RATED POWER | 60W | |
| PEAK LOAD(10sec.) | 66W | |
| RIPPLE & NOISE (max.) | 60mVp-p | |
| VOLTAGE ADJ RANGE | 11.4-13.2V | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 60ms/230VAC 12ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT (Typ.) | 1.8A/115VAC 1 A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 60A/230VAC 30A/115VAC | |
| LEAKAGE CURRENT | Earth leakage current < 130 A/264VAC , Touch current < 100 A/264VAC | |
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 13.8-16.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 3000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, IEC60601-1, TUV BS EN/EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1 |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 5153.0hrs min. Telcordia SR-332 (Bellcore) ; 353.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 101.6*50.8*29mm or 4" * 2" *1.141" inch | |
| PACKING | 0.15Kg; 96pcs/15.4Kg/0.89CUFT | |
Meanwell RPS-60-12 Features
l 4"x2" compact size
l 3 years warranty
l Cooling by free air convection
l EMI class B for classⅡconfiguration
l No load power consumption<0.75W
l Operating altitude up to 3000 meters
l Protections: Short circuit/Overload/Over voltage
l Suitable for BF application with appropriate system consideration
l IT & Medical safety approved (2 X MOPP) according to ANSI/AAMIES60601-1,IEC/BS EN/EN60601-1 and IEC/BS EN/EN/UL 62368-1
Meanwell RPS-60-12 Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
Meanwell RPS-60-12 Mechanical Diagram
