Meanwell RPS-500 Series is a 500W highly reliable green PCB type medical power supply. The entire series is designed with high power density on 5" by 3" footprint. At the same time, it also accepts 80~264VAC input and offers various output voltages between 12V and 48V. Moreover, RPS-500 series features the high working efficiency up to 94%, extremely low no load power consumption down below 0.5W and operating altitude up to 4000 meters. Therefore, RPS-500 (blank type only) is able to be used for both ClassⅠ(with FG) or Class Ⅱ (no FG) system design. As per extremely low leakage current less than 320uA and 320W convection, 500W force air. it conforms to international medical regulations(2*MOPP) and EMC BS EN/EN55011. Apart from them, RPS-500 provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Additionally, RP S-500 series offers the enclosed style models (-C/TF /SF). Considering its long lifespan, high reliability, excellent quality, Meanwell RPS-500 Series is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.

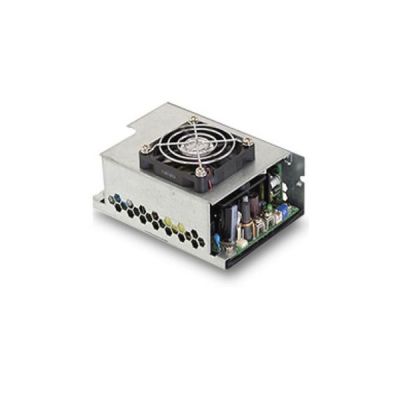

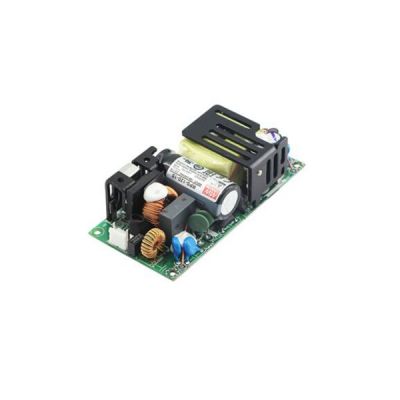

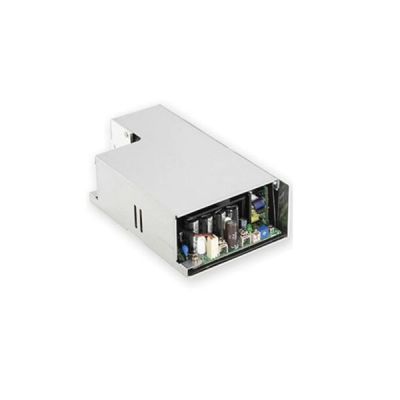

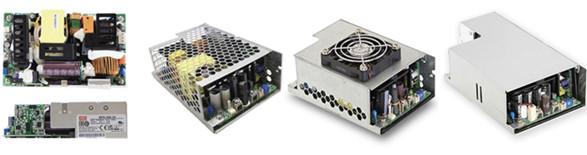

Meanwell RPS-500 Series Encoding
| RPS | Series Name |
| 500 | Rated Wattage |
| 12 | Output Voltage |
| C | Type |
| Blank | PCB Type |
| -C | Enclosed Casing Type |
| -TF | Enclosed Type with fan on the top |
| -SF | Enclosed Type with fan on the side |
Meanwell RPS-500 Series Model Specifications
| Model | RPS-500-12 | RPS-500-15 | RPS-500-18 | RPS-500-24 | RPS-500-27 | RPS-500-36 | RPS-500-48 | |||
| OUTPUT | DC VOLTAGE | 12V | 15V | 18V | 24V | 27V | 36V | 48V | ||
| RATED CURRENT | Blank | 25CFM | 41.6A | 33.3A | 27.8A | 20.8A | 18.5A | 13.9A | 10.4A | |
| Convection | 26.7A | 21.3A | 17.8A | 13.4A | 11.9A | 8.9A | 6.7A | |||
| -C | 25CFM | 41.6A | 33.3A | 27.8A | 20.8A | 18.5A | 13.9A | 10.4A | ||
| Convection | 25.8A | 20.7A | 17.2A | 12.9A | 11.5A | 8.6A | 6.5A | |||
| -TF/SF | Built-in fan | 41.6A | 33.3A | 27.8A | 20.8A | 18.5A | 13.9A | 10.4A | ||
| RATED POWER | Blank | 25CFM | 499.2W | 499.5W | 500.4W | 499.2W | 499.5W | 500.4W | 499.2W | |
| Convection | 320.4W | 319.5W | 320.4W | 321.6W | 321.3W | 320.4W | 321.6W | |||
| -C | 25CFM | 499.2W | 499.5W | 500.4W | 499.2W | 499.5W | 500.4W | 499.2W | ||
| Convection | 309.6W | 310.5W | 309.6W | 309.6W | 310.5W | 309.6W | 312W | |||
| -TF/SF | Built-in fan | 499.2W | 499.5W | 500.4W | 499.2W | 499.5W | 500.4W | 499.2W | ||
| PEAK POWER(3sec.) | 550W | |||||||||
| RIPPLE & NOISE (max.) | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |||
| VOLTAGE ADJ. RANGE (main output) | 11.4-12.6V | 14.3-15.8V | 17.1-18.9V | 22.8-25.2V | 25.6-28.4V | 34.2-37.8V | 45.6-50.4V | |||
| VOLTAGE TOL ERANCE | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||
| LOAD REGUL .ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load | |||||||||
| HOLD UP TIME (Typ.) | 10ms/230VAC 10ms/115VAC at full load | |||||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | |||||||||
| EFFICIENCY (Typ.) | 91.00% | 92.00% | 92.50% | 93.00% | 93.50% | 94.00% | 94.00% | |||
| AC CURRENT (Typ.) | 5.8A/115VAC 2.9A/230VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 40A/115VAC 80A/230VAC | |||||||||
| LEAKAGE CURRENT | Earth leakage current <220 A/264VAC 50Hz , Touch current < 100 A/264VAC | |||||||||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | ||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 13.2-15.6V | 16.5-19.5V | 19.8-23.4V | 26.4-31.2V | 29.7-35.1V | 39.6-46.8V | 52.8-62.4V | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |||||||||
| FUNCTION | 5V STANDBY | 5Vsb : 5V@0.6A without fan, 1A with fan 25CFM Tolerance ±2%, ripple : 120mVp-p(max.) | ||||||||
| 12V FAN SUPPLY | 12V@0.5A for driving a fan; Tolerance -15%~+10% at main output 20% rated current (20.5CFM) | |||||||||
| FAN CONTROL | Fan on by 20% load min. (For RPS-400-xxTF/SF) | |||||||||
| PS-ON INPUT SIGNAL | Power on: PS-ON="Hi"or">2~5V";Power off: PS-ON="Low"or"<0~0.5V" | |||||||||
| POWER GOOD/POWER FAIL | 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ;The TTL signal goes low at least 1ms before Vo below 90% of rated value | |||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP. | -40 ~ +85℃ | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||||||||
| OPERATING ALTITUDE | 4000 meters | |||||||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 (By request) |
||||||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | |||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||||
| Conducted emission | BS EN/EN55011 (CISPR11) | ClassⅠ: Class B , Class Ⅱ: Class A | ||||||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class A | ||||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | ||||||||
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3 | |||||||||
| Parameter | Standard | Test Level | ||||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
||||||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | ||||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG; 2KV/Line-Line | ||||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods 100% interruptions 250 periods |
||||||||
| OTHERS | MTBF | 1132.3K hrs min. Telcordia SR-332 (Bellcore) ; 144.2K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | Type | RPS-500 | RPS-500 -C | RPS-500-TF | RPS-500-SF | |||||
| L*W*H | 127x76.2x41mm | 130x86x43mm | 130x86x66.5mm | 160x86x43mm | ||||||
| 5″x3″x1.61″inch | 5.11″x3.39″x1.69″inch | 5.11″x3.39″x2.62″inch | 6.3″x3.39″x1.69″inch | |||||||
| PACKING | P.W. QTY G.W. M'MENT |
0.46Kg30pcs14.8Kg 0.96CUFT |
0.54Kg24pcs14Kg 0.77CUFT |
0.58Kg24pcs14.9Kg 0.86CUFT |
0.64Kg24pcs16.4Kg 0.91CUFT |
|||||
Meanwell RPS-500 Series Features
l 5"x3" compact size
l 320W convection, 500W force air
l 550W peak power (3sec.)
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l EMI for both ClassⅠ& ClassⅡconfiguration
l -30~+70℃ wide range operating temperature
l No load power consumption<O .5W by PS_ON control
l High efficiency up to 94%
l Protections: Short circuit/Overload/Over voltage/Over temperature
l 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
l Operating altitude up to 4000 meters
l LED indicator for power on
l 3 years warranty
Meanwell RPS-500 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
l Pump machine
l Electric bed

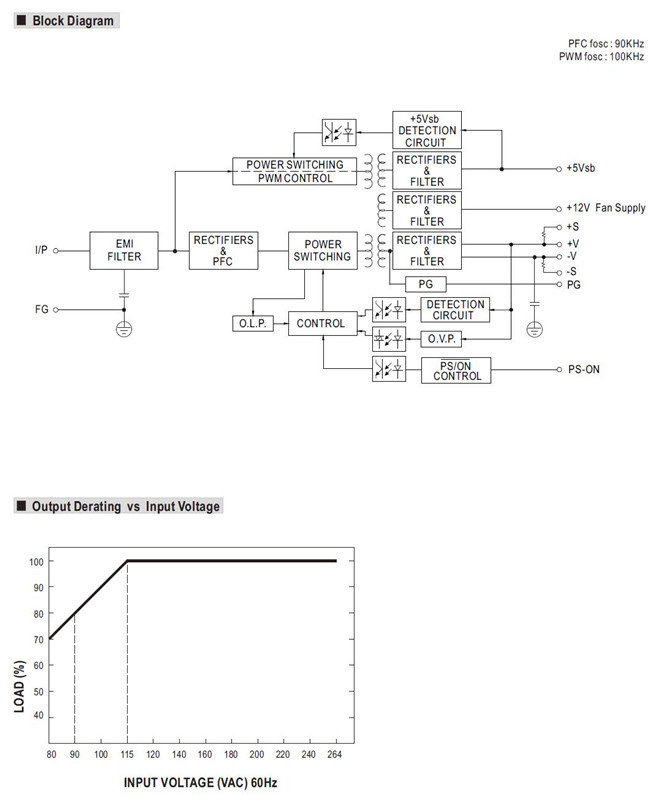

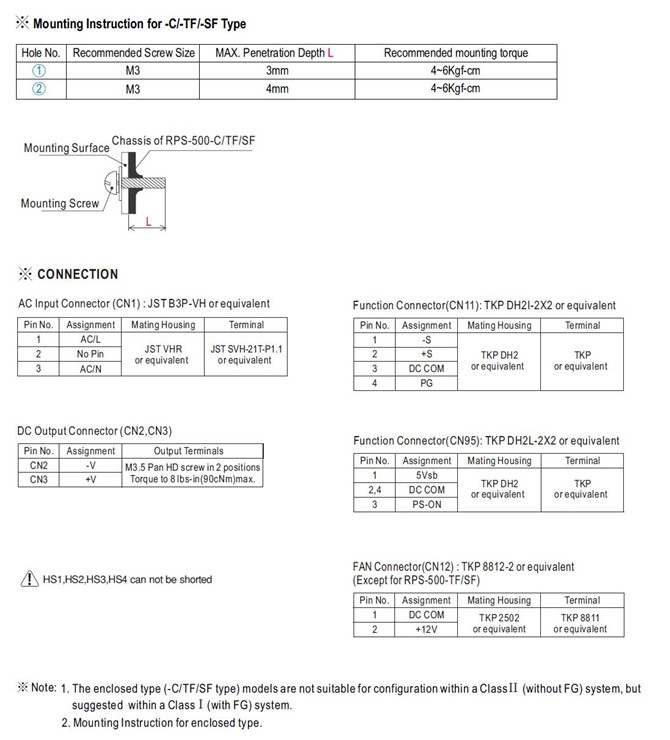

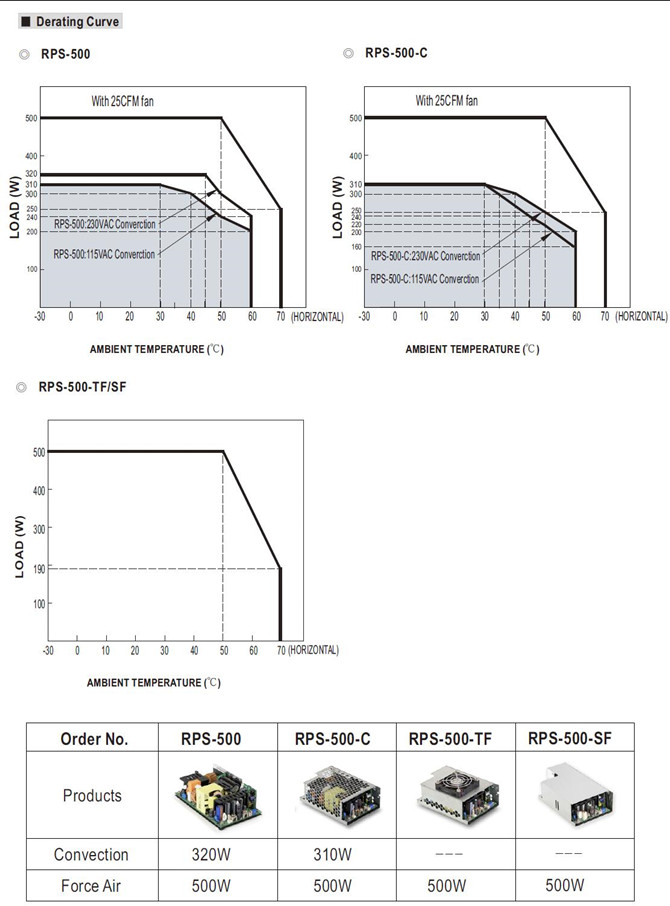

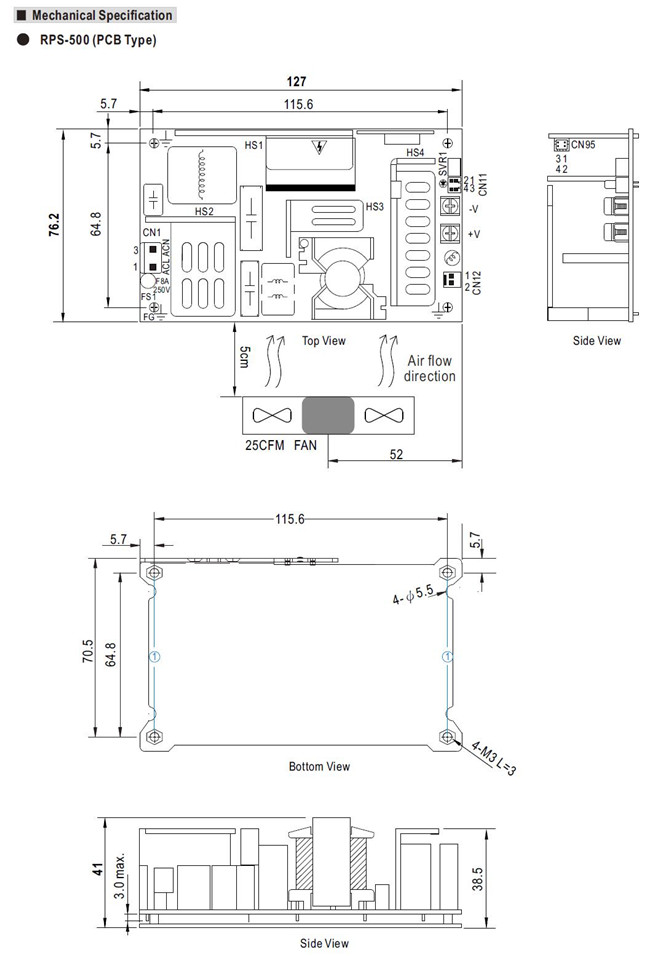

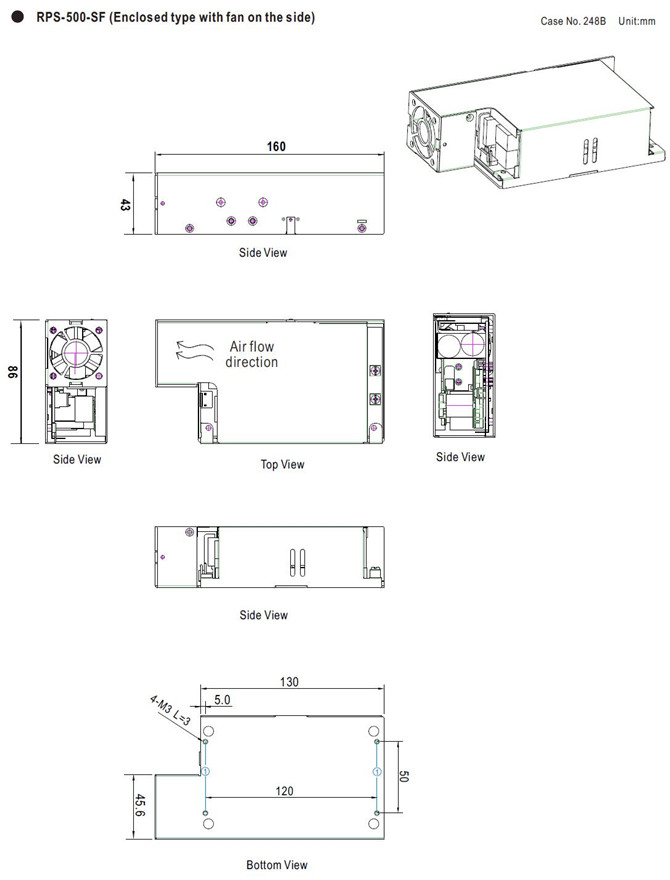

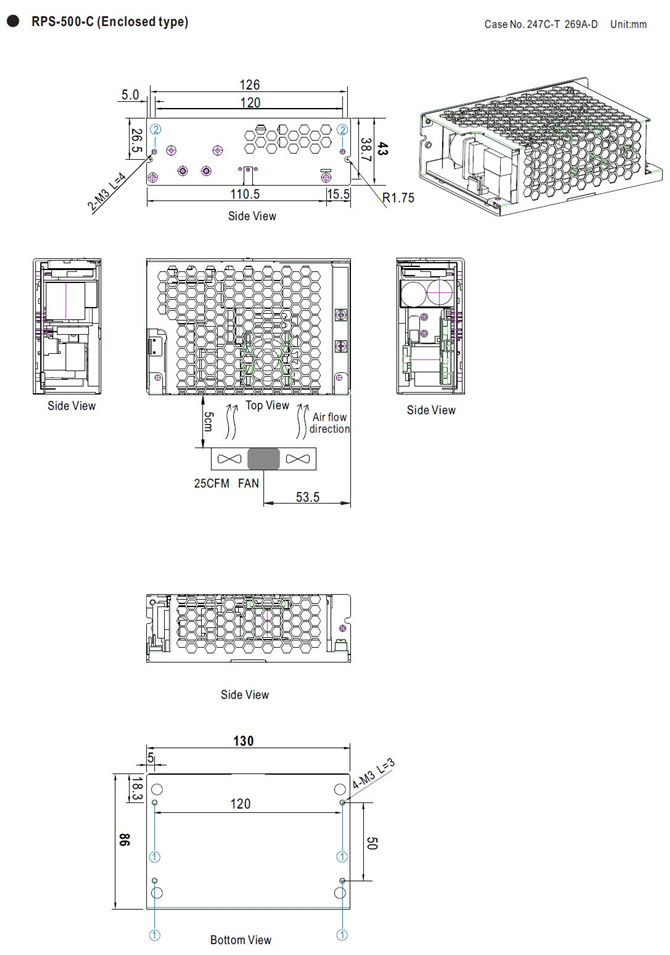

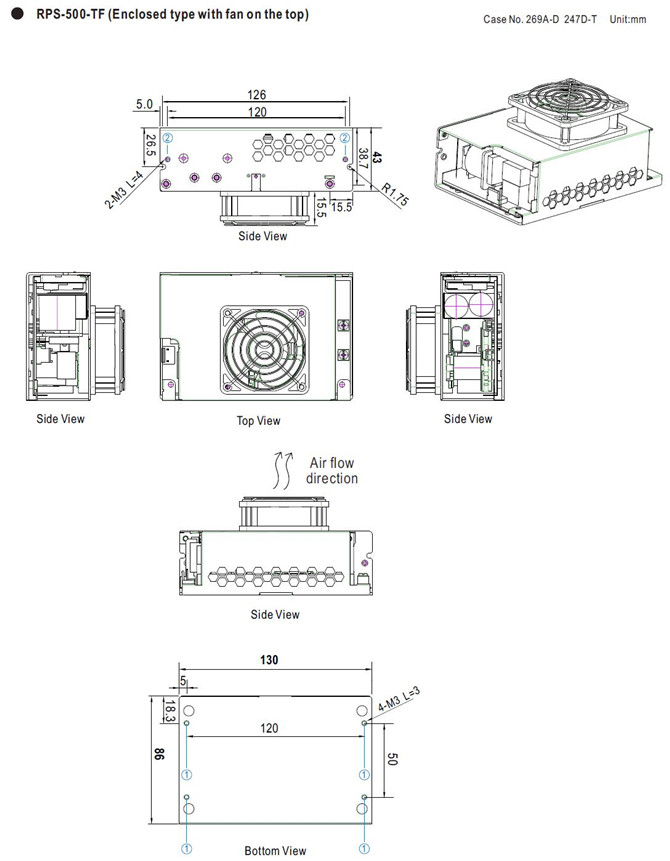

Meanwell RPS-500 Series Mechanical Diagram
