RPS-500-18
96.26
Details

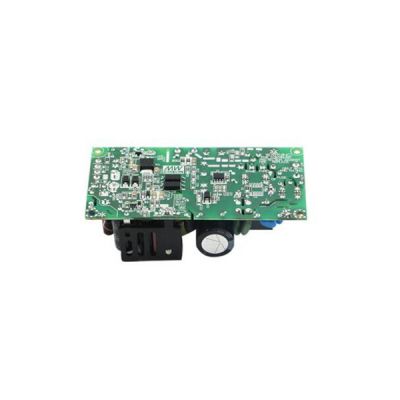

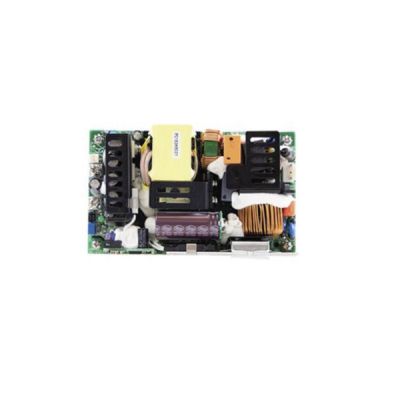

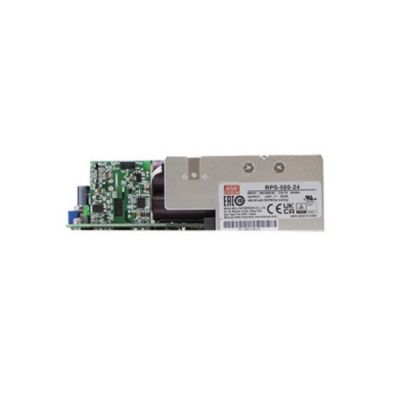

Meanwell RPS-500-18 is a 500W highly reliable green PCB type medical power supply with 18V27.8A17.8A27.8A17.2A 27.8A500.4W 320.4W500.4W309.6W500.4W550W200mVp-p17.1-18.9V. The item is designed with high power density on 5" by 3" footprint and also 80~264VAC input. Moreover, RPS-500-18 features the high working efficiency up to 94%, extremely low no load power consumption less than 0.5W and operating altitude up to 4000 meters. Therefore, RPS-500-18 (blank type only) can be applied for both ClassⅠ(with FG) or ClassⅡ(no FG) system. As extremely low leakage current less than 320uA and 320W convection, 500W force air. The unit meets the international medical regulations(2*MOPP) and EMC BS EN/EN55011. Moreover, RPS-500-18 is equipped with the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Additionally, it offers the enclosed style models (-C/TF /SF). In light of its long lifespan, high reliability, excellent quality, Meanwell RPS-500-18 is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPS-500-18 Encoding
| RPS | Series Name |
| 500 | Rated Wattage |
| 18 | Output Voltage |
| C | Type |
| Blank | PCB Type |

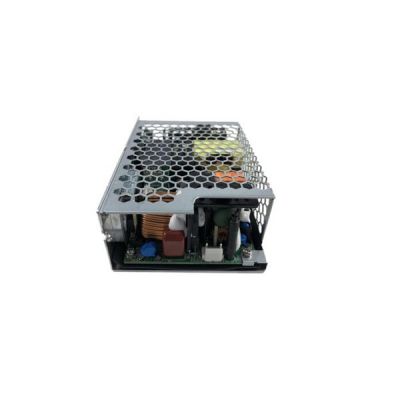

| -C | Enclosed Casing Type |
| -TF | Enclosed Type with fan on the top |
| -SF | Enclosed Type with fan on the side |
Meanwell RPS-500-18 Specifications
| Model | RPS-500-18 | |||
| OUTPUT | DC VOLTAGE | 18V | ||
| RATED CURRENT | Blank | 25CFM | 27.8A | |
| Convection | 17.8A | |||
| -C | 25CFM | 27.8A | ||
| Convection | 17.2A | |||
| -TF/SF | Built-in fan | 27.8A | ||
| RATED POWER | Blank | 25CFM | 500.4W | |
| Convection | 320.4W | |||
| -C | 25CFM | 500.4W | ||
| Convection | 309.6W | |||
| -TF/SF | Built-in fan | 500.4W | ||
| PEAK POWER(3sec.) | 550W | |||
| RIPPLE & NOISE (max.) | 200mVp-p | |||
| VOLTAGE ADJ. RANGE (main output) | 17.1-18.9V | |||
| VOLTAGE TOL ERANCE | ±3.0% | |||
| LINE REGULATION | ±0.5% | |||
| LOAD REGUL .ATION | ±1.0% | |||
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 10ms/230VAC 10ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | |||
| EFFICIENCY (Typ.) | 92.50% | |||
| AC CURRENT (Typ.) | 5.8A/115VAC 2.9A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 40A/115VAC 80A/230VAC | |||
| LEAKAGE CURRENT | Earth leakage current <220 A/264VAC 50Hz , Touch current < 100 A/264VAC | |||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 19.8-23.4V | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | 5V STANDBY | 5Vsb : 5V@0.6A without fan, 1A with fan 25CFM Tolerance ±2%, ripple : 120mVp-p(max.) | ||
| 12V FAN SUPPLY | 12V@0.5A for driving a fan; Tolerance -15%~+10% at main output 20% rated current (20.5CFM) | |||
| FAN CONTROL | Fan on by 20% load min. (For RPS-400-xxTF/SF) | |||
| PS-ON INPUT SIGNAL | Power on: PS-ON="Hi"or">2~5V";Power off: PS-ON="Low"or"<0~0.5V" | |||
| POWER GOOD/POWER FAIL | 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ;The TTL signal goes low at least 1ms before Vo below 90% of rated value | |||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP. | -40 ~ +85℃ | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| OPERATING ALTITUDE | 4000 meters | |||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 (By request) |
||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | |||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3 | |||
| OTHERS | MTBF | 1132.3K hrs min. Telcordia SR-332 (Bellcore) ; 144.2K hrs min. MIL-HDBK-217F (25℃) | ||
Meanwell RPS-500-18 Features
l 5"x3" compact size
l 3 years warranty
l High efficiency up to 94%
l LED indicator for power on
l 320W convection, 500W force air
l 550W peak power (3sec.)
l Operating altitude up to 4000 meters
l EMI for both ClassⅠ& ClassⅡconfiguration
l -30~+70℃ wide range operating temperature
l No load power consumption<O .5W by PS_ON control
l Protections: Short circuit/Overload/Over voltage/Over temperature
l 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell RPS-500-18 Applications
l Oral irrigator
l Electric bed
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
l Pump machine
Meanwell RPS-500-18 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
