RPS-45-7.5
12.59
Details

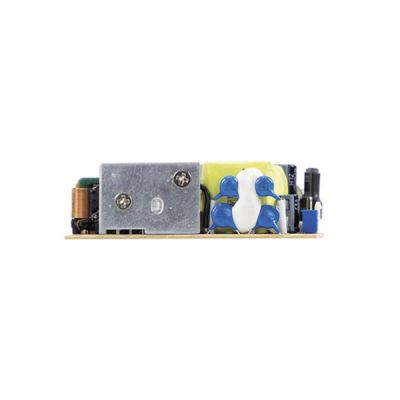

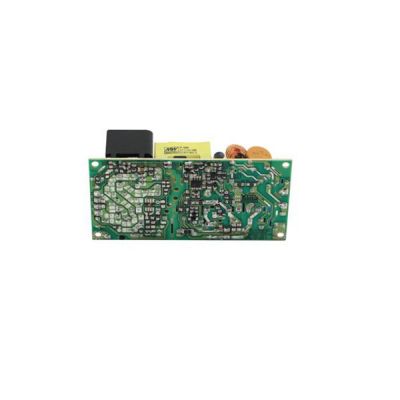

Meanwell RPS-45-7.5 is a 45W highly reliable green PCB type medical power supply with 7.5V5.4A0-5.95A40.5W44.6W80mVp-p. It is designed with high power density on 3*2 footprint, and 80~264VAC input. And the item also highlights with the working efficiency up to 91%, extremely low no load power consumption less than 0.1W and operating altitude up to 4000 meters. So it could be applied fоr СlаѕѕⅡ(nо FG) ѕуѕtеm. Besides them, thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 100 uA, and conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011. In light of its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-45-7.5 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-45-7.5 Encoding
| RPS | Series Name |
| 45 | Rated Wattage |
| 7.5 | Output Voltage |
Meanwell RPS-45-7.5 Specifications
| Model | RPS-45-7.5 | |
| OUTPUT | DC VOLTAGE | 7.5V |
| RATED CURRENT | 5.4A | |
| CURRENT RANGE | 0-5.95A | |
| RATED POWER | 40.5W | |
| PEAK LOAD(10sec.) | 44.6W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±2.0% | |
| SETUP, RISE TIME | 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 30ms / 230VAC 16ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT (Typ.) | 1.2A / 115VAC 1A / 230VAC | |
| INRUSH CURRENT(Typ.) | СOLD STAR 30A/115VAC 60A/230VAC | |
| LEAKAGE CURRENT | Touch current< 100 A/264VAC | |
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 8.6-11.3V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 4000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004,UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved;Design refer to BS EN/EN60335-1 |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 726.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 76.2*50.8*24mm or 3" * 2" *0.945" inch | |
| PACKING | 0.11Kg; 120pcs/14.2Kg/0.94CUFT | |
Meanwell RPS-45-7.5 Features
l 3"x2"compact size
l 3 years warranty
l Lifetime>50K hours
l Cooling by free air convection
l EMI class B for classⅡconfiguration
l No load power consumption<0.1W
l Extremely low leakage current
l Protections: Short circuit /Overload/Over voltage
l Operating altitude up to 4000 meters
l Suitable for BF application with appropriate system consideration
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell RPS-45-7.5 Applications
l Oral irrigator
l Hemodialysis machine
l Sleep apnea devices
l Medical computer monitors
Meanwell RPS-45-7.5 Mechanical Diagram
