RPS-400
65.14
Details

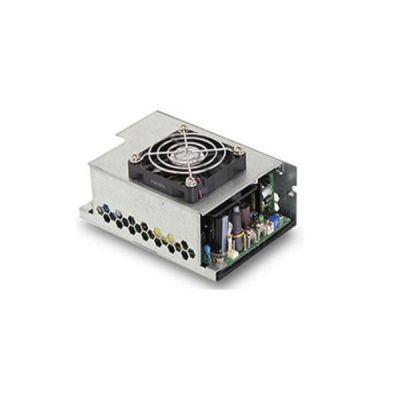

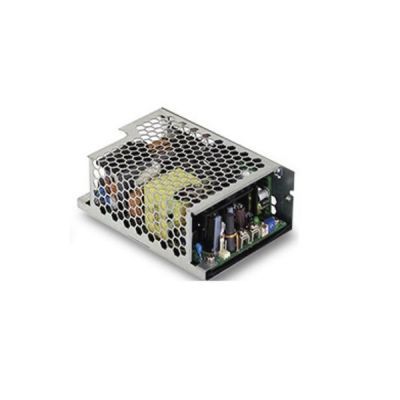

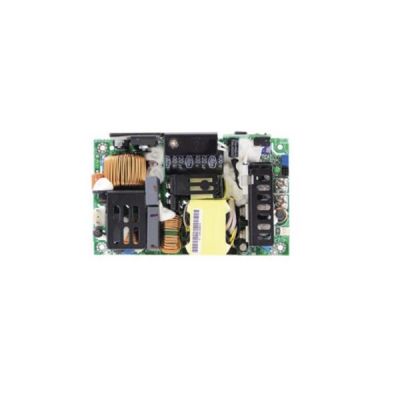

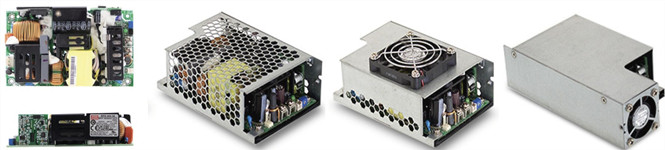

Meanwell RPS-400 Series is a 400W highly reliable green PCB type medical power supply. The entire series is designed with high power density on 5" by 3" footprint. At the same time, it also accepts 80~264VAC input and offers various output voltages between 12V and 48V. Moreover, the series features the high working efficiency up to 94%, extremely low no load power consumption down below 0.5W and operating altitude up to 4000 meters. Therefore, RPS-400 (blank type only) is able to be used for both ClassⅠ(with FG) or Class Ⅱ (no FG) system design. As per extremely low leakage current less than 160uA and 250W convection, 400W force air, it conforms to international medical regulations(2*MOPP) and EMC BS EN/EN55011. Apart from them, RPS-400 provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Additionally, RP S-400 series offers the enclosed style models (-C/TF/SF). Considering its long lifespan, high reliability, excellent quality, Meanwell RPS-400 Series is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPS-400 Series Encoding
| RPS | Series Name |
| 400 | Rated Wattage |
| 12 | Output Voltage |
| C | Type |
| Blank | PCB Type |
| C | Enclosed Casing Type |
| TF | Enclosed Type with fan on the top |
| SF | Enclosed Type with fan on the side |
Meanwell RPS-400 Series Model Specifications
| Model | RPS-400-12 | RPS-400-15 | RPS-400-18 | RPS-400-24 | RPS-400-27 | RPS-400-36 | RPS-400-48 | ||
| OUTPUT | DC VOLTAGE | 12V | 15V | 18V | 24V | 27V | 36V | 48V | |
| CURRENT | 25CFM | 33.3A | 26.7A | 22.3A | 16.7A | 14.9A | 11.2A | 8.4A | |
| Convection | 20.8A | 16.7A | 13.9A | 10.5A | 9.3A | 7A | 5.3A | ||
| RATED POWER | 25CFM | 399.6W | 400.5W | 401.4W | 400.8W | 402.3W | 403.2W | 403.2W | |
| Convection | 249.6W | 250.5W | 250.2W | 252W | 251.1W | 252W | 254.4W | ||
| RIPPLE & NOISE (max.) | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | ||
| VOLTAGE ADJ. RANGE | 11.4-12.6V | 14.3-15.8V | 17.1-18.9V | 22.8-25.2V | 25.6-28.4V | 34.2-37.8V | 45.6-50.4V | ||
| VOLTAGE TOL ERANCE | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load | ||||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||||||||
| EFFICIENCY (Typ.) | 91.50% | 92.00% | 93.00% | 93.00% | 93.50% | 94.00% | 94.00% | ||
| AC CURRENT (Typ.) | 4.2A/115VAC 2.1A/230VAC | ||||||||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | ||||||||
| LEAKAGE CURRENT | Earth leakage current <200 A/264VAC 50Hz , Touch current < 70 A/264VAC | ||||||||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 13.2-15.6V | 16.5-19.5V | 19.8-23.4V | 26.4-31.2V | 29.7-35.1V | 39.6-46.8V | 52.8-62.4V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
| FUNCTION | 5V STANDBY | 5Vsb : 5V@0.6A without fan, 1A with fan 25CFM Tolerance ±2%, ripple : 120mVp-p(max.) | |||||||
| FAN SUPPLY | 12V@0.5A for driving a fan; Tolerance -15%~+10% at main output 20% rated current (20.5CFM) | ||||||||
| FAN CONTROL | Fan on by 20% load min. (For RPS-400-xxTF/SF) | ||||||||
| PS-ON INPUT SIGNAL | Power on: PS-ON="Hi"or">2~5V";Power off: PS-ON="Low"or"<0~0.5V" | ||||||||
| POWER GOOD/POWER FAIL | 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ;The TTL signal goes low at least 1ms before Vo below 90% of rated value | ||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||
| OPERATING ALTITUDE | 4000 meters | ||||||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1,EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version),CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved;Design refer to BS EN/EN60335-1 | |||||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | |||||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | |||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | |||||||
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3 | ||||||||
| Parameter | Standard | Test Level | |||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) | |||||||
| Table 9, 9~28V/m( 385MHz~5.78GHz ) | |||||||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | |||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG; 2KV/Line-Line | |||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods | |||||||
| 100% interruptions 250 periods | |||||||||
| OTHERS | MTBF | 1393.3K hrs min. Telcordia SR-332 (Bellcore) ; 194.1K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | Type | RPS-400 | RPS-400-C | RPS-400-TF | RPS-400-SF | ||||
| L*W*H | 127*76.2*35mm | 130*86*43mm | 130*86*66.5mm | 160*86*43mm | |||||
| 5*3*1.37 Inch | 5.11*3.39*1.69Inch | 5.11*3.39*2.62Inch | 6.3*3.39*1.69Inch | ||||||
| PACKING | P.W. QTY G.W. M'MENT | 0.3Kg36Pcs15Kg0.96CUFT | 0.51Kg24Pcs13.2Kg0.77CUFT | 0.58Kg24Pcs14.9Kg0.86CUFT | 0.64Kg24Pcs16.4Kg0.91CUFT | ||||
Meanwell RPS-400 Series Features
l 5"x3" compact size
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
l Suitable for BF application with appropriate system configuration
l 250W convection, 400W force air
l EMI Class B for ClassⅠ& Class A for ClassⅡconfiguration
l No load power consumption<0.5W by PS-ON control
l 5Vdc standby output, 12Vdc fan supply, Power Good Power F ail and remote sense
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Operating altitude up to 4000 meters
l 3 years warranty
Meanwell RPS-400 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
l Pump machine
l Electric bed

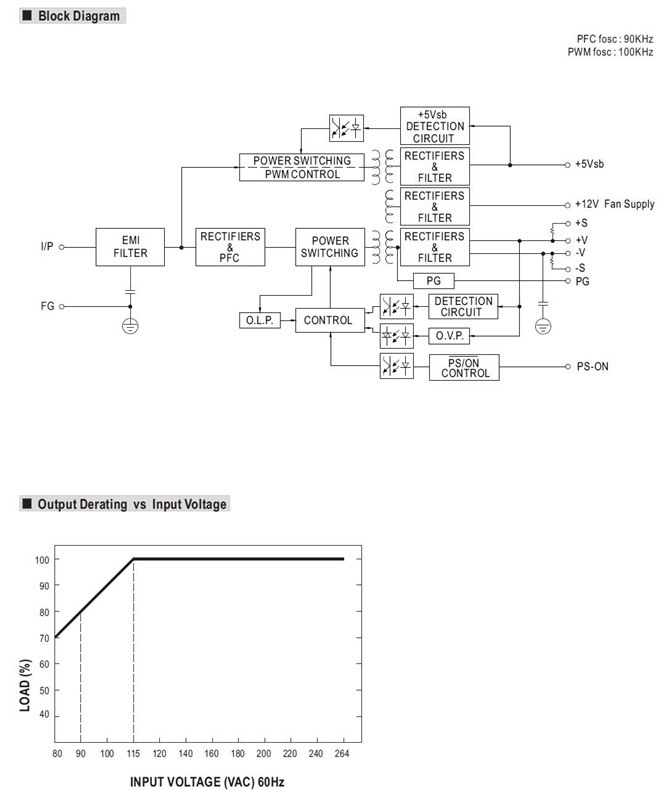

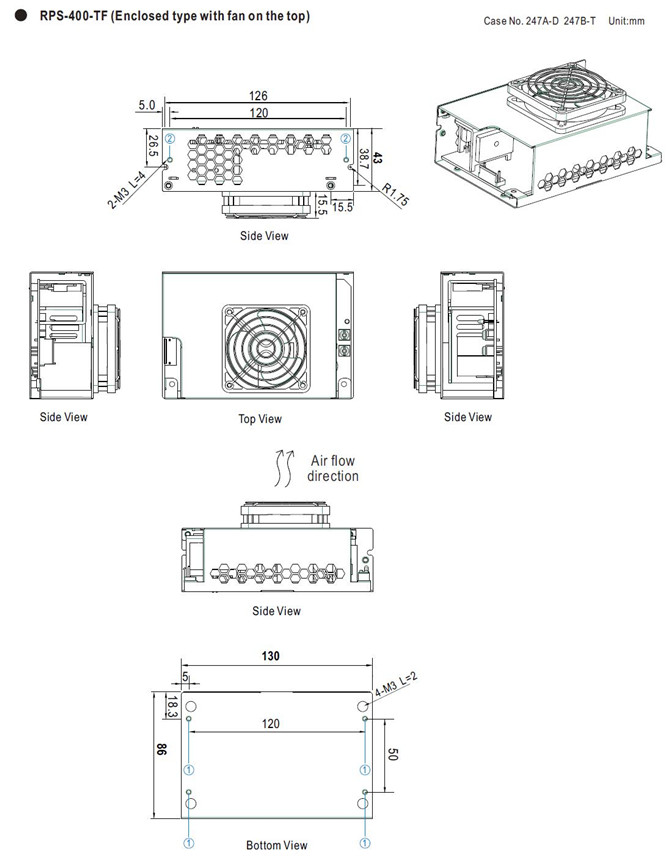

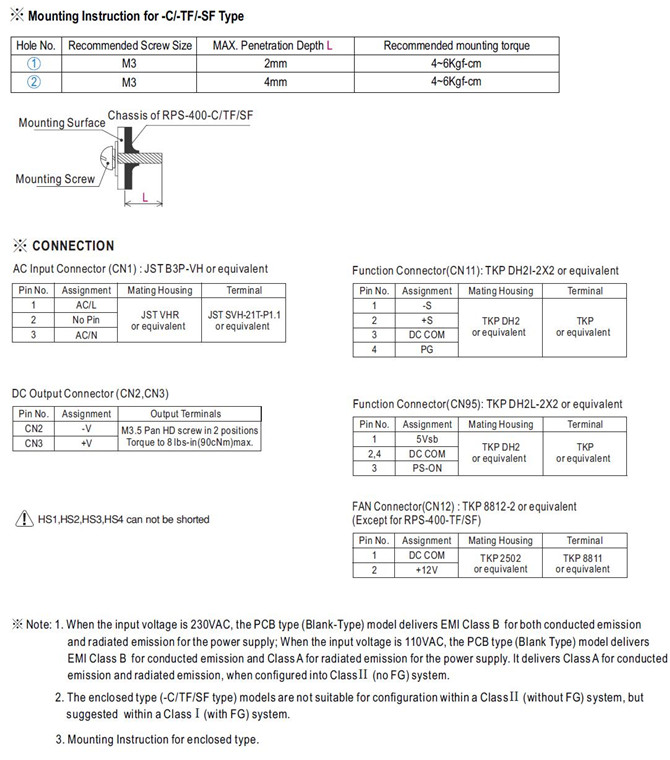

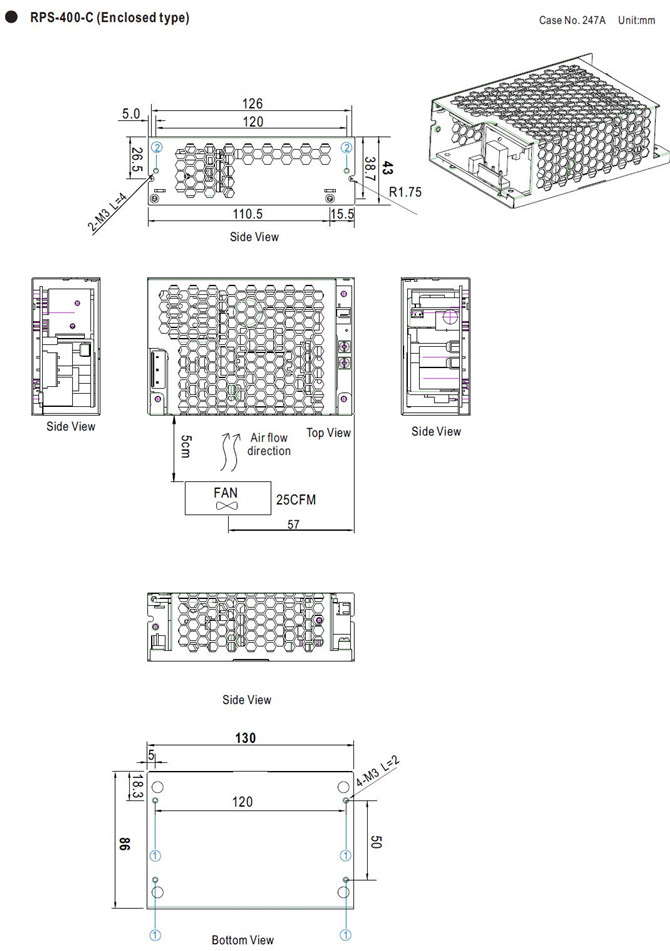

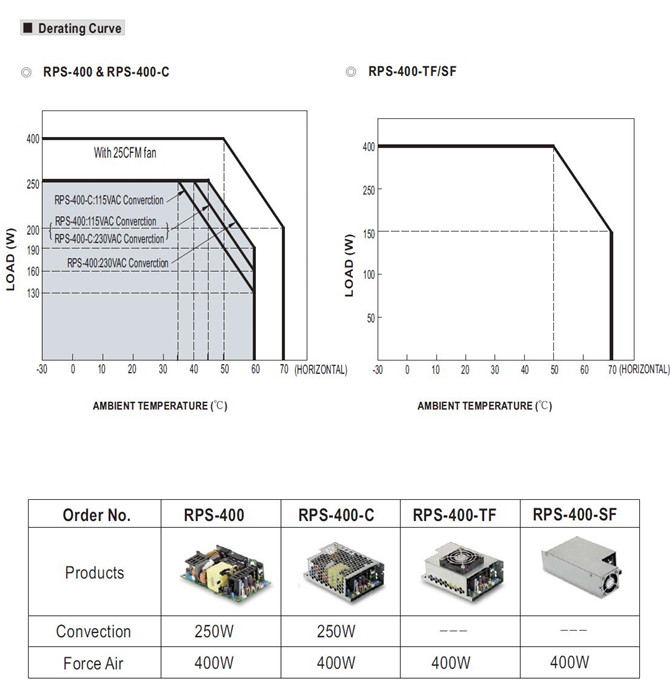

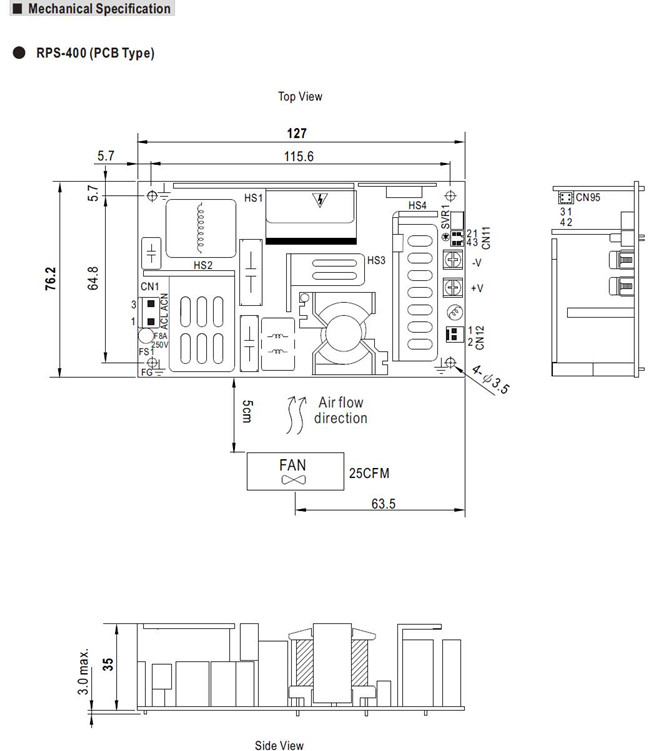

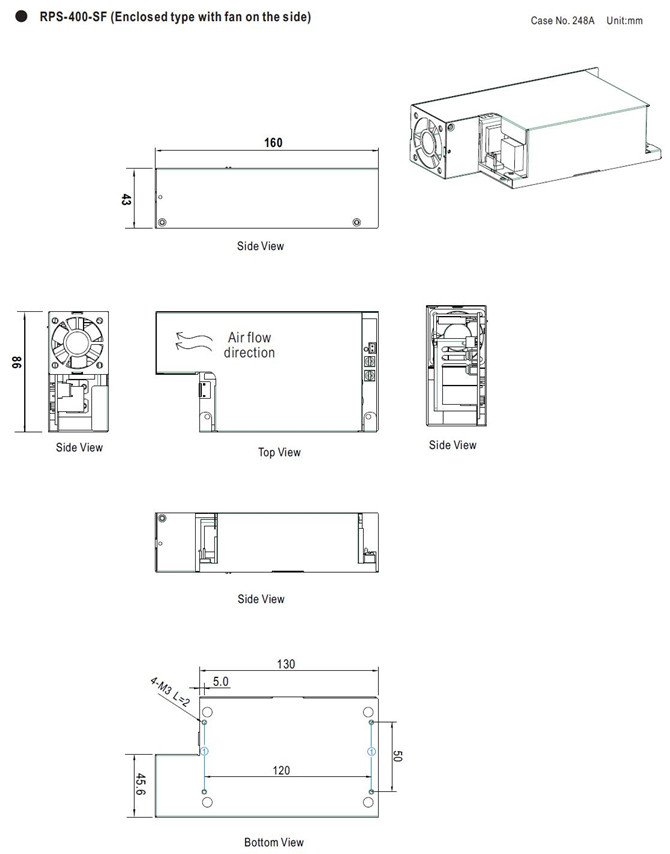

Meanwell RPS-400 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
