RPS-400-24
67.23
Details

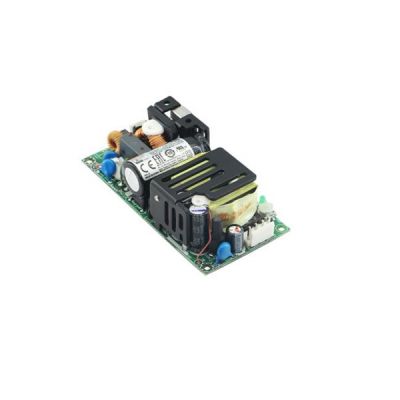

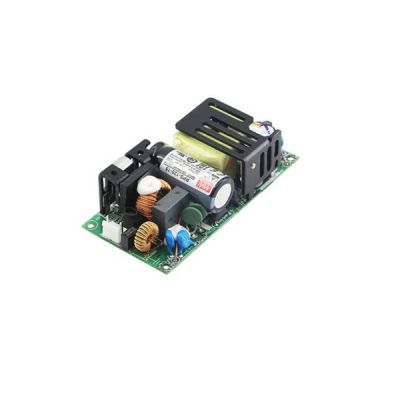

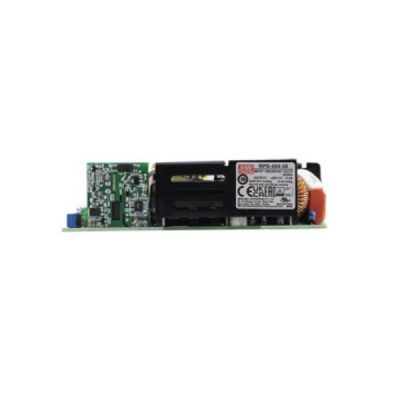

Meanwell RPS-400-24 is a 400W highly reliable green PCB type medical power supply with 24V16.7A10.5A400.8W252W150mVp-p22.8-25.2V. The unit is designed with high power density on 5" by 3" footprint, and accepts 80~264VAC input. Apart from them, it highlights the working efficiency reaching up to 94%, extremely low no load power consumption less than 0.5W and operating altitude up to 4000 meters. Therefore, RPS-400-24 (blank type only) could be applied for both ClassⅠ(with FG) or Class Ⅱ (no FG) system. As per extremely low leakage current less than 160uA and 250W convection, 400W force air, it satisfies the international medical regulations (2*MOPP) and EMC BS EN/EN55011. In addition to them, RPS-400-24 is equipped with the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Moreover, RP S-400-24 has the enclosed style models (-C/TF/SF). In view of its long lifespan, high reliability, excellent quality, Meanwell RPS-400-24 is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPS-400-24 Encoding
| RPS | Series Name |
| 400 | Rated Wattage |
| 24 | Output Voltage |
| C | Type |
| Blank | PCB Type |

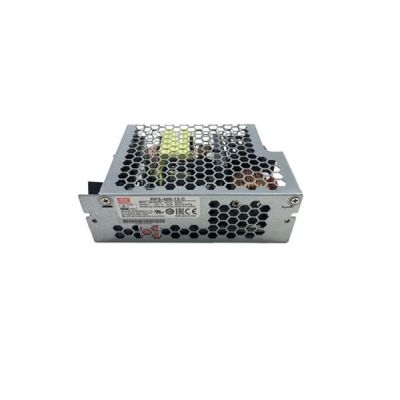

| C | Enclosed Casing Type |
| TF | Enclosed Type with fan on the top |
| SF | Enclosed Type with fan on the side |
Meanwell RPS-400-24 Specifications
| Model | RPS-400-24 | ||
| OUTPUT | DC VOLTAGE | 24V | |
| CURRENT | 25CFM | 16.7A | |
| Convection | 10.5A | ||
| RATED POWER | 25CFM | 400.8W | |
| Convection | 252W | ||
| RIPPLE & NOISE (max.) | 150mVp-p | ||
| VOLTAGE ADJ. RANGE | 22.8-25.2V | ||
| VOLTAGE TOL ERANCE | ±2.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ||
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 93.00% | ||
| AC CURRENT (Typ.) | 4.2A/115VAC 2.1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | ||
| LEAKAGE CURRENT | Earth leakage current <200 A/264VAC 50Hz , Touch current < 70 A/264VAC | ||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 26.4-31.2V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||
| FUNCTION | 5V STANDBY | 5Vsb : 5V@0.6A without fan, 1A with fan 25CFM Tolerance ±2%, ripple : 120mVp-p(max.) | |
| FAN SUPPLY | 12V@0.5A for driving a fan; Tolerance -15%~+10% at main output 20% rated current (20.5CFM) | ||
| FAN CONTROL | Fan on by 20% load min. (For RPS-400-xxTF/SF) | ||
| PS-ON INPUT SIGNAL | Power on: PS-ON="Hi"or">2~5V";Power off: PS-ON="Low"or"<0~0.5V" | ||
| POWER GOOD/POWER FAIL | 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ;The TTL signal goes low at least 1ms before Vo below 90% of rated value | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| OPERATING ALTITUDE | 4000 meters | ||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1,EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version),CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved;Design refer to BS EN/EN60335-1 | |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3 | ||
Meanwell RPS-400-24 Features
l 5"x3" compact size
l 3 years warranty
l 250W convection, 400W force air
l Operating altitude up to 4000 meters
l EMI Class B for ClassⅠ& Class A for ClassⅡconfiguration
l No load power consumption<0.5W by PS-ON control
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Suitable for BF application with appropriate system configuration
l 5Vdc standby output, 12Vdc fan supply, Power Good Power F ail and remote sense
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
Meanwell RPS-400-24 Applications
l Oral irrigator
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
l Pump machine
l Electric bed
Meanwell RPS-400-24 Mechanical Diagram
